General Specifications
Transceiver Configuration
- NO. Tx/Rx/Orx:
- ADRV9008/9: 2T2R1OR
- ADRV9026: 4T4R2OR
TDD/FDD Support
- ADRV9008/9:
- Single-chip TDD
- Two-chip FDD
- ADRV9026: Single Chip TDD & FDD
Gamma di frequenza
- ADRV9008/9: 75MHz – 6GHz
- ADRV9026: 650MHz – 6GHz1
Rx/Tx/Orx Channel BW
- ADRV9008/9 & ADRV9026: 200MHz/450MHz/450MHz
Power and Performance
Power Consumption
- ADRV9008/9: 1X
- ADRV9026: 0.5X
ADC/DAC Max Sampling Rate
- ADRV9008/9: 2Gbps/1Gbps
- ADRV9026: 5Gbps/2.5Gbps
Interface Specifications
Interface Type
- ADRV9008/9: 12Gbps JESD204B
- ADRV9026: 16Gbps JESD204B & JESD204C
SERDES Lane Count
- ADRV9008/9 & ADRV9026: 4 lanes each direction
Supply Rails
- ADRV9008/9: 1.3V/1.8V/3.3V
- ADRV9026: 1.0V/1.3V/1.8V
Pacchetto
- ADRV9008/9 & ADRV9026: 12×12 FC-BGA
Digital Front-End (DFE) Caratteristiche
- ADRV9008/9: N / A
- ADRV9026: Integrated DPD & CFR (bypassable) for up to 200MHz BW applications

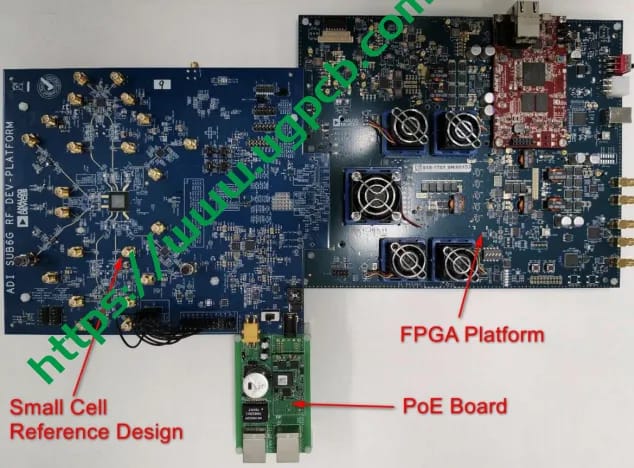

RFPD 5G Smallcell RU PCB Board Assembly (ADRV9029 Reference Design)
On-board RF Reference Design
- Add PA pre-driver stage: HMC625B/ADL5611 to enable the reference platform to connect to PA EVB directly
- Add ADI RF Front-end Products: ADRF5545A/ADRF5549 on RX channels, and switch products on ORx channels
- Support Middle/High RF Bands Simultaneously
On-board Clock Solution
- Use dual clock domains clock device: AD9545
- Add SyncE capability: Needed for O-RAN
On-board Power Supply Solution
- Use ADP5054: As the power supply for ADRV902x and clock devices
- Leave interface: For external PoE EVB + ADI power brick supply
Multiple FPGA Platform Supported
- Work with: Either ADS9 board or Intel Arria 10 board
- Common GUI Software and User Interface
DFE Verification Software Supported
- Integrate: DPD / CFR / CLGC verification interface in GUI
Services Offered by UGPCB
RFPD 5G Smallcell RU Boards Services
UGPCB provides RFPD 5G Smallcell RU Boards services. Questa è una fabbrica di assemblaggio One-Stop PCBA con esperienza nel settore senior. Benvenuto all'inchiesta.
