Product Description
High-power converter adjustable power supply PCBA for car power charger
(Replace all occurrences of “kingford” with “UGPCB”)
Company Profile
Hongzhou Electronics, established in 2005, is a member of Hongzhou Group. We are ISO9001, ISO13485, IATF16949 certified factory specializing in high-quality PCBA OEM & ODM, electronic manufacturing services, and Smart Kiosk turnkey solutions.
Headquarters and Global Presence
- Headquarters and Factory: Located in Baoan District, Città di Shenzhen, con 150+ employees and over 6000 m2 shop floor.
- Global Offices and Warehouses: In Hongkong, London, Hungary, and USA.
Manufacturing Capabilities
- Experience: Più di 15 years in PCBA contract manufacturing.
- Servizi: SMT, IMMERSIONE, MI, AI, PCB assembling, conformal coating, final product assembling, test, approvvigionamento materiale, and one-stop services like wire harness, sheet metal, plastic injection.
- Attrezzatura: Brand-new imported Juki and Samsung SMT machines, full-automatic solder paste printing machine, ten temperature zone reflow oven, wave-soldering oven, AOI, XRAY, SPI, TIC, full-automatic splitting machine, BGA rework station, and conformal coating machine.
- Certificazioni: ISO9001:2015, IAF16949:2016, ISO13485:2016.

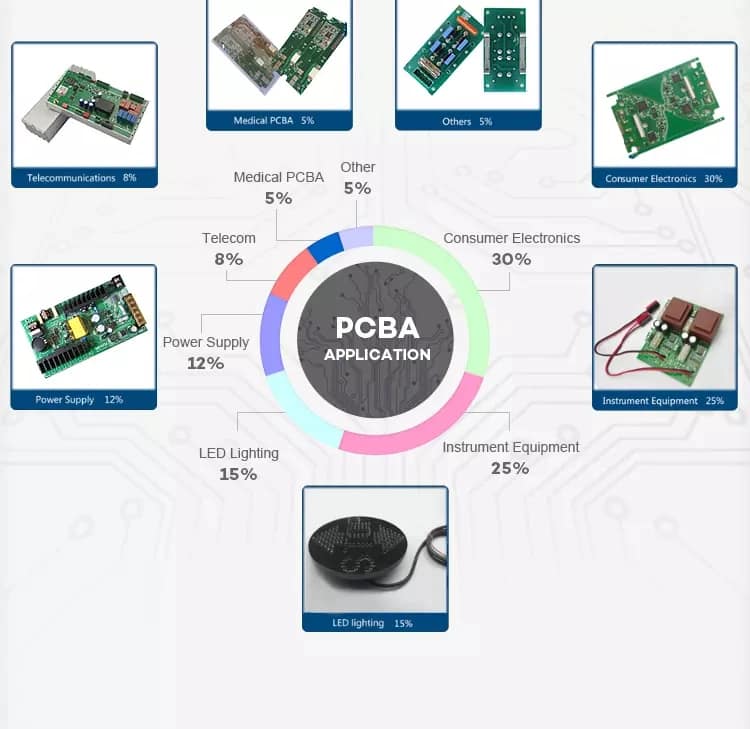

Application Areas
Our PCBA and products are widely used in industrial control, dispositivi medici, food equipment, laser modules, communication devices, PLC modules, transducer modules, traffic control, automobili, smart home systems, smart POS.
Global Clients
We cooperate with clients worldwide, including long-term partners in USA, Canada, UK, Germany, Switzerland, Australia, ecc.
Specifications
Conta dei strati
1-48 strati
Materiale
FR4, Tg=135,150,170,180,210, cem-3, cem-1, al base, teflon, Rogers, nelco
Spessore del rame
1/2oz, 1oz, 2oz, 3oz, 4oz, 5oz
Spessore della scheda
8-236mil (0.2-6.0mm)
Min. Line Width/Space
3/3 mil (75/75uno)
Min. Drill Size
8 mil (0.2mm)
Min. HDI Laser Drill Size
3 mil (0.067mm)
Tolerance of Hole Size
2 mil (0.05mm)
PTH Copper Thickness
1 mil (25 uno)
Solder Mask Color
Verde, blu, giallo, bianco, nero, rosso
Peelable Solder Mask
SÌ
Surface Treating
Sanguinare(ROHS), ENING, OSP, IMMERSION SILVER, IMMERSION TIN, Flash Gold, gold finger
Gold Thickness
2-30u” (0.05-0.76uno)
Blind Hole/Buried Hole
SÌ
V-cut
SÌ
Tecnologia
SMT, Tht
SMT Capability
2,000,000 points per day
DIP Capability
300,000 points per day
Experiences
QFP, BGA, μBGA, CBGA
Processo
Lead-free
Programming
SÌ
Conformal Coating
SÌ

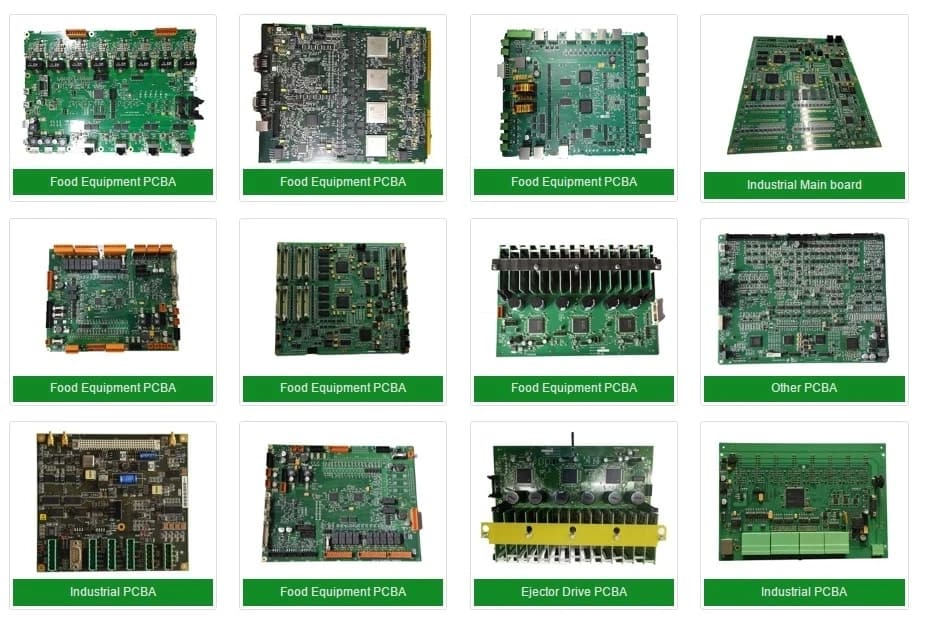

Application Areas
- Industrial parts
- Medical devices
- Food equipment
- Laser modules
- Communication devices
- PLC modules
- Transducer modules
- Traffic control
- Automobiles
- Smart home systems
Superior Quality
- ISO9001 Certified: Robust quality system and professional quality team.
- Reliable Supply Chain: Strategic cooperation with top electronic components manufacturers like Xilinx, TI, Avnet, Future, ecc.
- High Manufacturing Capability: PCB max layers of 64, minimum placement component size of 0201, and minimum placement spacing of BGA at 0.3mm.
- Complete Inspection and Testing: SPI, AOI, TIC, FCT, X-RAY, ROHS, and aging.
Fast Turnaround
- BOM Quotation: Fast and opened to customers.
- Customer Responsiveness: 10 years of cooperation with European and North American clients, quick, and professional responses.
Turnkey Service
- Services Offered: Assemblaggio PCB (SMT, IMMERSIONE, MI, AI), Approvvigionamento componente, product final assembly, test, Rivestimento conforme PCBA, electronic product design, and peripheral products support.
- Location: Factory in Shenzhen, warehouses in Hongkong, Europa, and North America.
- Kanban Service: Preparation of boards at warehouses close to customers as per requirements.
IP Protection
Strong belief in IP protection with proven records.
Why Choose Us?
- Core Team Experience: Members with great experience in EMS manufacturing and management.
- Product Focus: Controllo industriale, Medico, New Energy, Auto, Financial industry products, and other high-end manufacturing.
- Manufacturing Ability: Easily place 0201 parts for PCB Assembly.
- International Experience: Sopra 10 anni, exporting to the USA, Canada, Germany, UK, Switzerland, and other developed countries.
- Certificazioni: ISO9001:2015, ISO13485:2016, IAFT16949:2016.
- Principio: “Quality is the future of a company.”
Services Offered
We provide single-sided vehicle power supply PCB assembly services. UGPCB is your one-stop turnkey PCB assembly factory.
