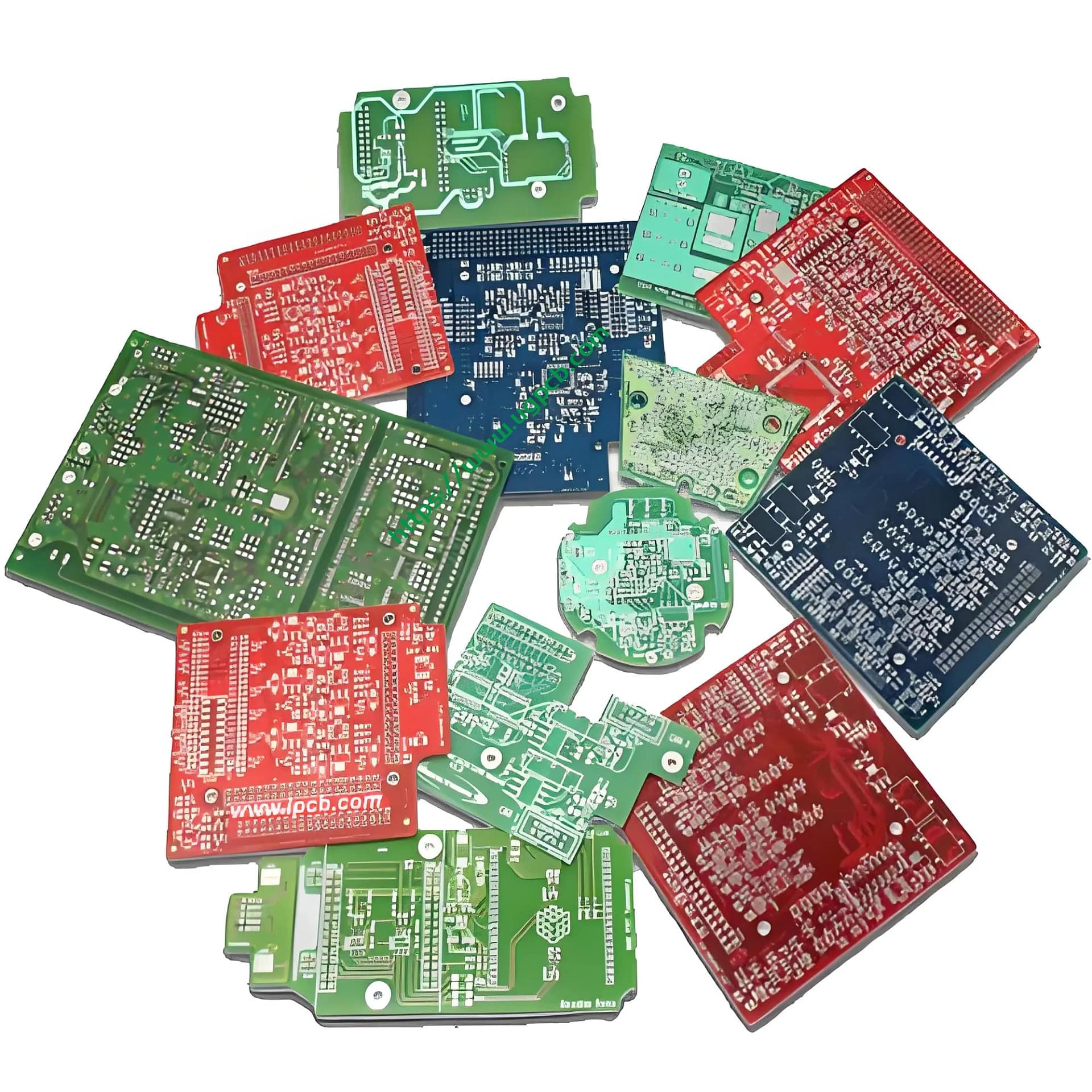

Introduction to Different Solder Mask Colors Overview
Different solder mask colors are essential components in the manufacturing of Plăci de circuite tipărite (PCB -uri), playing a crucial role in protecting circuits and enhancing the aesthetic appeal of electronic devices. Available in a variety of materials, colors, and configurations, these solder masks cater to diverse application needs, ensuring reliable performance and durability.
Compoziție materială
The Different solder mask colors are primarily made from two materials: FR-4 and Teflon.
- FR-4: A flame-retardant epoxy glass cloth laminate, known for its high mechanical strength, electrical insulation, and thermal resistance. It’s ideal for applications requiring high reliability and durability.
- Teflon: A polytetrafluoroethylene (Ptfe) based material, renowned for its excellent chemical resistance, non-stick properties, and wide operating temperature range. Teflon is often used in specialized applications demanding high performance and corrosion resistance.
Caracteristici de performanță
These solder masks offer a range of performance characteristics tailored to meet different requirements:
- Configurare strat: Available in single-layer to PCB multistrat configurations, enabling flexible design options for various electronic devices.
- Color Options: Multiple colors ensure aesthetic versatility, allowing manufacturers to match product designs with specific branding or aesthetic preferences.
- Grosime terminată: Variind de la 0.1 to 6.0mm, offering flexibility in accommodating various PCB thicknesses and assembly processes.
- Grosime de cupru: Din 0.5 to 6OZ, ensuring compatibility with different current carrying capacities and design requirements.
- Tratament de suprafață: Options include Gold and OSP (Organic Solderability Preservatives), providing excellent solderability and corrosion resistance.
Structural Design
The structural design of Different solder mask colors is optimized for functionality and durability:
- Min Trace and Space: With minimum trace and space widths of 1.5mil-4mil, these masks support high-density circuit layouts, essential for modern electronic devices.
- Durabilitate: The materials and processing techniques ensure the masks can withstand soldering temperatures and environmental stresses, maintaining integrity and protecting circuits over time.
Proces de producție
The production of Different solder mask colors involves several precise steps:
- PCB Preparation: The base PCB material is prepared according to the specified layer configuration, thickness, and copper weight.
- Aplicație de mască de lipit: The chosen solder mask material (FR-4 or Teflon) is applied evenly over the PCB surface, either through screen printing, curtain coating, or dipping processes.
- Drying and Curing: The applied mask is dried and cured under controlled conditions to ensure adhesion and durability.
- Inspection and Testing: Quality control checks ensure the mask meets specifications, including visual inspections, thickness measurements, and solderability tests.
- Tratament de suprafață: Final surface treatments like Gold plating or OSP application are carried out to enhance solderability and corrosion resistance.
Scenarii de aplicație
Different solder mask colors find extensive applications across various electronic products:
- Electronica de consum: From smartphones and tablets to laptops and wearables, these masks protect circuits and enhance the aesthetic appeal of consumer devices.
- Industrial Electronics: In automation systems, PLCs, and industrial controllers, the masks ensure reliable performance and longevity in harsh environments.
- Electronică auto: In advanced driver assistance systems (ADAS), infotainment systems, and other automotive electronics, the masks provide essential circuit protection and aesthetic uniformity.
- Telecomunicații: In routers, modems, and other telecommunications equipment, the masks support high-density circuit layouts and ensure signal integrity.
Different solder mask colors offer a versatile and reliable solution for protecting and enhancing the performance of electronic circuits, catering to the diverse needs of modern electronic devices.
