Introduction to UGPCB Micro PCB Solutions

UGPCB specializes in manufacturing Micro PCB şi Ultra Small Size PCB produse, designed for high-density, compact electronic applications. These PCB -uri feature a 0.6mm finished thickness, 4-layer construction, and precise 6mil trace/space capabilities, making them ideal for advanced PCB and PCB projects in industries like IoT, dispozitive medicale, și electronice de consum. With gold-plated surfaces and FR-4 material, UGPCB ensures reliability and performance for demanding environments.

What Are Micro PCBs and Ultra Small Size PCBs?

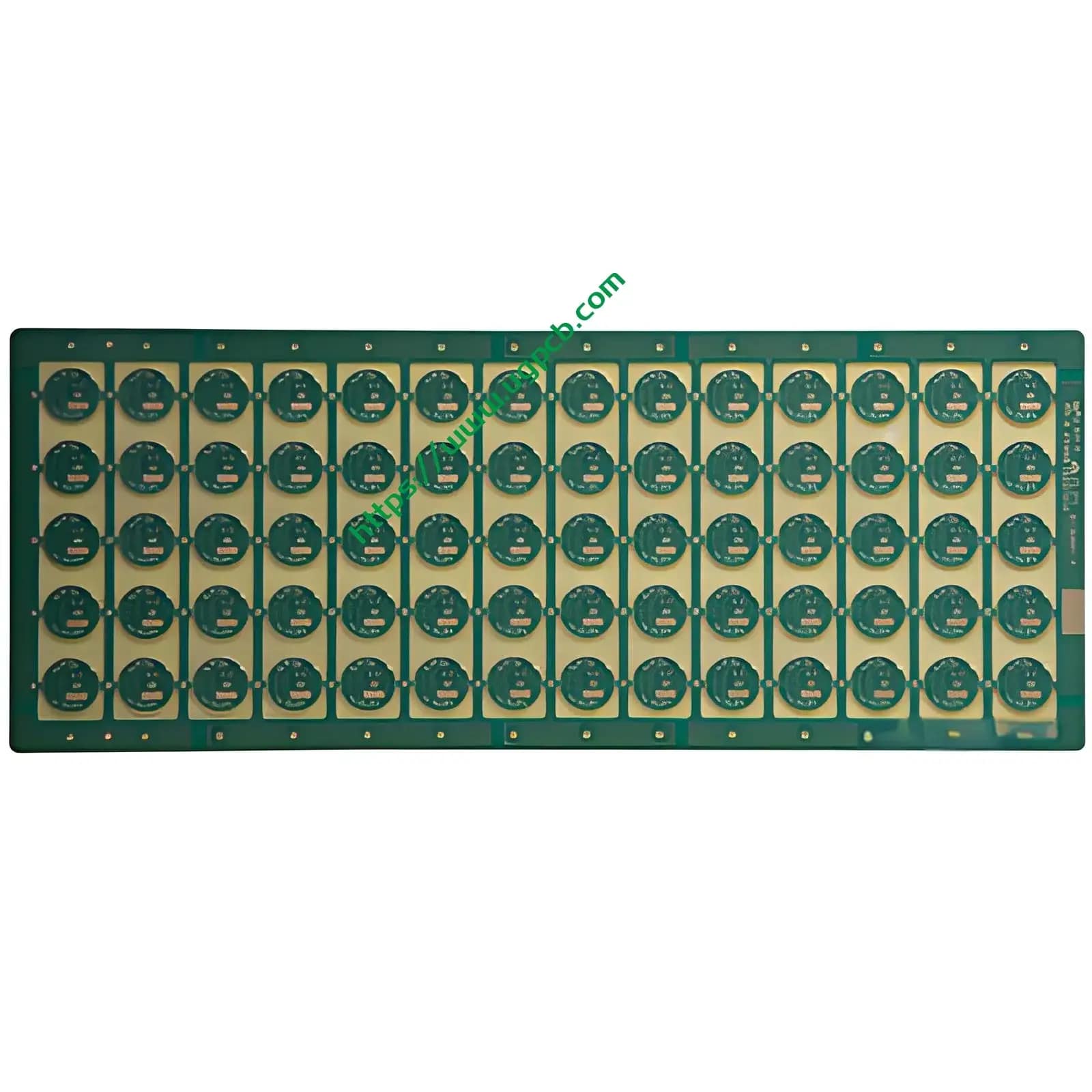

Micro PCBs şi Ultra Small Size PCBs refer to Plăci de circuite tipărite with exceptionally small dimensions, such as UGPCB’s minimum finished board size of 0.5mm x 1.0mm. These boards support high component density and are engineered for applications where space is limited. They are a key component in miniaturized Design PCB şi advanced Ansamblu PCBA, enabling sleeker and more efficient electronic products.

Key Design Considerations for Micro PCBs

When designing Micro PCBs, engineers must account for several factors to ensure functionality and manufacturability:

• Trace and Space Requirements: UGPCB’s minimum trace and space of 6mil (0.15mm) demand precise PCB layout techniques to avoid signal interference.

• Layer Management: The 4-layer structure allows for separated power, ground, and signal layers, optimizing PCB de mare viteză performanţă.

• Tratament de suprafață: Gold-plating with 0.2μm thickness enhances conductivity and corrosion resistance, critical for reliable PCBA processes.

• Selectarea materialelor: FR-4 material provides excellent thermal and mechanical stability, supporting durable Fabricarea PCB-urilor.

How Micro PCBs Work: Basic Principles

Micro PCBs function by interconnecting electronic components through conductive copper traces embedded in insulating layers. In UGPCB’s 4-layer design, signals are routed efficiently to minimize noise and crosstalk, supporting complex PCB circuitry in ultra-small formats. This makes them suitable for low-power PCB applications şi high-density PCBA integration, where precise electrical pathways are essential.

Applications and Uses of Micro PCBs

UGPCB’s Micro PCBs are versatile and used across various sectors:

• Wearable Technology: For fitness trackers and smartwatches requiring compact PCB solutions.

• Internet of Things (Iot): Enabling small sensors and connected devices with efficient PCBA designs.

• Electronică medicală: In implantable devices and diagnostic tools where reliable micro PCB performance is critical.

• Electronica de consum: Powering smartphones, drones, and other portable gadgets with space-saving PCB layouts.

Classification of Micro PCBs

Micro PCBs can be categorized based on their specifications:

• By Size: Ultra small size PCBs (De ex., sub-1mm dimensions) versus standard micro PCBs.

• By Layer Count: Cu o singură față, faţă-verso, or multi-layer (like UGPCB’s 4-layer boards) pentru custom PCB projects.

• Prin cerere: High-frequency, flex-rigid, or standard FR-4 boards tailored for specialized PCBA services.

Materials Used in UGPCB Micro PCBs

UGPCB employs FR-4 material for its Micro PCBs, a flame-retardant epoxy laminate known for:

• High Dielectric Strength: Ideal for insulated PCB designs.

• Thermal Resistance: Withstands soldering temperatures during Ansamblu PCBA.

• Eficiența costurilor: Balances performance and affordability for volume PCB production.

Performance Specifications of UGPCB Micro PCBs

Key performance metrics include:

• Grosime terminată: 0.6mm, supporting slim PCB profiles for tight spaces.

• Grosime de cupru: 1Oz, ensuring adequate current carrying capacity for stable PCB operations.

• Durabilitate: Gold-plating (0.2μm) resists oxidation, enhancing long-term PCBA reliability.

• Operational Range: Suitable for wide-temperature PCB applications, from -50°C to 110°C.

Structural Details of 4-Layer Micro PCBs

UGPCB’s 4-layer Micro PCBs consist of:

• Top and Bottom Layers: For component placement and routing.

• Inner Layers: Dedicated to power and ground planes, reducing EMI in noise-sensitive PCB systems.

• Via Structures: Microvias or through-holes facilitate inter-layer connections, crucial for complex PCBA layouts.

Key Features and Benefits of UGPCB Micro PCBs

• Ultra-Small Size: Permite miniaturized electronics with boards as small as 0.5mm x 1.0mm.

• Precizie înaltă: 6mil trace/space supports detailed PCB artwork şi fine-pitch PCBA components.

• Enhanced Reliability: Gold-plating and FR-4 material ensure robust PCB performance in harsh conditions.

• Cost-Efficiency: Streamlined production processes reduce costs for high-volume PCB orders.

Production Process of Micro PCBs

UGPCB’s manufacturing workflow includes:

1. Design and Fabrication: Using CAD software for PCB layout optimization.

2. Layer Lamination: Bonding FR-4 layers with copper foils.

3. Etching and Drilling: Creating traces and vias with 6mil precision.

4. Tratament de suprafață: Applying gold-plating for corrosion-resistant PCB finishes.

5. Testarea și controlul calității: Ensuring each board meets industry PCB standards pentru error-free PCBA integration.

Common Use Scenarios for Micro PCBs

These PCBs are ideal for:

• Portable Devices: Such as headphones and GPS units, unde lightweight PCB designs are essential.

• Industrial Sensors: For monitoring systems requiring de mare densitate PCB components.

• Electronică auto: In control modules leveraging durable PCBA assemblies.

• Aerospace Systems: Unde reliable micro PCB performance under extreme conditions is mandatory.
