Custom PCB Capability

Why Custom PCBs Are Becoming the Core Engine of Electronics Innovation?

According to MarketsandMarkets 2024 report, the global custom PCB market reached $98.3 billion with an 11.2% CAGR. Choosing UGPCB delivers:

• 37% higher signal integrity (per IPC-2141A)

• 52% improved thermal efficiency (Thermal resistance:

θja = (T_j – T_a)/P

• 29% reduced mass production costs through DFM optimization

UGPCB’s Custom Capability Matrix: Decoding Hybrid High-Frequency Tech Barriers

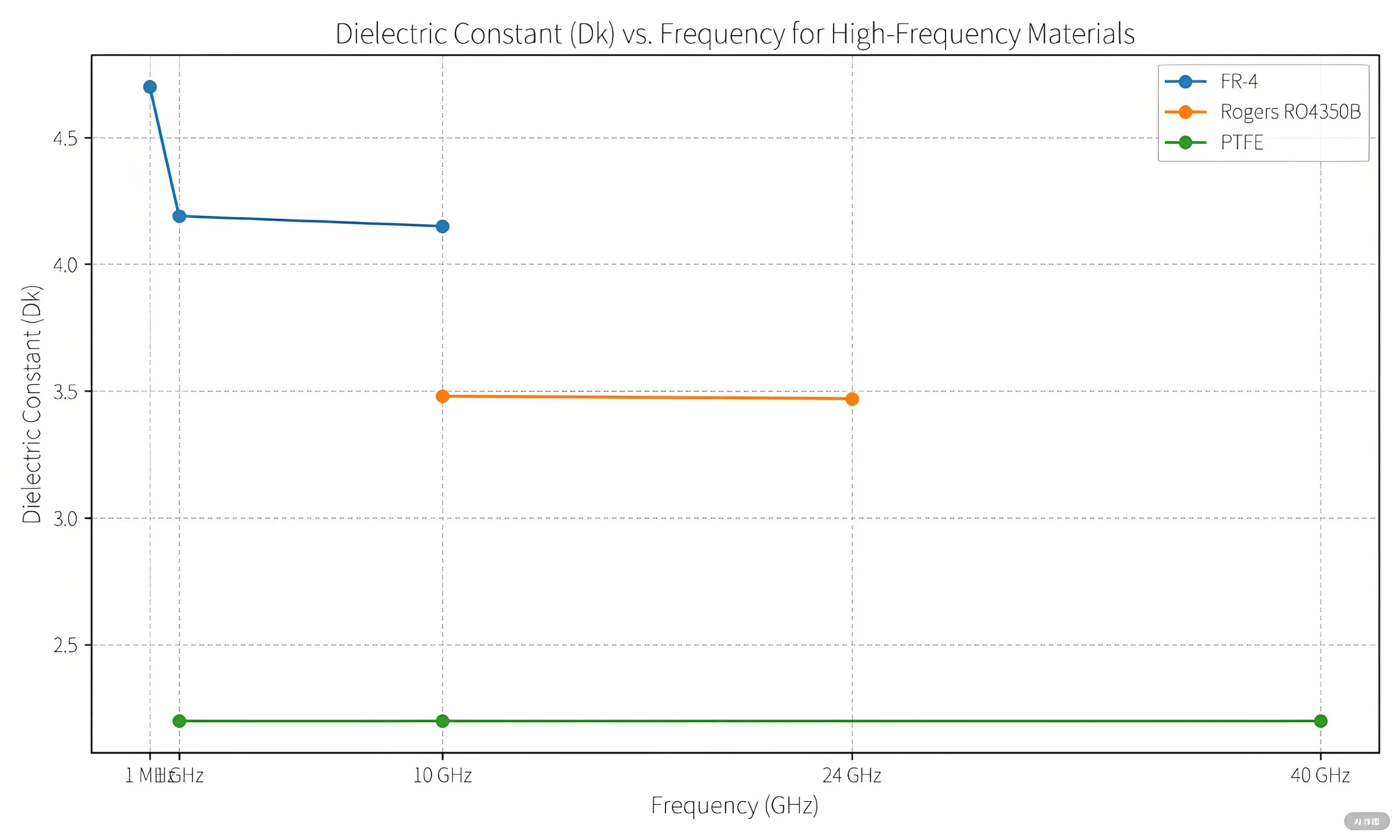

Material Science Breakthrough – Precision Dk Control

Extreme Process Parameters – Redefining Industry Standards

UGPCB’s layer alignment formula:

δ=√(δ1²+δ2²+…+δn²)

Achieves ≤25μm alignment for 32-layer boards, exceeding IPC-A-600G Class 3 (50μm).

Four-Dimensional Custom Design Empowerment

1. Signal Integrity Optimization

Characteristic impedance control:

Z₀=87/√(εr+1.41) ln(5.98H/(0.8W+T))

±3% tolerance for GHz-level signal reflection resolution.

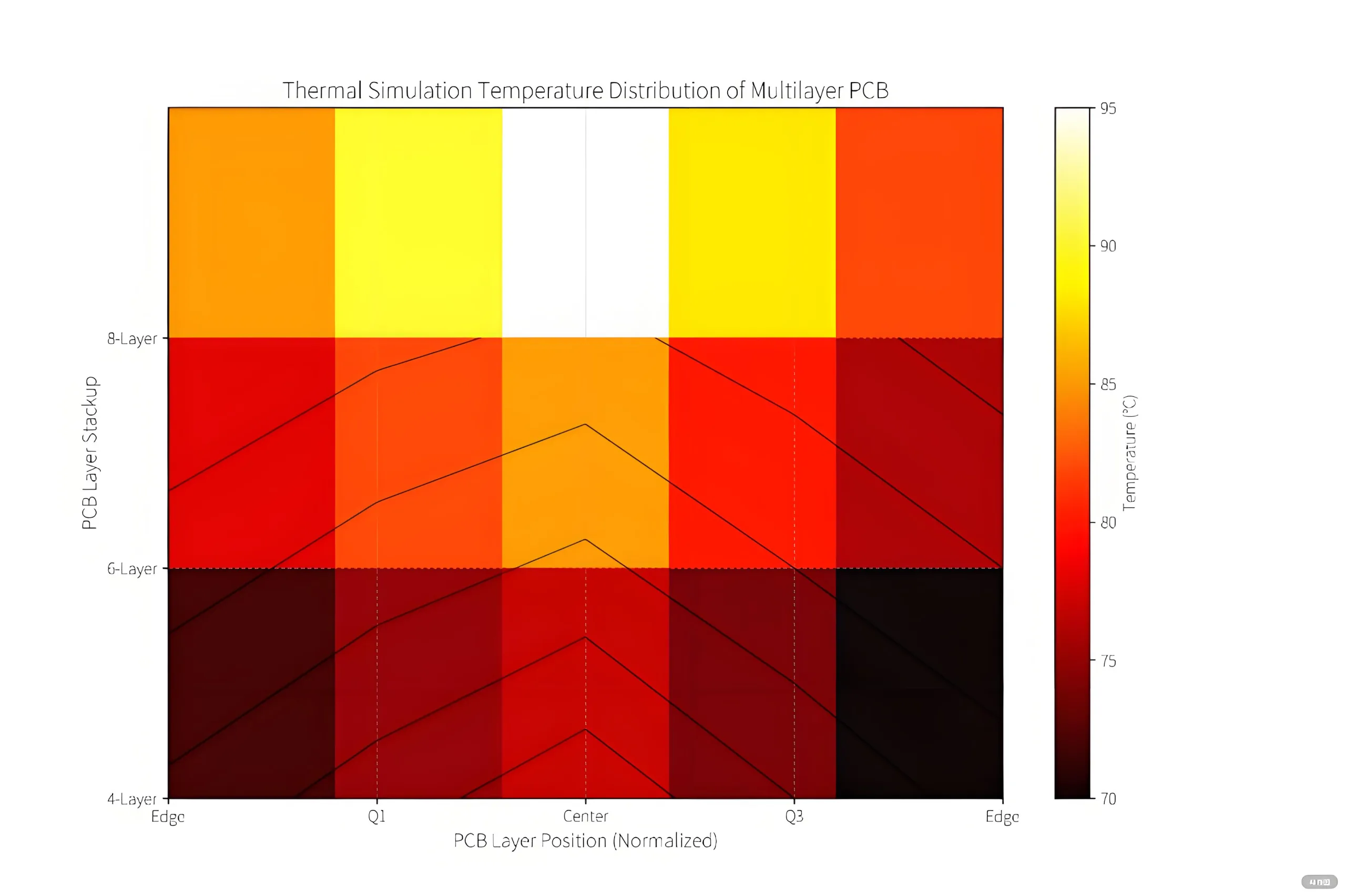

2. Triple-Topology Thermal Management

• 3oz copper thermal conductivity: 400W/(m·K)

• Embedded ceramic cooling channels

• Thermal via density: 1,500 holes/in² (232 holes/cm²)

Engineering Validation Gold Standard

5-Phase Prototype Testing

1. TDR Testing: Rise time ≤35ps

2. 3D X-Ray: 99.98% BGA solder yield

3. HALT Testing: -55℃ to 150℃ cycling

4. RF Parametric Analysis: S-parameters | Z-matrix

5. RoHS Compliance: Cd<100ppm, Pb<1000ppm

Cost Optimization Algorithm: When Does Custom PCB Save Costs?

UGPCB’s Economic Break-Even Formula:

Break-Even Point = (NRE Cost) / (Standard PCB Cost – Custom PCB Cost)

Custom solutions become cheaper at 217+ units (2023 client data).

Industry Applications: 6 Proven Fields

1. mmWave Radar: 77GHz antenna array boards

2. Medical Electronics: Implantable flexible PCBs

3. Power Modules: SiC MOSFET driver boards

4. Aerospace: MIL-PRF-31032 certified PCBs

5. High-Speed Computing: 56Gbps backplanes

6. IoT Devices: HDI blind/buried via designs
