Revolutionizing PCBA Manufacturing Through Intelligent Equipment

In the era of miniaturized and intelligent electronics, the precision and efficiency of PCBA (Printed Circuit Board Assembly) manufacturing directly determine end-product competitiveness. UGPCB’s PCBA factory integrates German/Japanese intelligent equipment valued at over ¥50 million, establishing a fully digitalized production line from SMT assembly to functional testing. With industry-leading capabilities of 2 million+ daily placement points and ±25μm placement accuracy, we deliver medical-grade reliable PCBA manufacturing services globally.

Section 1: Intelligent PCBA Production Line Configuration & Technical Specifications

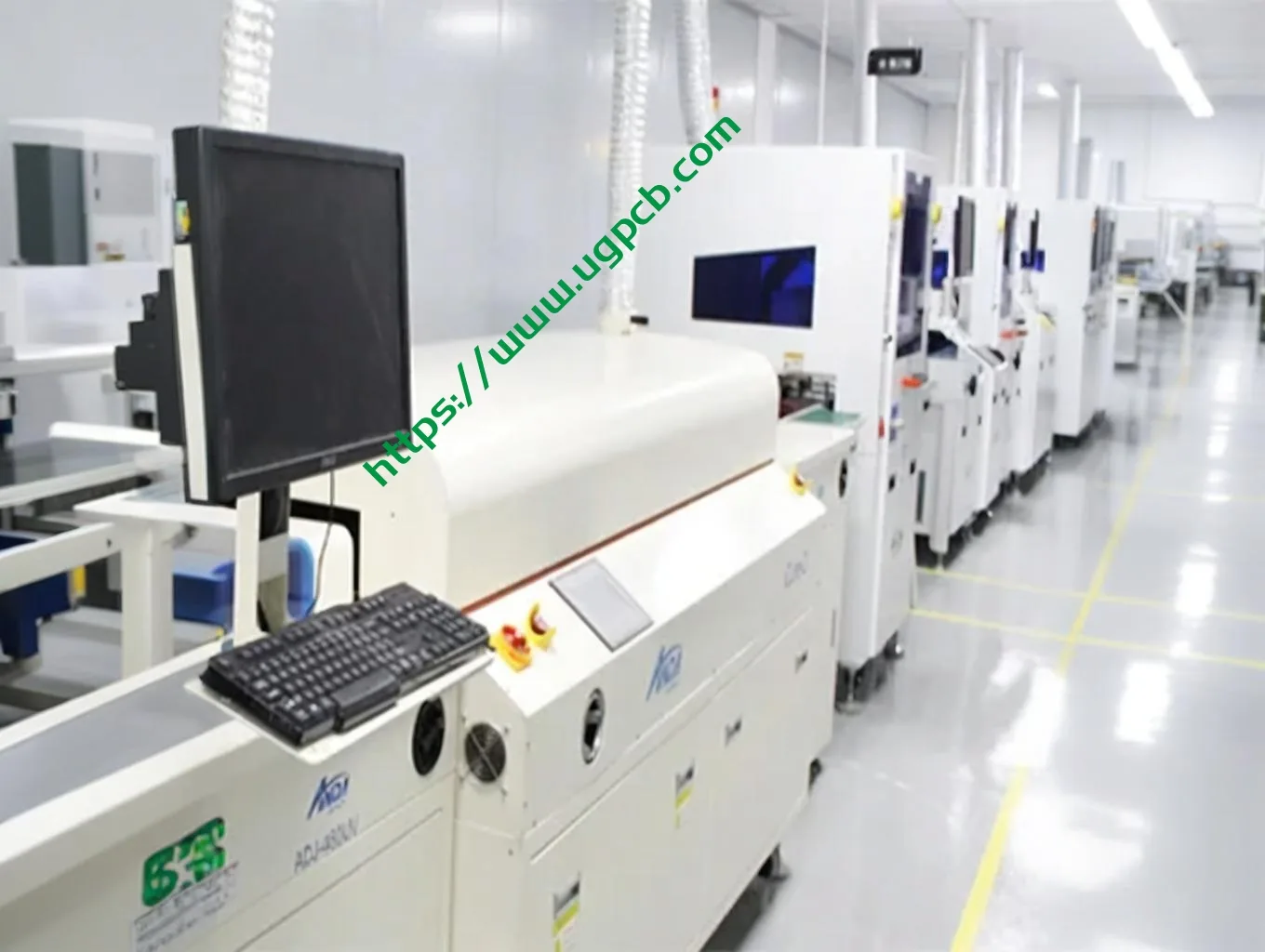

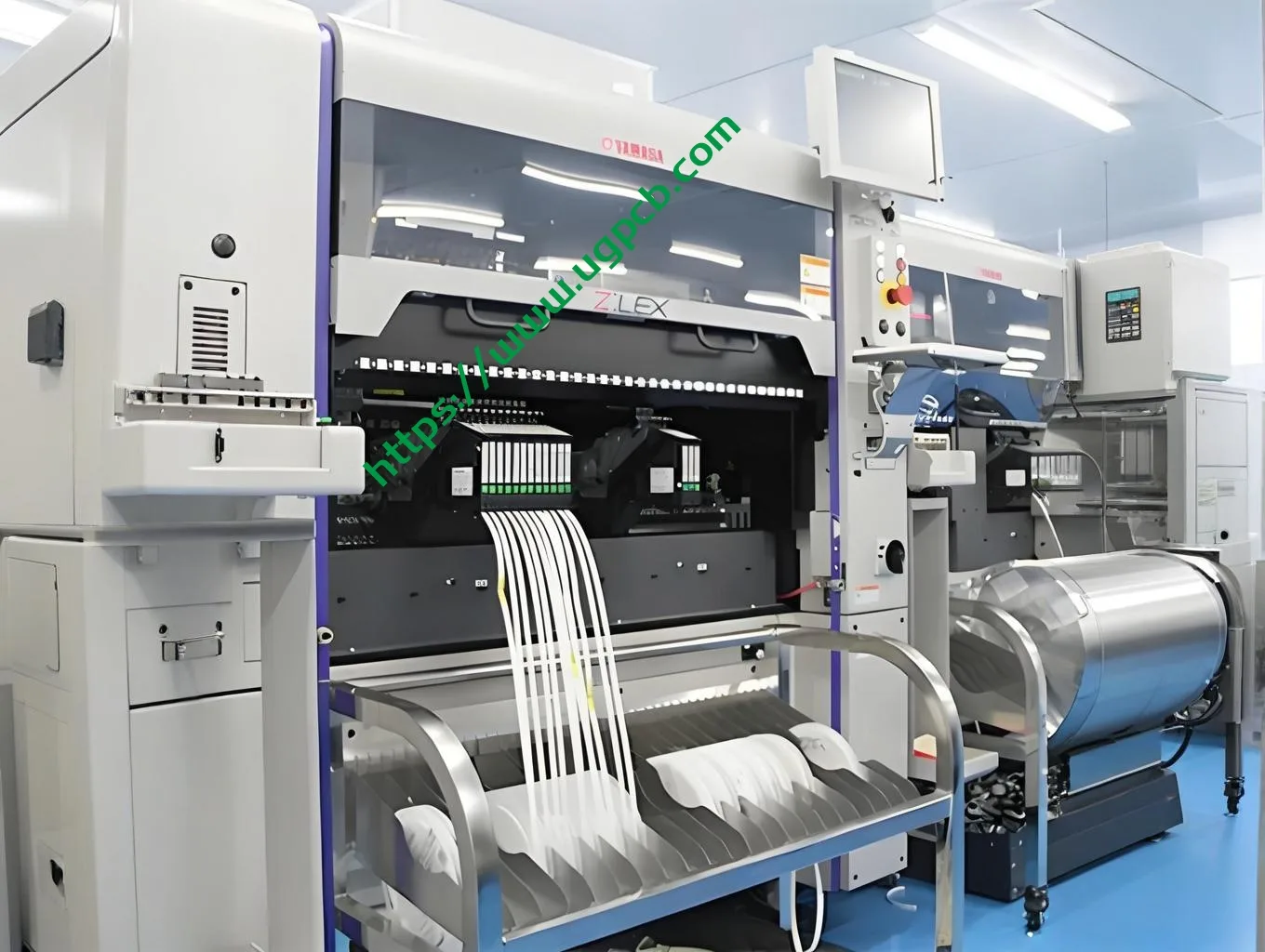

1.1 Fully Automated SMT Assembly Systems

• Fuji NXT III Modular Mounter: 16-nozzle configuration achieves 96,000 CPH for 0402 components

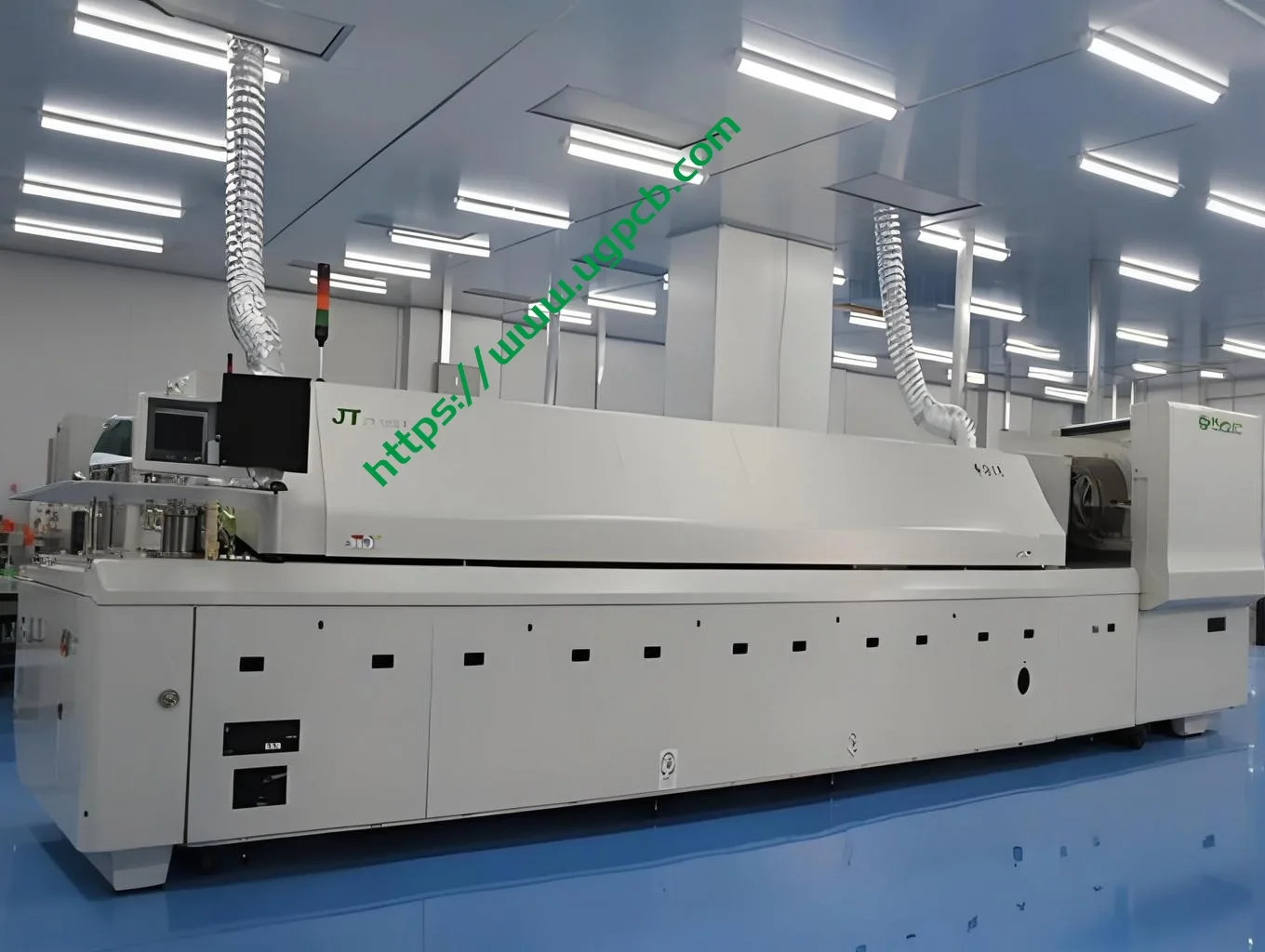

• ERSA Reflow Oven (Germany): 12-zone nitrogen protection with ±1℃ temperature control for Loctite solder paste
• Panasonic SPI Inspection: 3D laser scanning at 0.3μm precision, 1,200+ boards/hour throughput

1.2 High-Precision PCBA Inspection & Testing

• CyberOptics 3D AOI (USA): Multispectral imaging with >99.7% defect detection rate

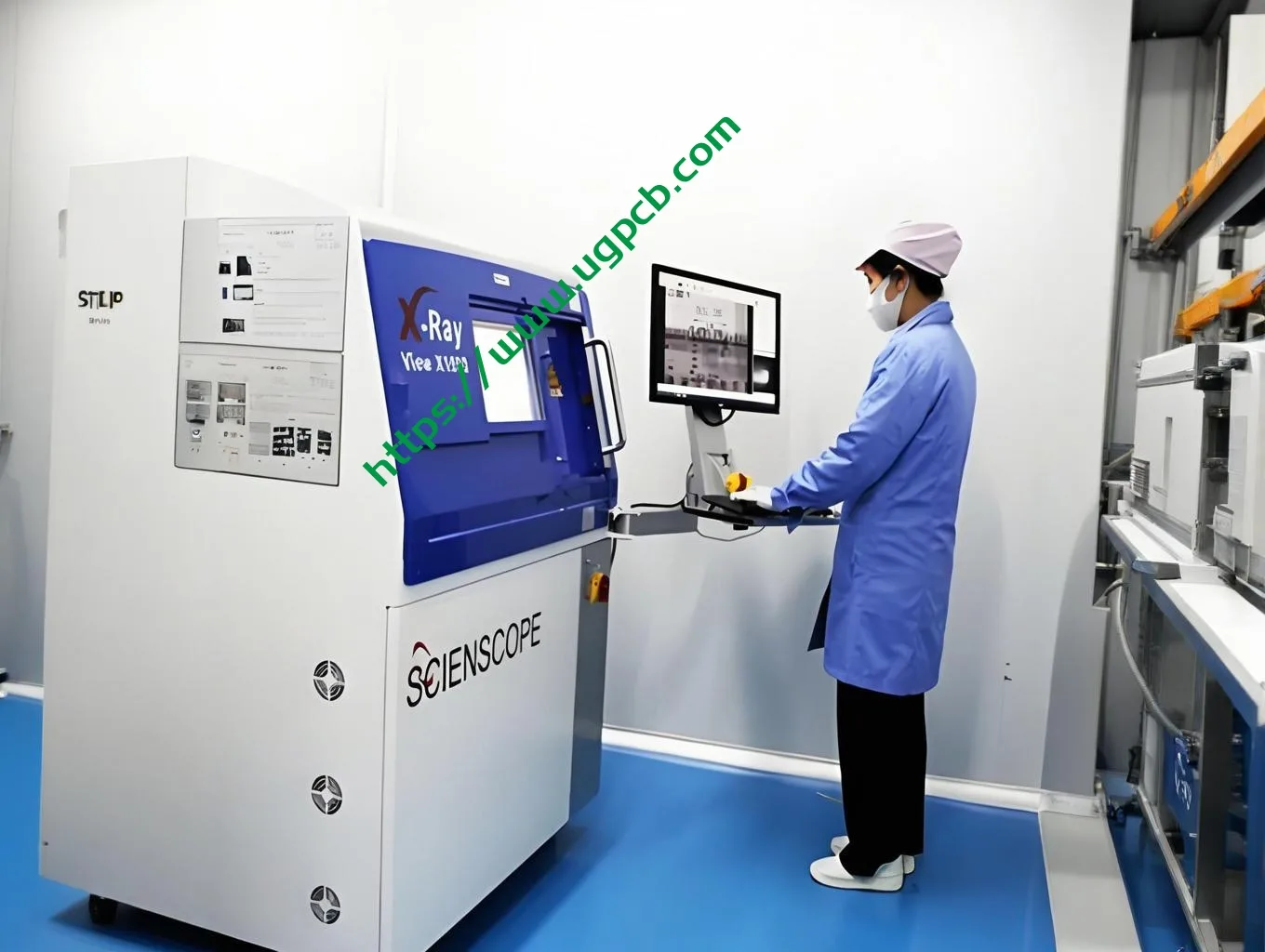

• OMRON X-Ray (Japan): 5μm resolution for BGA/QFN solder joint analysis
• Proprietary ICT/FCT Testers: 3,000+ test points with 60% faster fault localization

1.3 Specialized Process Equipment

• Smart PECVD Production Line: Nano-scale plasma coating for PCB protection

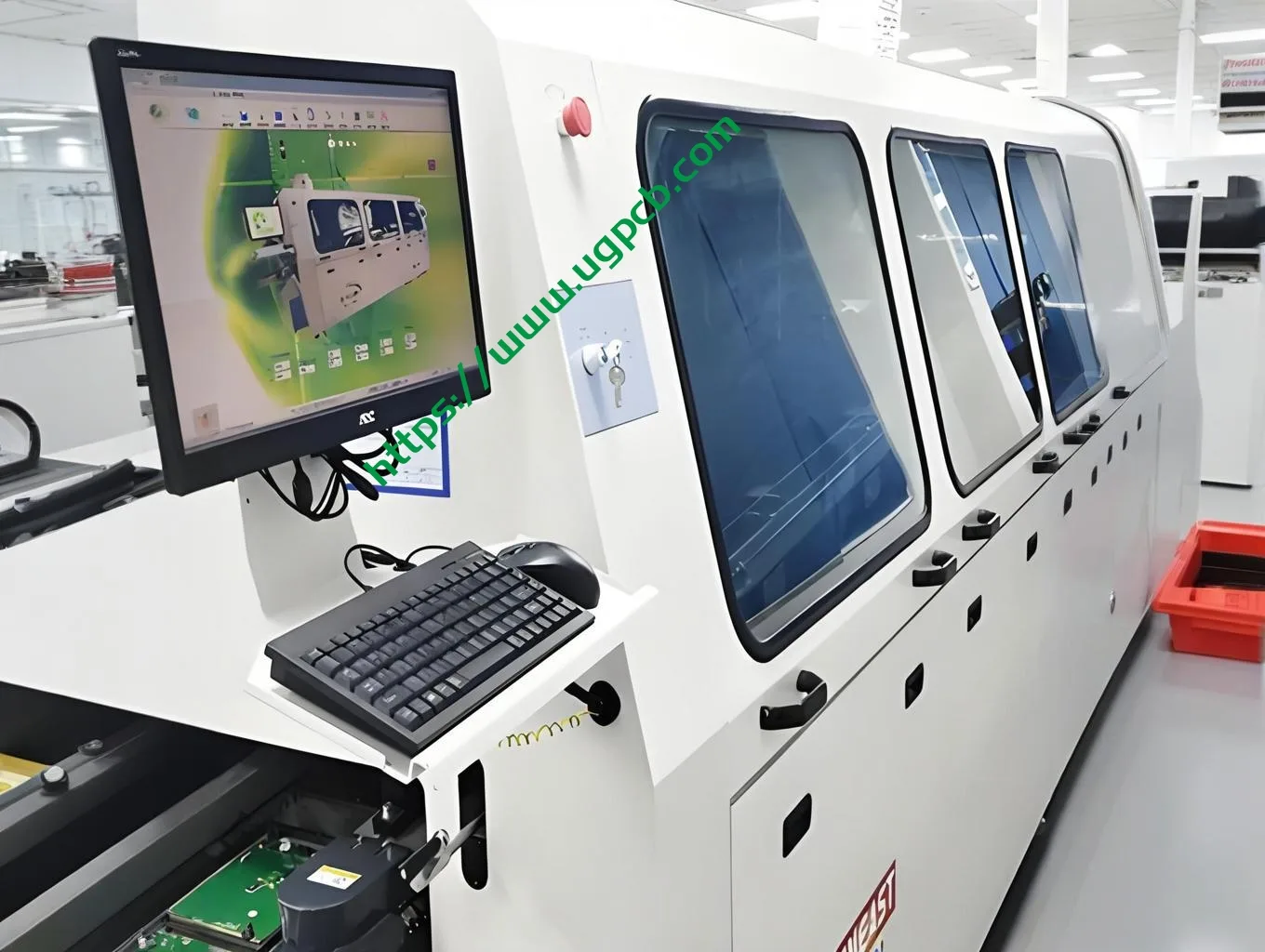

• Selective Wave Soldering: Dual-wave dynamic adjustment achieves 99.95% through-hole yield
• Dispensing Robots: ±0.02mm repeatability supporting underfill processes

Section 2: Equipment-Driven Competitive Advantages

2.1 Miniaturized Component Processing

• 01005 package assembly & 0.35mm BGA ball mounting
• Ultra-fine QFP placement (0.3mm pitch)

2.2 Flexible Hybrid Production

• SMT+DIP dual-mode lines enable 15+ product changeovers daily
• Smart feeder systems complete 200+ material swaps within 8 hours

2.3 Traceable Manufacturing System

• MES-integrated equipment tracks per-PCBA:
✅ Material batches ✅ Process parameters ✅ Inspection records

Section 3: Industry-Specific Custom Solutions

• Automotive Electronics: IATF 16949-certified lines with vibration/HALT testing
• Medical Devices: Class 8 cleanroom with ion-free cleaning for implants
• Industrial IoT: LoRa/WiFi/BT module programming for mass production

Call to Action

Visit UGPCB’s 【PCBA Factory】page to unlock advanced manufacturing:
⚡ Instant quote via WhatsApp/online form
⚡ Free DFM technical consultation
⚡ 72-hour rapid prototyping for first orders
Empower your product with our €32 million equipment ecosystem!
