RF PCB Design Capability

The Revolutionary Demand for RF Technology

With 5G base station density surging (>7 million globally), automotive radar adoption exceeding 60% (2025 forecast), and satellite constellations accelerating (SpaceX: 4,000+ launched), the high-frequency PCB market shows 11.3% CAGR. UGPCB drives this revolution, delivering core circuit design, fabrication, and PCBA services for radar systems, millimeter-wave applications (24-100GHz), 5G infrastructure, and autonomous vehicle sensors.

RF PCB Physics: Decoding Signal Integrity Equations

High-frequency circuit performance follows fundamental EM laws:

Signal Velocity Formula

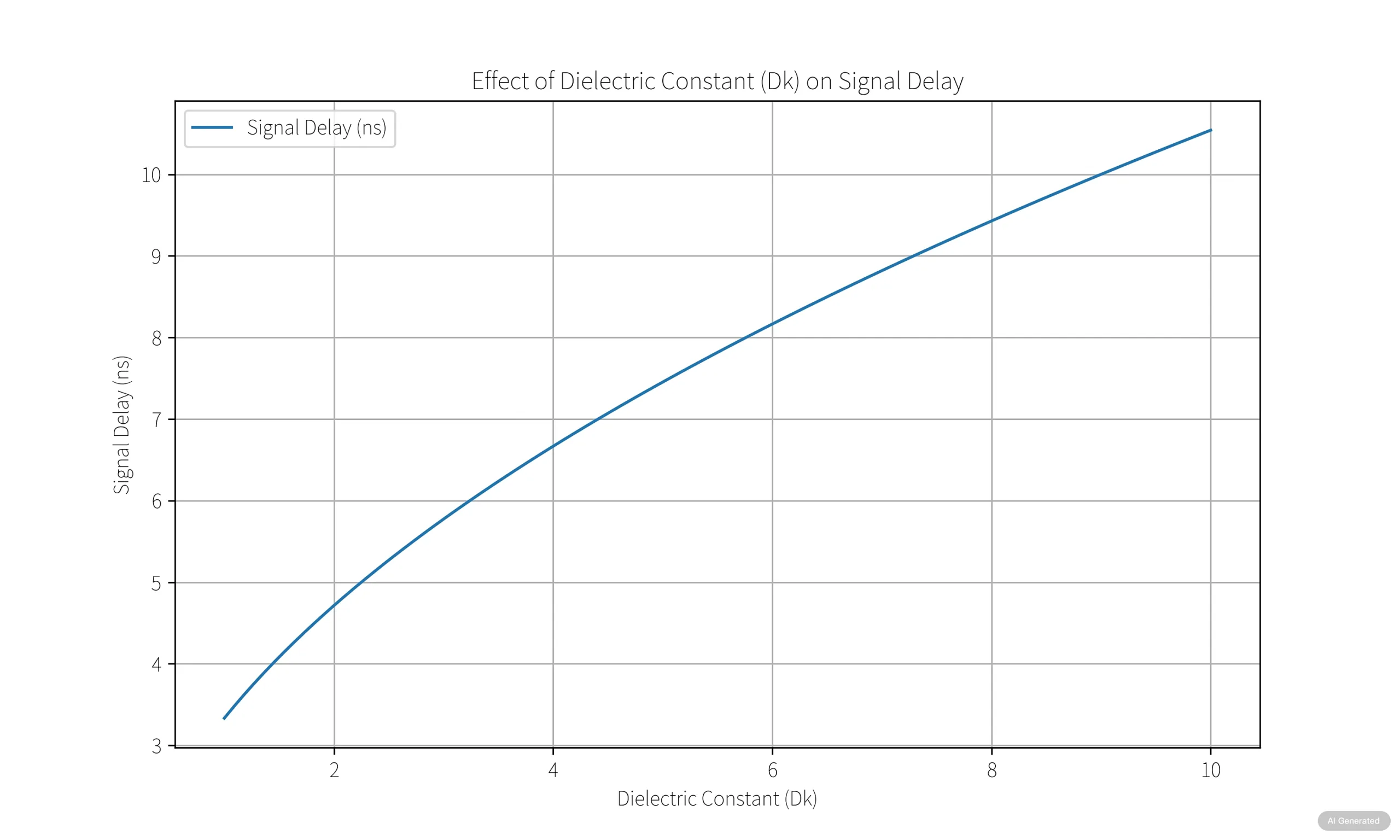

v = c / √(Dk)
(c = light speed, Dk = dielectric constant)

Insertion Loss Model
IL = 4.34 × α × l
(α = attenuation coefficient, l = transmission length)

Precision Game in PCB Material Science

Critical Parameter Control Matrix

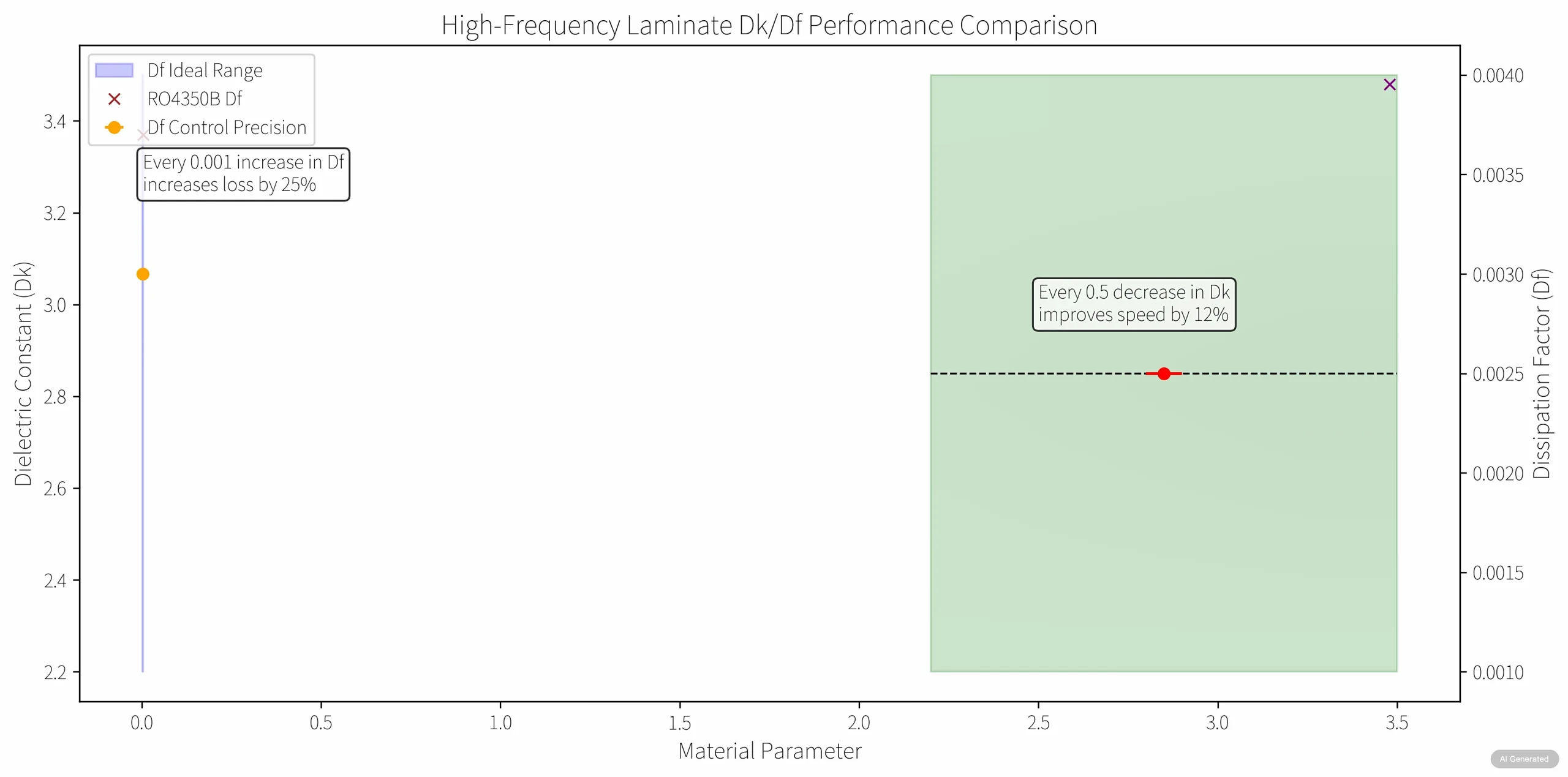

• Dk: Ideal 2.2-3.5 | Speed ↑12% per 0.5 reduction | UGPCB precision: ±0.05

• Df @10GHz: <0.004 | Loss ↑25% per 0.001 increase | UGPCB: 0.003±0.0005

• Water Absorption: <0.2% | Df variation ≤8% @10% humidity | UGPCB: 0.18%

UGPCB’s Core Manufacturing Breakthroughs

Nanoscale Precision Control

• Tolerance: ±0.02mm (Industry standard: ±0.05mm)

• Line Width: 3/3mil (76.2μm) ultra-fine lines

• Impedance Control: ±5% error (Industry: ±10% at high freq)
  Case Study: 77GHz automotive radar board achieved σ<0.8Ω impedance consistency

Low-Loss Process Innovation

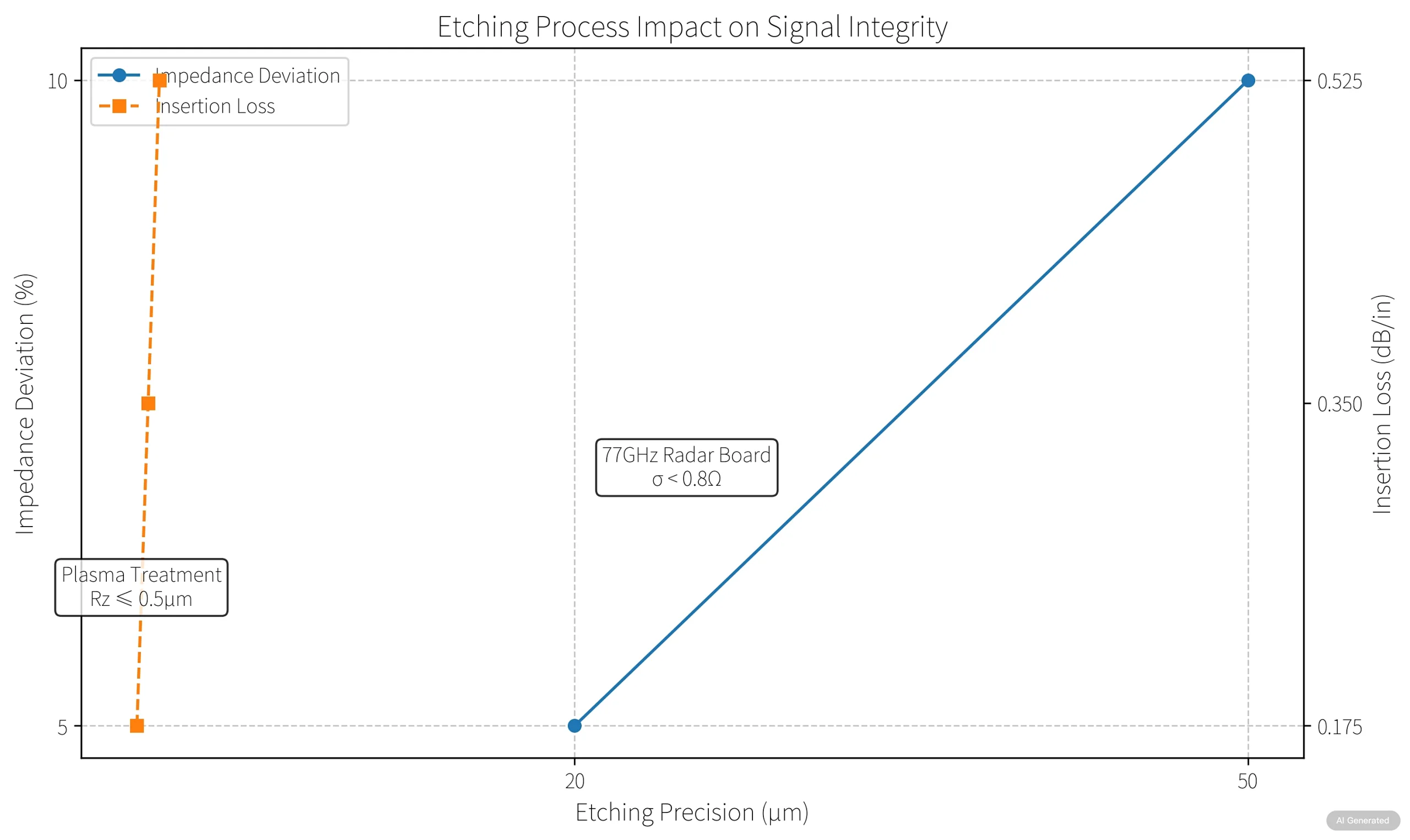

Proprietary “3-Step Etching Control”:

1. Plasma pretreatment (Surface roughness ≤0.5μm)

2. Dynamic etch compensation (Line width algorithm)

3. Nano-coating protection (Df retention: 99.2%)

Millimeter-Wave Solution Architecture

5G Base Station PCB Design Paradigm

• Hybrid dielectric design for 28/39GHz bands

• CTE matching: X/Y-axis <14ppm/°C

• Phase stability: ±2.5°/m @40GHz

Automotive Radar Tech Stack

Antenna Array → Power Divider Network → Beamforming System
│                │                     │
Dk=3.0±0.1      Df<0.0035            Dk uniformity Δ<0.03

Demonstrated Client Value

Performance Milestones:

• Satellite comms client: Insertion loss ↓31% (4.2dB/m → 2.9dB/m)

• 5G infrastructure supplier: Power capacity ↑ to 3W/mm (Industry: 2.2W/mm)

Fig 4: UGPCB RF PCBA in 5G Base Station Integration
[Alt: 5G-basestation-RF-PCBA-integration-UGPCB-antenna-board-supplier]

Launch Your High-Frequency Innovation

*”When your design faces 40GHz+ challenges, ±0.02mm tolerance could be the last defense for signal integrity”*
— Dr. Zhou, UGPCB Chief RF Engineer
