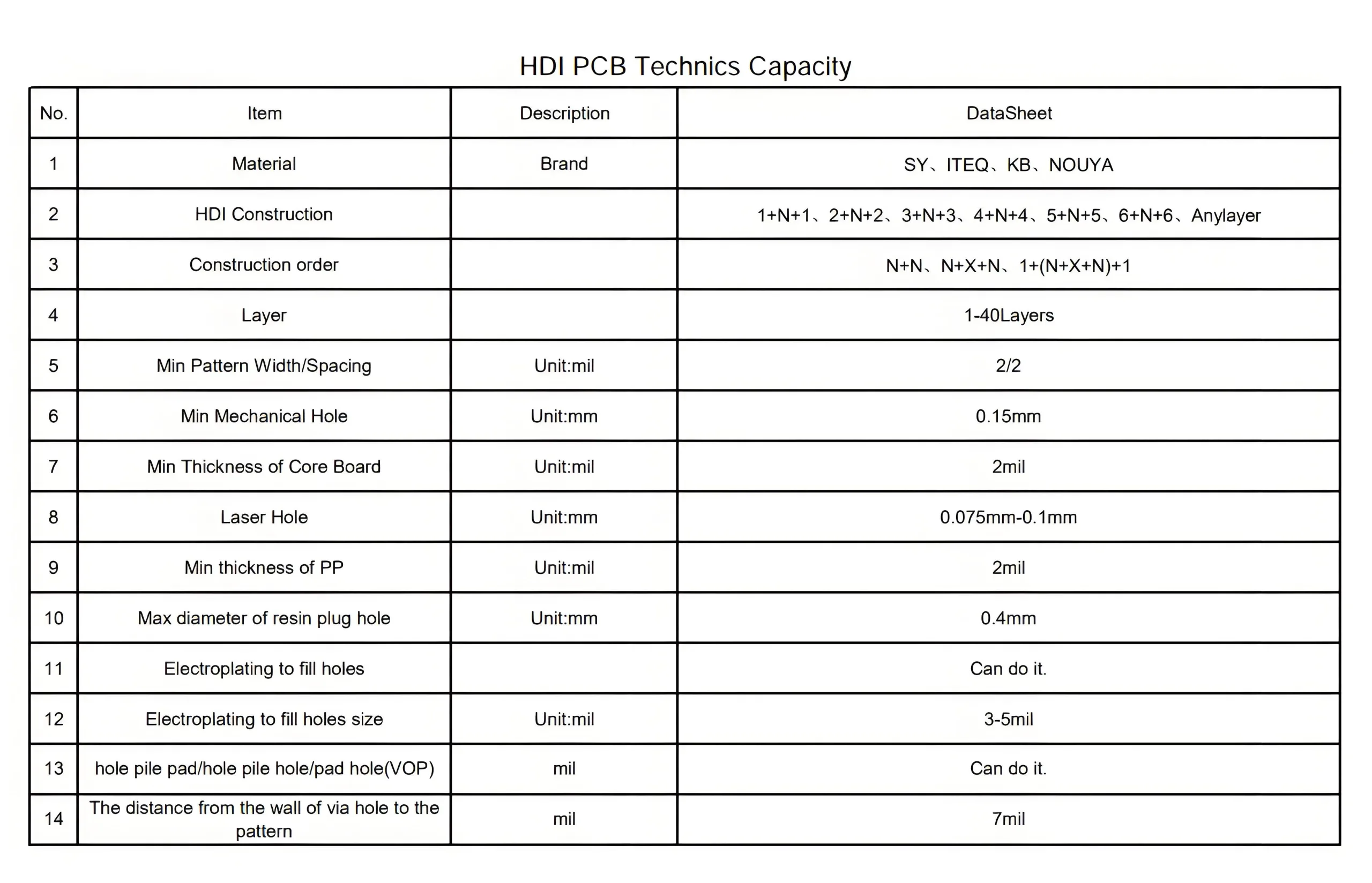

HDI Manufacturing Process Capability

UGPCB: Pioneering High-Density Interconnect Innovation with Advanced HDI PCB Technology

Industry-Leading HDI PCB Manufacturing Capabilities

UGPCB stands at the forefront of ISU (Interconnessione ad alta densità) PCB technology, driving progress in an era where electronic devices demand unprecedented thinness and functionality. Specializing in 4-40 layer multilayer boards with thickness ranging from 0.4mm to 6.0mm, we cater to diverse needs from consumer electronics to premium communication equipment.

Our cutting-edge Any-layer HDI technology enables seamless interconnection across over 10 PCB strati, delivering robust connectivity solutions for high-performance computing and communication devices. This capability positions us as a trusted partner for next-generation electronic applications.

Process Technology: Precision Meets Reliability

Advanced Equipment & Innovazione

UGPCB sets industry benchmarks in HDI PCB manufacturing through state-of-the-art equipment and process innovation:

• Perforazione laser: Achieves microvia processing as small as 0.075mm (3mil) with precision exceeding industry standards
• Tecnologia microvia: Hidden interconnections through next-layer vias eliminate fan-in/fan-out routing, significantly enhancing circuit density
• Controllo dell'impedenza: Maintains +/-7% impedance tolerance for superior signal integrity in 5G and high-performance computing applications

Comprehensive Manufacturing Process

Our HDI production workflow integrates:

1. Perforazione laser: CO₂ laser systems ensure consistent hole quality and cleanliness
2. Plating Process: 12-18μm copper thickness guarantees electrical reliability
3. Pattern Transfer: Supports 1.5/1.5mil minimum line width/spacing for ultra-dense routing
4. Lamination Technology: Layer alignment accuracy within ±200μm ensures structural stability

We utilize high-performance PCB substrates including high-Tg FR-4 (140/150/170℃) and polyimide materials to ensure stable performance in high-temperature environments.

Garanzia di qualità & Testing Systems

Multi-Layered Inspection Protocols

UGPCB implements rigorous quality control through:

• AOI (Ispezione ottica automatica)
• Flying Probe Testing
• X-ray Inspection

Microvia Reliability

The inherent reliability of our microvia technology stems from:

• Thinner construction with 1:1 aspect ratio
• Superior signal transmission stability compared to traditional through-holes
• Enhanced long-term durability for demanding applications

Applicazioni: Empowering Cutting-Edge Technologies

UGPCB’s HDI PCBs power high-tech applications across multiple sectors:

• 5G Communication: High-frequency PCBs for 5G base stations and RF modules
• Elettronica automobilistica: Stable signal transmission for navigation and entertainment systems
• Dispositivi medici: Precision data acquisition for patient monitors and surgical instruments
• Controllo industriale: Efficient data exchange for PLCs and sensor networks

Vantaggi tecnici: Perché scegliere UGPCB?

Superior Performance Features

1. Efficienza dello spazio: Microvia/blind via designs reduce PCB footprint by up to 30%
2. Integrità del segnale: Low-DK materials minimize signal delay and crosstalk for high-speed transmission
3. Design Flexibility: Enables complex circuits in compact spaces
4. Gestione termica: Dedicated thermal layers improve heat dissipation for high-power applications

R&D Direction & Prospettive future

Next-Gen Technology Investment

UGPCB actively develops HDI PCBs with:

• Higher density and finer lines
• Lower signal loss characteristics
• Laser drilling advancements
• Nanomaterial integration
• Smart manufacturing systems

Our R&D team focuses on advanced microvia technologies and material innovations to support client roadmaps for 5G, AI, and IoT devices.

Conclusione: Your Trusted HDI PCB Partner

Leadership del settore

As an HDI PCB technology leader, UGPCB delivers:

• Advanced process capabilities
• Stringent quality control
• Continuous technological innovation

Comprehensive Solutions

From smartphones to automotive systems, we provide total high-density interconnect solutions. Choosing UGPCB means selecting:

• Superior performance
• Reliable quality
• Technological foresight

Contact UGPCB today to explore how our HDI PCB technology can empower your next-generation products.
