High-Reliability 8-Layer Heavy Copper PCB | 2.0mm Thick FR-4 TG170

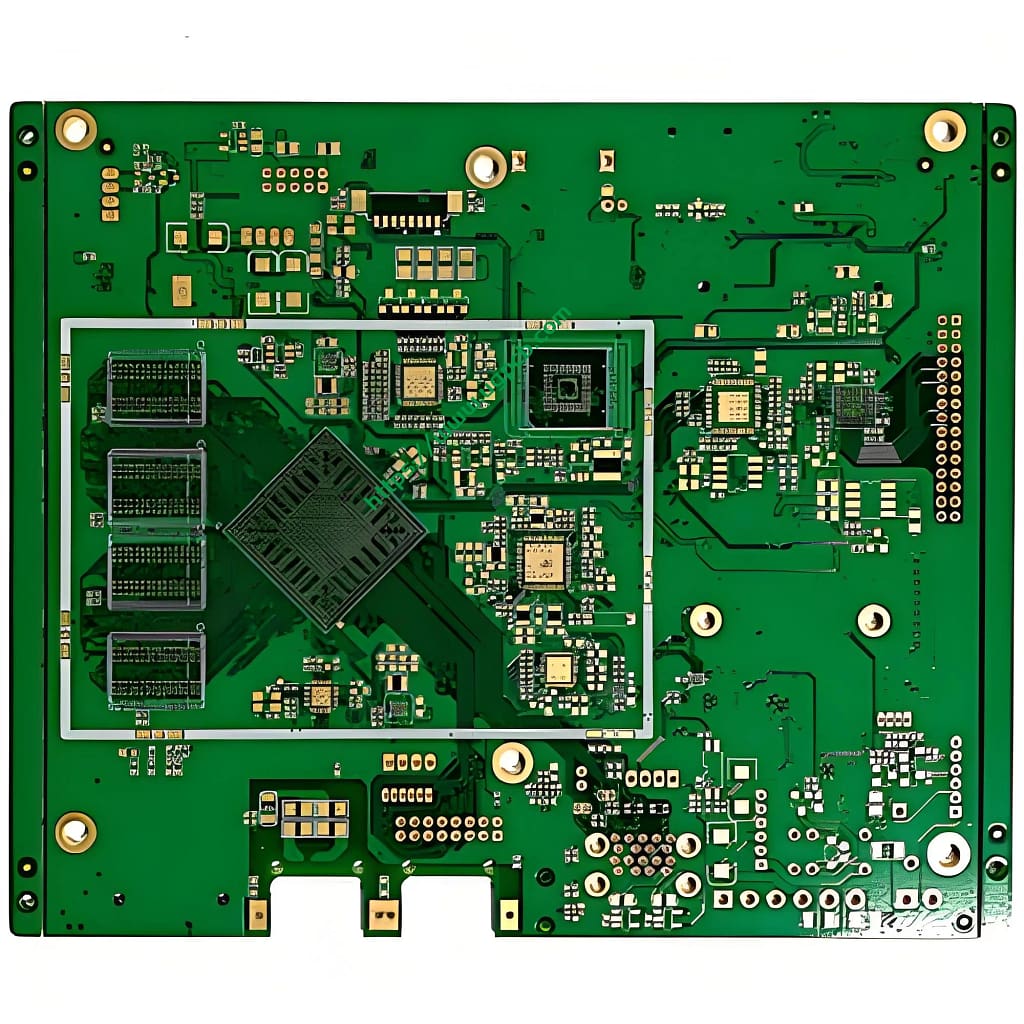

High-Reliability 8-Layer Rigid PCB Panoramica del prodotto & Definizione

In the realm of high-speed, high-density electronic design, PCB multistrato (Circuiti stampati) are indispensable. UGPCB 8-PCB rigido a strati, built with a substantial 2.0mm board thickness E 3OZ heavy copper foil, is engineered to withstand demanding electrical and physical environments. It serves not only as the foundation for electrical connectivity but as a critical component ensuring device stability and enhanced product reliability. For applications in industrial controls, power systems, or automotive electronics, this high-specification board is the optimal solution for complex, high-performance designs.

Core Specifications

• Conta dei strati: 8-Layer Rigid PCB

• Finished Board Thickness: 2.0mm ±10%

• Materiale di base: FR-4, Temperatura di transizione vetrosa (Tg) ≥ 170°C

• Finitura superficiale: Livellamento per saldatura ad aria calda senza piombo (HASL-LF)

• Copper Weight: 3 once per piede quadrato (≈105μm) for both inner and outer layers

• Maschera di saldatura & Silkscreen: Green LPI Solder Mask, White Silkscreen Legend

Considerazioni critiche sulla progettazione

When designing with this high-specification PCB, engineers must prioritize:

1. Gestione termica: Leverage the high current-carrying capacity of 3OZ heavy copper to optimize power and ground planes, reducing impedance and heat rise. Use thermal simulation in conjunction with the high heat resistance of FR-4 TG170 material.

2. Controllo dell'impedenza & Integrità del segnale: The 8-layer stack-up allows effective separation of signal, energia, e strati di terra. Precise calculation and control of trace impedance (per esempio., 50Ω single-ended, 100Ω differential) is essential to minimize reflection and crosstalk.

3. Meccanico & Electrical Reliability: IL 2.0mm thick board enhances overall rigidity, suitable for applications with vibration or insertion stress. For high-voltage or high-current nodes, adjust trace width and clearance according to IPC-2221 standards and the 3OZ copper weight to ensure safety margins.

4. DFM (Progettazione per la produzione): Collaborate with UGPCB’s engineering team early to address specific requirements for heavy copper PCB E thick board PCB elaborazione, such as drilling parameters and plating uniformity, ensuring a high-yield manufacturing process.

Come funziona & Struttura

An 8-PCB a strati is fabricated by laminating multiple conductive layers into a single unit using precise processes including inner-layer imaging, laminazione, perforazione, and plating. Electrical connections between layers are established via plated through-holes (PTHS), blind vias, or buried vias. A typical stack-up example is:

Strato superiore (Segnale) — Prepreg — L2 (Terra) — Core — L3 (Segnale) — Core — L4 (Energia) — Core — L5 (Segnale) — Prepreg — Bottom Layer (Segnale)

This “sandwich” structure effectively isolates high-speed signals, provides solid reference planes, and ensures efficient power distribution.

Prestazione & Caratteristiche chiave

1. Superior Electrical Performance: 3OZ heavy copper provides extremely low conductor resistance and excellent current-carrying capacity (over 3x that of standard 1OZ copper), reducing power loss and voltage drop.

2. Exceptional Thermal Reliability: FR-4 TG170 high Tg material withstands higher operating and soldering temperatures. Combined with the thermal conductivity of heavy copper, it significantly improves long-term reliability in high-temperature environments.

3. Enhanced Mechanical Stability: IL 2.0mm thick board combined with rigid FR-4 offers superior resistance to bending and vibration, ideal for harsh operating conditions.

4. High Solder Joint Reliability: IL HASL-LF surface finish provides a flat, coplanar pad surface with excellent solderability and extended shelf life, compliant with RoHS directives.

5. Interconnessione ad alta densità (ISU) Capability: The 8-layer design offers ample routing space for complex circuits, facilitating device miniaturization and functional integration.

Panoramica del processo di produzione

Engineering Review → Material Cutting (FR-4 TG170) → Inner Layer Imaging & Incisione (3OZ) → Oxide Treatment & Lamination → Mechanical Drilling & Copper Plating → Outer Layer Patterning & Placcatura (to 3OZ) → Solder Mask Application (Green LPI) & Silkscreen (Bianco) → Lead-Free HASL Surface Finish → Electrical Testing & Ispezione finale (per IPC standards)

Each stage incorporates stringent quality control checkpoints to ensure every high-reliability multilayer PCB meets exact customer specifications.

Applicazioni primarie & Casi d'uso

This PCB is designed for high-power, high-stability applications:

• Industrial Control Systems: PLCS, azionamenti a motore, and industrial power supplies requiring heavy copper PCBs for high current.

• Renewable Energy & Power Systems: Solar inverters, UPS systems, and EV charging modules relying on high current capacity and thermal endurance.

• Elettronica automobilistica: On-Board Chargers (OBC), Battery Management Systems (BMS), and DC-DC converters, Dove high Tg PCBs are essential for under-hood temperatures.

• Telecommunications Infrastructure: Base station power amplifier units and network backup power systems.

• High-End Test & Measurement Equipment: Instruments requiring stable power delivery and low-noise performance.

Product Classification (Per IPC Standards)

1. Per conteggio strati: PCB multistrato (>4 strati), specifically an 8-layer circuit board.

2. By Rigidity: PCB rigido.

3. Per materiale di base: Scheda FR-4, subset: High Tg PCB (Tg ≥ 170°C).

4. By Special Process: PCB di rame pesante (per IPC-2152), Thick Board PCB.

5. By Application Class: Suitable for Classe IPC 2 (Dedicated Service Electronic Products) E Classe 3 (High-Reliability Electronic Products) applicazioni, tra cui Industrial Grade PCB, Power Electronics PCB, E Automotive Grade PCB.
