UGPCB 18-Layer Server PCB: Engineered for High-Performance Computing & Data Centers

In the era of data centers and cloud computing, server stability and performance are critical to digital business operations. As the fundamental hardware carrier, the precision design and exceptional quality of Server PCBs (Printed Circuit Boards) are paramount. Leveraging deep industry expertise and cutting-edge technology, UGPCB provides high-performance, highly reliable 18-layer server PCBs to meet the most demanding requirements of next-generation data center applications.

Product Overview & Definition

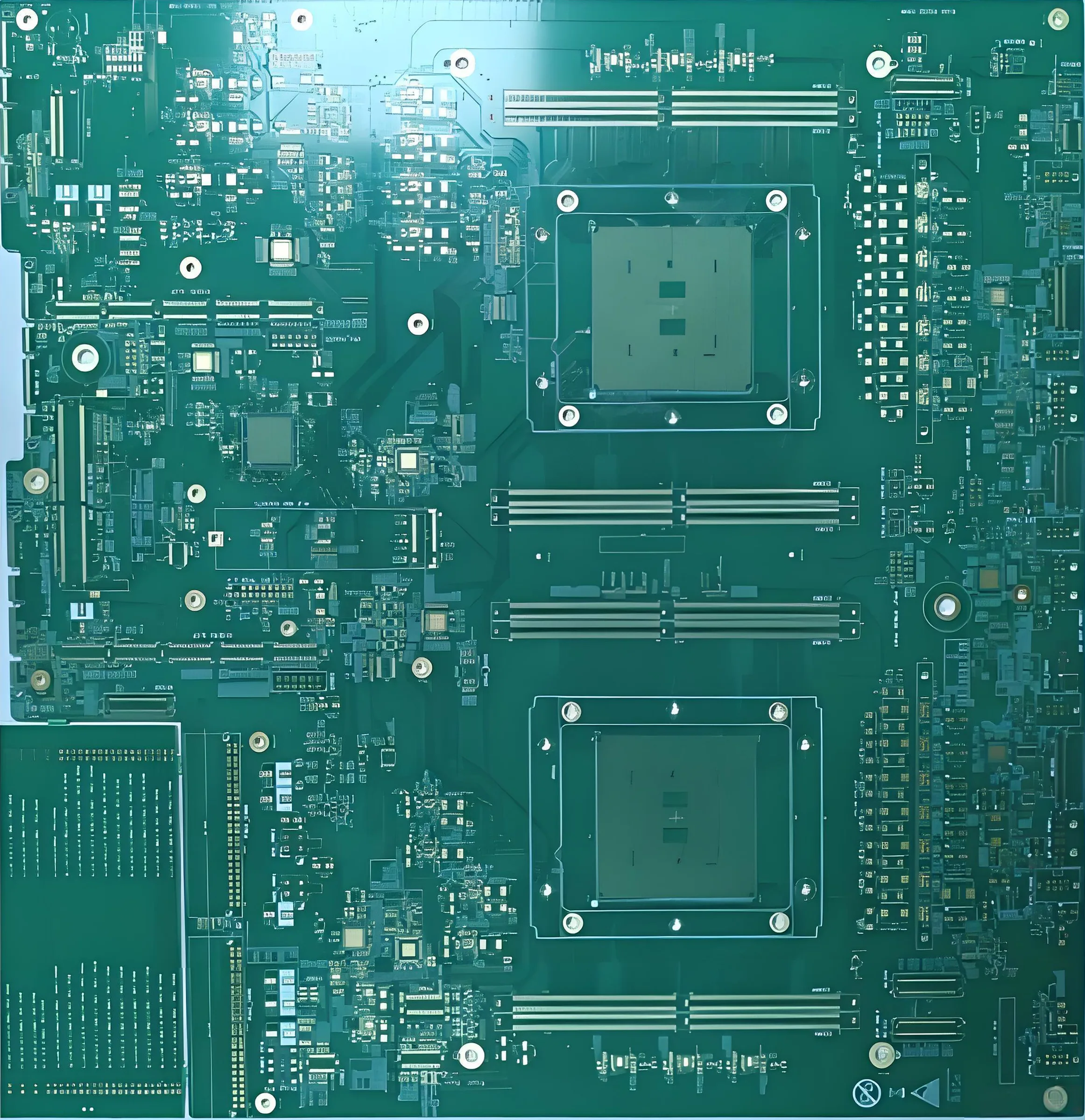

A server PCB is the core component of server motherboards, storage backplanes, and various functional daughter cards. It hosts critical components like CPUs, memory, and chipsets, facilitating high-speed signal transmission, power distribution, and system interconnection. Designed specifically for high-performance application servers, this UGPCB product utilizes an 18-layer high multilayer structure and an enhanced board thickness of 2.4mm ±10%, serving as a robust hardware foundation for processing massive datasets and supporting high-speed computations.

Core Design Highlights & Technical Analysis

To address server platforms’ extreme demands for signal integrity, power integrity, and thermal management, this product integrates several key technologies:

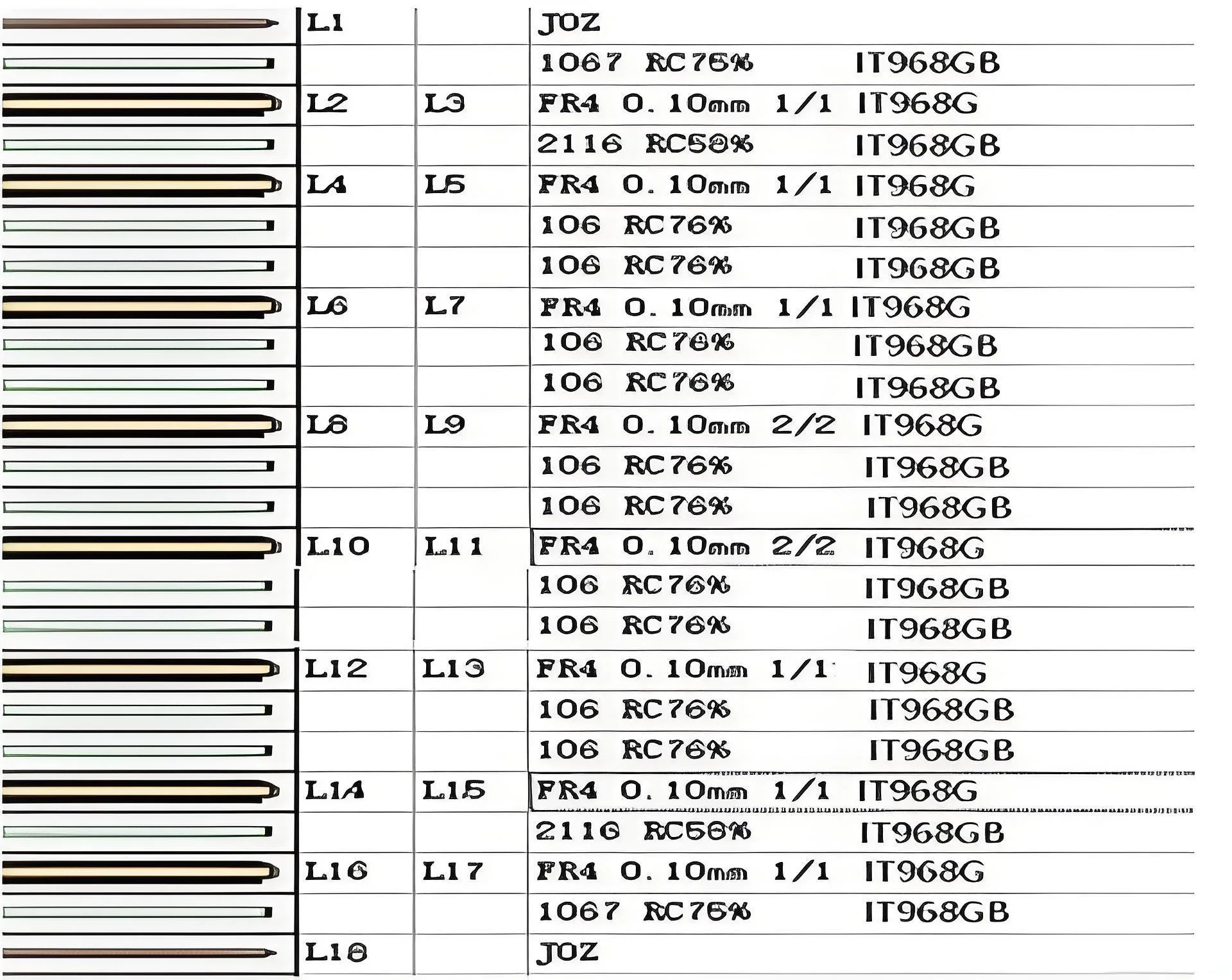

1. Advanced Stack-up & Materials:

   • Laminate: Utilizes ITEQ IT968G high-speed, low-loss material. Its high Tg (Glass Transition Temperature) ensures dimensional stability and consistent electrical performance under prolonged high-temperature server operation, effectively reducing signal transmission loss.

   • Layers & Copper Weight: An 18-layer complex stack-up with a meticulously designed hybrid copper weight scheme (featuring 2Oz thick copper foil on select inner layers). This optimizes the current-carrying capacity and thermal performance of power planes while enabling fine-line routing on high-speed signal layers.

2. Precision Routing & Interconnection:

   • Line Capability: Achieves ultra-fine line width/space of 0.1mm/0.1mm, meeting the fan-out and interconnection requirements for high-density BGA packages (e.g., CPU, GPU, FPGA).

   • Microvia Technology: Supports a minimum mechanical drill diameter of 0.20mm, enhancing routing density and space utilization.

3. Key Technologies for Signal Integrity:

   • Back-Drilling: For high-speed differential signals (e.g., PCIe, SAS, Ethernet), the back-drilling process removes unused copper stubs from through-holes, significantly reducing signal reflection and attenuation. This is a core process for ensuring signal quality in high-speed PCBs.

   • RTF Copper Foil: Uses Reverse Treated Foil, which provides a smoother copper surface. This effectively reduces skin effect loss for high-frequency signals, improving signal transmission efficiency.

4. Reliable Surface Finish:

   • Electroless Nickel Immersion Gold (ENIG) is applied as the final surface treatment. ENIG provides a flat surface, excellent solderability, a reliable contact interface, and long-term oxidation resistance, making it ideal for soldering dense, fine-pitch components on server PCBs.

Product Features & Advantages

• Exceptional Electrical Performance: High-speed IT968G laminate combined with back-drilling and RTF foil ensures low-loss, low-latency transmission of high-frequency signals, making it an ideal choice for high-frequency PCBs and high-speed PCBs.

• Superior Power Handling & Thermal Management: 2Oz inner-layer copper and the 2.4mm board design enhance current-carrying capacity, overall structural rigidity, and thermal conductivity.

• High Density & Reliability: The 18-layer routing space coupled with 0.1/0.1mm line width/space supports the most complex designs. Strict process control and high-Tg materials ensure long-term reliability for 24/7 uninterrupted operation.

• End-to-End Service Support: UGPCB offers not only top-tier PCB manufacturing but also a one-stop solution from design review to production, accelerating your time-to-market.

Production Process Overview

Our manufacturing adheres to stringent IPC standards and a quality management system:
Engineering Review → Material Preparation → Inner Layer Imaging → Lamination → Drilling & Back-Drilling → Hole Metallization → Outer Layer Imaging → Plating (for hybrid copper weight) → Solder Mask Application (Pre-ENIG) → ENIG → Routing / Profiling → Electrical Test & Final Inspection

https://via.placeholder.com/800×450.png?text=18-Layer+PCB+Cross-Section
Alt Text: Cross-sectional view of an 18-layer server PCB board, detailing precise lamination and back-drilled via structures for high-speed signal transmission.

Applications & Classification

This high-performance PCB is widely used in:

• Enterprise & Cloud Server Motherboards

• Data Center AI Computing Acceleration Cards

• High-Performance Storage Servers & Backplanes

• Network Switch & Communication Equipment Core Boards

Technical Classification:

• By Layer Count: High Multilayer PCB (18 Layers)

• By Technology: High-Speed/High-Frequency PCB, Back-Drilled PCB, Heavy Copper PCB

• By Application: Server/Data Center PCB

• By Surface Finish: ENIG (Electroless Nickel Immersion Gold) PCB

Choose UGPCB, and you select more than just a high-quality server PCB board; you gain a trusted partner in advanced PCB manufacturing. We are dedicated to translating complex technical details into reliable advantages for your products, empowering your next-generation data center solutions.

Contact our expert team today for a customized PCB solution quote and technical consultation!
