UGPCB PWB Manufacturing: Comprehensive Guide to High-Quality PCB Solutions

UGPCB specializes in PWB (Printed Wiring Board) fabricație, offering a wide range of customizable PCB solutions for diverse industries. Our products are engineered to meet stringent quality standards, supporting applications from consumer electronics to high-reliability sectors like automotive and aerospace. With capabilities spanning 2 la 100 straturi, thicknesses from 0.13mm to 8.0mm, and advanced materials like FR-4 and High TG FR-4, we deliver robust, de înaltă performanță PCB -uri that ensure reliability and efficiency in every application. This overview introduces the core aspects of our PWB manufacturing process, emphasizing our commitment to precision and innovation in the PCB industry.

What is PWB? Definition and Basics

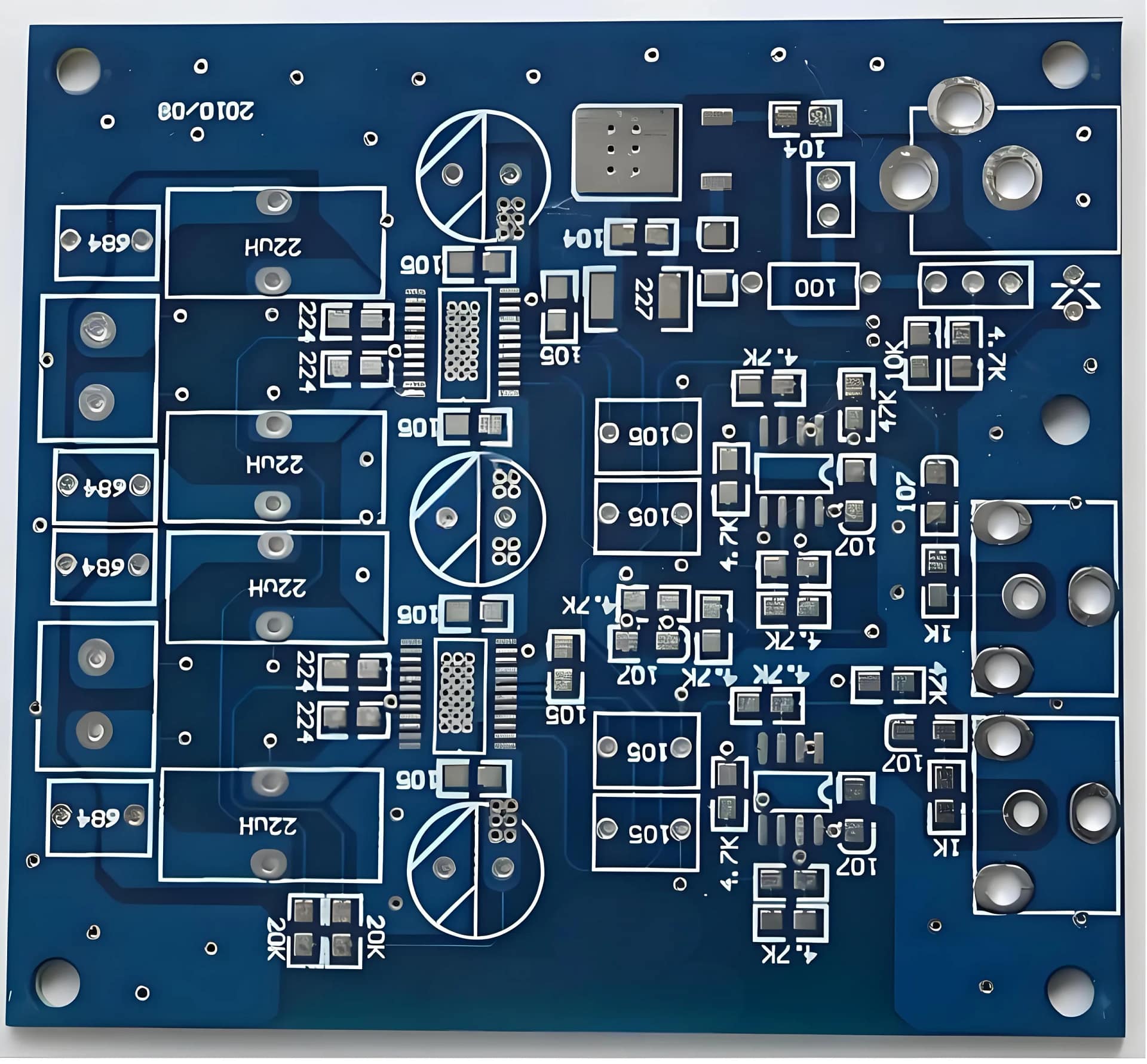

UGPCB's PWB

PWB, or Printed Wiring Board, refers to the foundational component used to mechanically support and electrically connect componente electronice. Unlike the broader term PCB (Placă de circuit tipărită), which often includes assembled boards, PWB specifically denotes the bare board before component attachment. UGPCB’s PWB products serve as the backbone for electronic systems, facilitating signal transmission and power distribution. Key parameters include layer counts (2-100 straturi), finished thickness (0.13mm-8.0mm), and copper thickness (standard 1 oz internal and external), ensuring versatility for various Design PCB needs. This definition highlights the critical role of PWB in modern electronics, bridging design and functionality.

Working Principle of PWB

PWBs operate by using conductive copper traces etched onto insulating substrates to create electrical pathways between components. The board’s layers—ranging from simple 2-layer designs to complex 100-layer configurations—allow for efficient signal routing and noise reduction. De exemplu, in multilayer PCBs, inner layers handle power and ground planes, while outer layers connect components. Surface treatments like Gold, Sângera (Hot Air Solder Leveling), PECVD (Nano-protecție plasmatică) și OSP (Organic Solderability Preservative) enhance conductivity and solderability, ensuring reliable performance in applications such as industrial control systems or automotive electronics. This principle underscores how UGPCB’s PWBs enable seamless electronic functionality through precise electrical interconnection.

Design Key Points for Optimal Performance

Designing a PWB requires attention to critical parameters to avoid issues like signal interference or manufacturing defects. Key considerations include:

Materials Used in PWB Construction

UGPCB employs high-quality materials to ensure durability and performance:

These materials are complemented by copper foils (1 oz thickness for reliable conductivity) and solder masks in colors like green, negru, blue, and white, which aid in identification and protection during the PCBA process. This material selection ensures that our PWBs meet rigorous environmental and operational demands.

Performance Characteristics and Specifications

UGPCB’s PWBs are designed for superior performance across various metrics:

Structural Description of PWB

The structure of a PWB consists of multiple layers laminated together, each serving a specific function:

Classification of PWB Products

UGPCB classifies PWBs based on key parameters to cater to different needs:

Production Process Overview

The manufacturing of PWBs at UGPCB follows a streamlined process to ensure quality and consistency:

  1. Design and Fabrication: Using CAD tools, designs are translated into photoplots, considering parameters like min trace/space of 1.5mil.

  2. Pregătirea materialelor: FR-4 or High TG FR-4 substrates are cut and cleaned.

  3. Lamination and Drilling: Layers are bonded under heat and pressure, and holes are drilled for vias and components.

  4. Copper Plating and Etching: Copper is deposited and etched to form circuits, with thickness controlled to 1 oz standards.

  5. Tratament de suprafață: Application of Gold, Sângera, or OSP to protect and prepare the board for PCBA.

  6. Testing and Inspection: Electrical tests and visual checks verify compliance with specifications, such as thickness tolerance (0.13mm-8.0mm). This efficient workflow supports high-volume PCB manufacturing while maintaining precision.

Applications and Usage Scenarios

UGPCB’s PWBs are utilized in a broad spectrum of industries, demonstrating their versatility:

Product Features and Advantages

UGPCB’s PWB manufacturing stands out due to its exceptional features:
