Automated PCB Trimming and Grinding Line

Revolutionizing PCB Manufacturing: UGPCB’s Advanced Automatic Trimming and Grinding Line

In the rapidly evolving Printed Circuit Board (PCB) and Printed Circuit Board Assembly (PCBA) industry, manufacturing excellence hinges on precision, efficiency, and technological innovation. At UGPCB, we are committed to staying at the forefront of this evolution. Our recent integration of the state-of-the-art Automatic Trimming and Grinding Line marks a significant leap forward, enhancing our PCB manufacturing capabilities and solidifying our position as a leader in high-quality PCBA solutions. This article explores the features, benefits, and industry impact of this groundbreaking addition to our production facility.

The Critical Role of Trimming and Grinding in PCB Fabrication

After the multilayer lamination process in PCB fabrication, panels require precise edge profiling to remove excess material, achieve accurate dimensions, and create smooth, rounded edges. Traditionally, this involved multiple separate steps—drilling target holes, routing, edge grinding, corner rounding, marking, and cleaning—each requiring manual handling, significant labor, and increasing the risk of misalignment or damage. This multi-stage process was not only time-consuming but also created bottlenecks in achieving high-throughput multilayer PCB production.

The automatic trimming and grinding line revolutionizes this by consolidating these discrete operations into a single, seamless, automated workflow. This integration is particularly crucial for advanced PCB designs used in high-frequency applications, automotive electronics, and AI-driven hardware, where impeccable panel quality and dimensional stability are non-negotiable.

Technical Specifications of UGPCB’s Automatic Trimming and Grinding Line

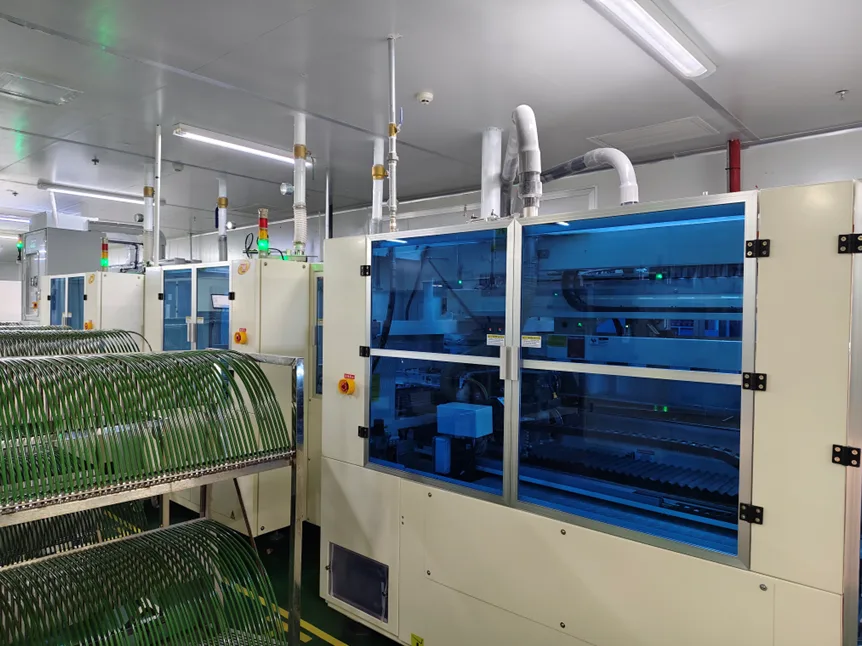

UGPCB has invested in a cutting-edge system incorporating the latest technological advancements. Our line is engineered for superior performance, built around the core needs of modern PCB manufacturing services.

Fully Automated Operation: The line integrates automatic feeding, optical recognition, trimming, grinding, corner rounding, marking, cleaning, and drying into one continuous flow. This automation is the backbone of our high-quality PCB manufacturing.
High-Precision Dual CCD Optical Alignment: Unlike conventional single CCD systems, our line features a dual CCD alignment system. The first CCD performs a pre-alignment to confirm the overall panel position, while the second precisely identifies and locates target holes. This eliminates misalignment-caused errors and false rejections, ensuring flawless processing and maximizing yield.
Advanced PCD Diamond Tooling: We utilize specialized PCD diamond trimming and grinding knives configured in a four-knife set. These tools are engineered to simultaneously execute trimming and edge grinding, delivering a flawless finish free of burrs and neat rounded edges. Our knives are compatible with a wide range of materials, including standard FR4 PCBs, high-frequency laminates, and heavy copper boards, with a processing thickness range of 0.13 mm to 8.0 mm.
Intelligent Dust Collection: A patented semi-enclosed dust collection system is critical for equipment longevity and stability. By minimizing abrasive dust contamination of mechanical components, this system drastically reduces wear and tear, maximizing machine uptime and Mean Time Between Failures (MTBF).
Energy-Efficient Design: In an industry often characterized by high energy consumption, our automatic line features an optimized dust collection chamber that reduces the required air volume. This intelligent design slashes the power demand of the extraction system, leading to significant cost savings and a reduced carbon footprint for a more sustainable PCB and PCBA manufacturing process.

Tangible Benefits for Our PCB and PCBA Clients

The integration of this automated line translates into direct, measurable advantages for our clients seeking reliable PCB suppliers and PCBA manufacturers.

Unmatched Precision and Superior Quality: The combination of dual CCD alignment and PCD diamond tools results in consistently perfect panel edges and dimensions. This precision is critical for subsequent PCBA processes, as it ensures perfect panel fit into automated assembly fixtures and prevents any alignment issues during solder paste application and component placement. This directly contributes to higher PCBA assembly yields.
Dramatically Enhanced Production Efficiency: The fully automated, continuous-flow operation eliminates manual handling between stages. This inline PCB trimming and grinding process increases output by up to 70% compared to traditional methods. Our line supports large panel sizes up to 570x740mm, making it ideal for high-volume production runs.
Significant Reduction in Operating Costs: Automation substantially reduces labor dependency. One operator can now manage the entire trimming and grinding process that previously required multiple personnel. Furthermore, the energy-efficient design and reduced tooling wear lower ongoing operational expenses, savings we pass on to our clients through competitive PCB and PCBA pricing.
Exceptional Flexibility for Complex Orders: The ability to handle a vast thickness range (0.13-8.0mm) and large-format panels makes our line perfectly suited for a diverse product mix. Whether you need prototype PCB services or high-volume production for complex multilayer PCBs, UGPCB’s automated line delivers consistent, high-quality results.

UGPCB’s Commitment to Technological Leadership

Investing in an automatic trimming and grinding line is a testament to our core philosophy: leveraging technology to deliver unparalleled value. This equipment aligns perfectly with the Industry 4.0 paradigm, generating valuable data on production throughput, tooling life, and machine performance. This data-driven approach allows us to continuously optimize our processes, ensuring we remain your most reliable partner for advanced PCB manufacturing.

The Future is Automated and Precision-Driven

The global PCB market is poised for growth, driven by the expansion of AI, 5G, and automotive electronics. In this competitive landscape, manufacturers must adopt advanced technologies to meet escalating demands for quality and performance. UGPCB’s commitment to innovation, exemplified by our automatic trimming and grinding line, ensures that we are not just keeping pace but setting the standard.

Ready to experience the UGPCB advantage for your next PCB or PCBA project? Contact us today to request a quote or discuss how our advanced manufacturing capabilities can help you bring your most challenging designs to life with precision and efficiency.
