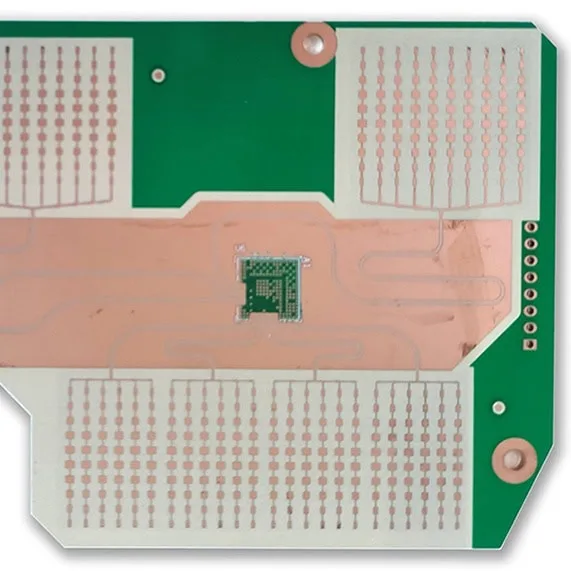

UGPCB RO3003 Ceramic Hybrid High Frequency PCB Product Overview & Definition

In the demanding fields of wireless communications, aerospace, and advanced test instrumentation, stable and efficient signal transmission is paramount. UGPCB’s RO3003 Ceramic Hybrid High Frequency PCB is a sophisticated circuit board solution designed to meet these rigorous requirements. It ingeniously combines high-performance Rogers RO3003 ceramic-filled PTFE material with standard FR4 substrate, creating a hybrid dielectric high-frequency PCB that delivers an optimal balance of electrical performance, mechanical strength, and cost-effectiveness.

This 6-layer RO3003+FR4 hybrid laminate, with its stable dielectric constant (Dk=3.00), excellent radio frequency (RF) properties, and reliable multilayer construction, is the ideal choice for applications requiring mixed high-frequency signal and digital signal processing.

Product Classification

Technical Classification: Rigid Multilayer High-Frequency Hybrid Dielectric Printed Circuit Board. Specifically categorized as a “Rogers RO3003 and FR4 Hybrid Laminate High-Frequency Circuit Board.”

Critical Design Considerations

Successful design of an RO3003 hybrid high-frequency PCB requires focus on several key aspects:

• Impedance Control: The stable Dk value of RO3003 material (3.00 ± 0.04) enables precise 50-ohm or 75-ohm impedance control, which is foundational for signal integrity in high-frequency circuit boards.

• Hybrid Stack-up Planning: Clearly delineate high-frequency regions (using RO3003) from standard digital/power regions (using FR4). Intelligent layer stack-up design is crucial for optimizing performance and cost.

• Thermal Management: While RO3003 offers better thermal conductivity (0.43 W/m·K) than standard FR4, high-power RF applications may still require thoughtful layout planning and potential thermal vias for heat dissipation.

• Material Interface Handling: Ensuring excellent bond strength between RO3003 and FR4 during lamination is critical to prevent delamination and ensure overall PCB reliability.

How It Works & Structural Features

Operating Principle:

In a hybrid high-frequency PCB, RF signals primarily propagate through the RO3003 dielectric layers. The very low dissipation factor (Df) of RO3003 minimizes signal energy loss, while its stable dielectric constant ensures predictable signal phase. The FR4 layers provide mechanical support and host control circuitry and power distribution networks.

Structural Features:

• Hybrid Dielectric Construction: Core high-frequency layers utilize Rogers RO3003 (0.762mm thick), while outer and non-critical layers use FR4, optimizing performance and cost.

• Stable Lamination: 6-layer construction with a precise finished thickness of 2.0mm, meeting most mechanical assembly requirements.

• Reliable Surface Finish: Features Immersion Gold (ENIG) surface treatment, providing a flat surface, excellent solderability, and oxidation resistance for high-frequency PCBs, suitable for fine-pitch components and wire bonding.

• High Safety Standard: Laminate flammability rating is UL 94V-0, ensuring product safety.

Key Performance Parameters

• Dielectric Constant (Dk): 3.00 ± 0.04 @ 10 GHz

• Layer Count & Thickness: 6 Layers, Finished Thickness 2.0 mm

• Copper Weight: 1 OZ (35μm)

• Dielectric Thickness: 0.762 mm (RO3003 core layer)

• Thermal Conductivity: 0.43 W/m·K

• Flammability Rating: UL 94V-0

• Surface Finish: Immersion Gold (ENIG)

Core Advantages & Benefits

1. Superior High-Frequency Performance: Enables stable, low-loss transmission, optimized for RF circuit boards and microwave applications.

2. High Cost-Effectiveness: Hybrid design significantly reduces high-frequency PCB cost compared to all-RO3003 boards while maintaining critical signal performance.

3. Excellent Mechanical Stability: The inclusion of FR4 enhances board rigidity, making it easier to process and assemble than pure ceramic PTFE boards.

4. High Reliability: Stringent process controls ensure a delamination-free hybrid laminate, and the ENIG finish ensures long-term reliability.

5. Design Flexibility: Allows engineers to integrate high-performance RF circuits and standard digital logic on the same board, simplifying system architecture.

Production Process Overview

UGPCB employs proven hybrid lamination processes:
Material Prep → Inner Layer Imaging → RO3003/FR4 Lamination → Drilling → Hole Metallization → Outer Layer Imaging → Impedance Control → ENIG Surface Finish → Solder Mask & Silkscreen → Electrical Test → Final Inspection.
We utilize advanced laser drills and controlled-depth routing to ensure precise fabrication of high-frequency microwave PCBs.

Primary Application Scenarios

This RO3003 Ceramic Hybrid High Frequency PCB is widely used in:

• Base Station Antennas & RF Subsystems: e.g., 5G NR base stations, microwave backhaul equipment.

• Satellite Communication Equipment: Low-noise amplifiers (LNAs), up/down converters.

• Automotive Radar Systems: 77 GHz automotive collision avoidance radar sensors.

• Test & Measurement Instruments: Core boards for spectrum analyzers, vector network analyzers.

• High-Performance Computing & Servers: Critical signal channels in high-speed backplane connectors.

(Image Suggestion: Conceptual graphic showing PCB integration into 5G antenna or automotive radar module)
Alt Tag: Application concept of RO3003 hybrid high-frequency PCB in a 5G antenna radio unit or automotive radar system.

Why Choose UGPCB for Your RO3003 Hybrid PCB?

We are more than a manufacturer; we are your partner in high-frequency circuit solutions. UGPCB specializes in high-frequency, high-speed PCB fabrication. Our team of expert engineers and full suite of advanced equipment supports you from design review and precise impedance simulation to strict process control and 100% electrical testing. We ensure every RO3003 PCB shipped meets the highest standards for performance and reliability.

Your High-Frequency Project Partner

Ready to integrate reliable, high-performance RO3003 hybrid PCBs into your design?

Our technical sales team is ready to assist with free design for manufacturability (DFM) review, impedance calculation support, and a fast, competitive quote.

Request a Quote Today!

📧 Send your Gerber files and specifications to our sales team.
💬 Use our live chat for immediate technical inquiries.

Let UGPCB help bring your most advanced RF and microwave designs to life with precision and quality. Contact our experts now to discuss your hybrid PCB requirements.
