Rogers PCB – The Superior Choice for High-Frequency Microwave Circuits

In the era of rapid technological advancement in 5G communications, ミリ波レーダー, and satellite navigation, signal transmission speed and precision have become critical system performance determinants. Rogers high-frequency PCBs offer excellent dielectric constant (DK) 範囲 (2.2–16), ultra-low dissipation factor (Df), and outstanding temperature stability. These properties make them the ideal substrate choice for high-performance RF and microwave circuit designs.

📥 Get a Fast Rogers PCB Quote

私. Rogers PCB Overview: Redefining High-Frequency Circuit Performance

ロジャース プリント基板 use specialty high-frequency laminates produced by Rogers Corporation. Unlike conventional FR-4 epoxy glass fabric substrates, Rogers PCBs use ceramic-filled polytetrafluoroethylene (PTFE) or ceramic-hydrocarbon composites as the core dielectric. This unique material composition makes them irreplaceable in high-frequency microwave applications.

Market Update: According to the latest 2025 data from the China Electronic Materials Industry Association (CEMIA) and Prismark, China‘s high-frequency circuit board market reached RMB 22.8 十億, a 23.2% year-on-year increase from RMB 18.5 10億インチ 2024. Products using high-end substrates like Rogers captured over 35% 収益の, driven by emerging applications such as millimeter-wave radar and 1.6T optical modules. The global Rogers PCB market is projected to grow from USD 2.21 10億インチ 2024 to USD 3.5 10億 2035.

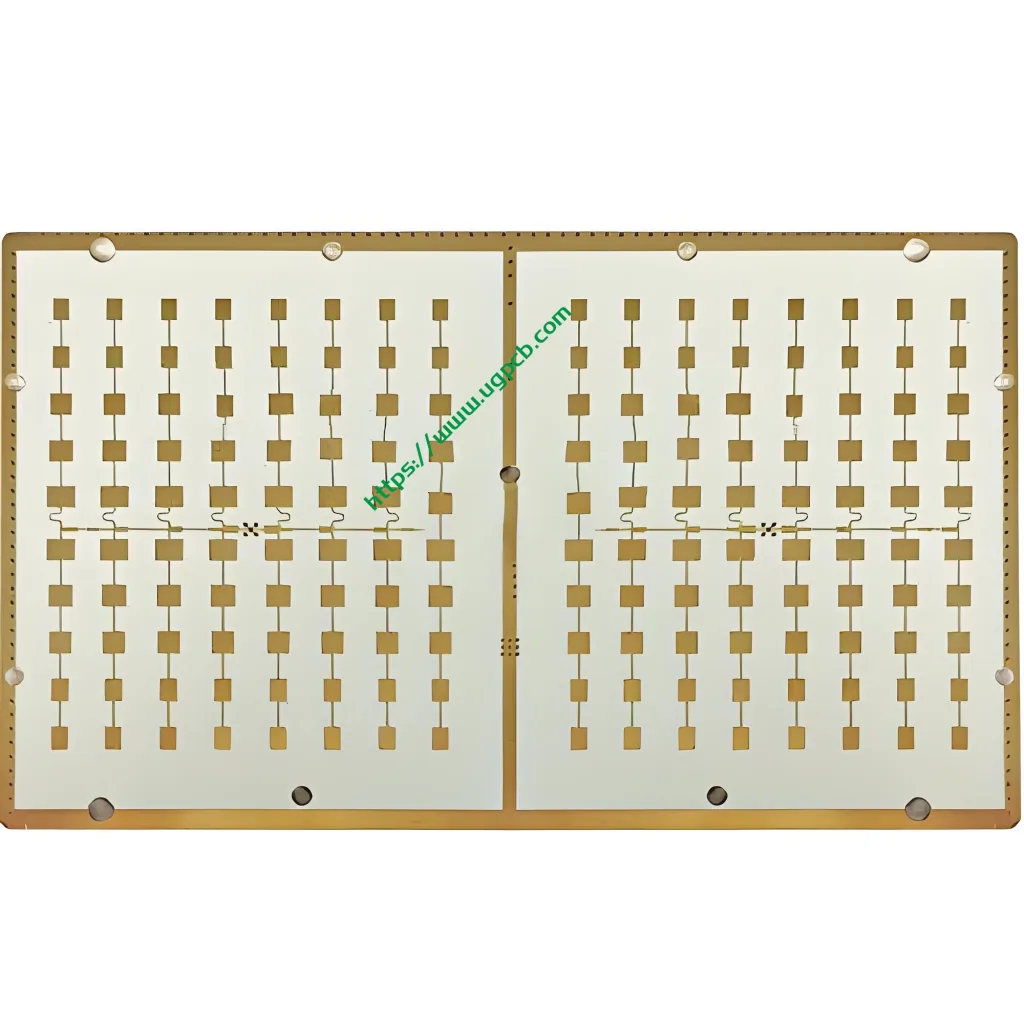

UGPCB Rogers high frequency PCB printed circuit board

Ⅱ. What Is a Rogers PCB? Core Technology Essentials

A Rogers PCB is a printed circuit board manufactured using Rogers Corporation’s specialty high-frequency laminates. Compared to traditional PCBs, Rogers circuit boards offer superior performance in three key dimensions:

1. Low Dielectric Constant and Temperature Stability: Rogers PCB materials have a Dk range of 2.2 に 16 with an exceptionally low thermal coefficient of dielectric constant (TCDk). 例えば, RO4350B material has a Dk of 3.48 ±0.05, with a variation of less than 50 ppm/°C across the -50°C to 150°C temperature range. This ensures consistent signal transmission characteristics whether in polar low temperatures or equatorial high-temperature environments.

2. Ultra-Low Dissipation Factor: Rogers materials achieve a Df as low as 0.0004 (RT /デュロイドの場合 5880), far below conventional FR-4‘s 0.02. In 77GHz automotive radar applications, RO3003 material keeps signal attenuation to 1.3dB/inch for 5 mil laminates, significantly improving radar detection accuracy.

3. Excellent Thermo-Mechanical Stability: Rogers high-frequency PCBs combine low moisture absorption (<0.03% typical for PTFE-based materials) with good thermal conductivity (0.50–0.66 W/m·K typical for RO4000 series). This ensures stable performance even in humid and hot environments. In aerospace applications, their low outgassing characteristics meet the demanding requirements of vacuum environments.

Key Parameters at a Glance

パラメーター	Specification Range
材料タイプ	Rogers Ceramic-Filled PCB / Hydrocarbon Composite
誘電率 (DK)	2.2 - 16
レイヤー数	1 Layer – Multilayer Hybrid PCB
仕上がり板厚	0.1mm – 12mm
銅の重量	0.5oz – 3oz
表面仕上げ	浸漬シルバー, 同意する, OSP
Quality Standard	IPC-6012クラス 2 / クラス 3
典型的なアプリケーション	High-Frequency Rogers Microwave PCB, RF Front-Ends, mmWave Antennas

Ⅲ. Rogers High-Frequency PCB Product Series and Model Selection

UGPCB provides PCB fabrication services covering the full range of Rogers materials. Each series suits different frequency ranges and budget requirements. Below is a detailed breakdown of the four major series:

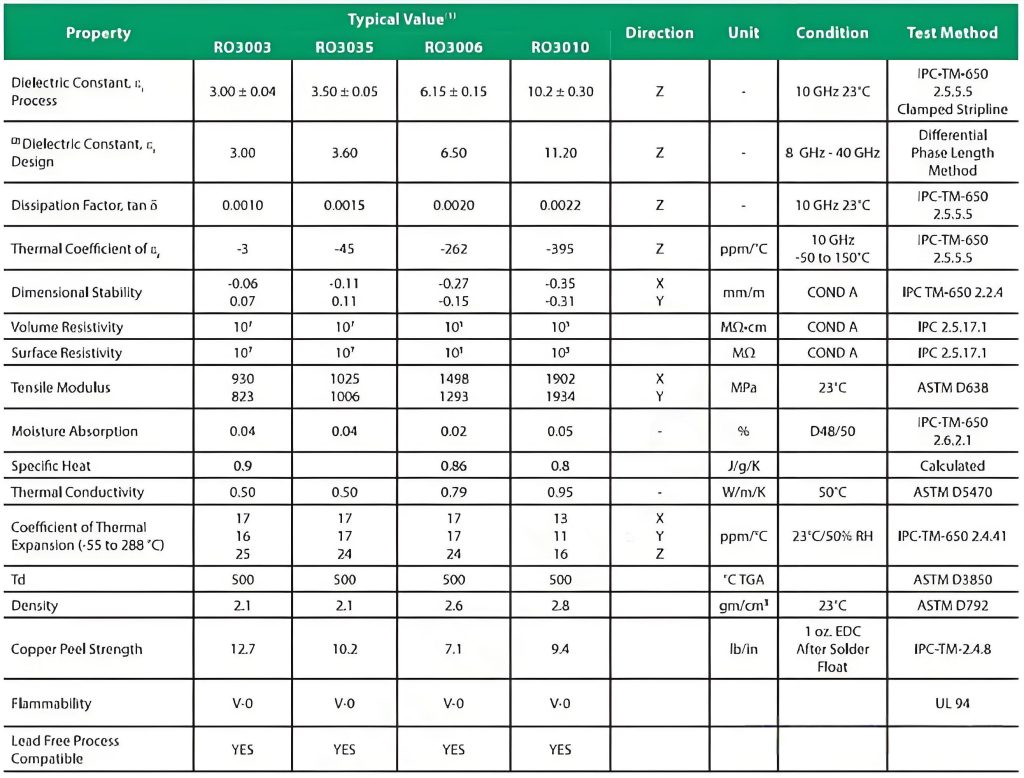

1. RO3000® Series: The Top Choice for Millimeter-Wave Radar

Representative Models: RO3003, RO3003G2, RO3006, RO3010
誘電率 (DK): 3.0 - 10.2 @ 10GHz
損失係数 (Df): 0.001 - 0.002 @ 10GHz
コアの利点: Based on ceramic-filled PTFE, the Dk remains stable over a wide temperature range. RO3003 has a Z-axis CTE of 24 ppm/°C and X/Y-axis CTE of 17 ppm/°C, which matches copper foil well, ensuring via reliability under severe thermal cycling. With a Df of 0.0013 at 10GHz for the RO3003, it is one of the lowest insertion loss commercial materials available.
典型的なアプリケーション: 77GHz automotive millimeter-wave radar, 衛星通信, RF couplers, GPSアンテナ.

2. RO4000® Series: The Perfect Balance of Cost and Performance

Representative Models: RO4003C, RO4350B, RO4835, RO4360G2
誘電率 (DK): 3.38 - 6.15 @ 10GHz
損失係数 (Df): 0.0027 - 0.0040 @ 10GHz
コアの利点: These hydrocarbon ceramic composites are fully compatible with standard FR-4 fabrication processes, which significantly reduces manufacturing costs. RO4835 offers ten times the oxidation resistance of RO4350B, making it ideal for outdoor base station antennas and high-temperature environments. RO4360G2 features thermal conductivity up to 0.8 W/m·K and a Z-axis CTE as low as 30 ppm/°C, providing excellent heat dissipation in high-power applications.
典型的なアプリケーション: 5G base station antennas, RF power amplifiers (PA), 受動部品, point-to-point microwave communications.

3. RT/デュロイド® 5000/6000 シリーズ: The Industry Benchmark for Extreme Performance

Representative Models: RT/デュロイド 5880, 5870, 6002, 6006, 6010lm
誘電率 (DK): 1.96 - 10.2 @ 10GHz
損失係数 (Df): ASと同じくらい 0.0009 @ 10GHz (RT5880)
コアの利点: Pure PTFE-based materials, recognized as the most stable high-frequency materials in the industry, featuring ultra-low loss and minimal Dk variation with frequency. RT5880 is known for its Dk of 2.20 ±0.02 and Df of 0.0009. RT/DUROID 6010LM, with a Dk of 10.2 ±0.25, is specifically designed for miniaturized circuits requiring a high dielectric constant.
典型的なアプリケーション: Satellite communication LNBs, precision phased array radar, millimeter-wave imaging, aerospace electronic systems.

4. TMM® Series: Ideal for High-Temperature, 高信頼性アプリケーション

Representative Models: TMM3, TMM6, TMM10, TMM13i
誘電率 (DK): 3.27 - 12.85 @ 10GHz
損失係数 (Df): 0.001 - 0.002 @ 10GHz
コアの利点: Ceramic-filled thermoset materials with excellent mechanical strength and creep resistance. They offer a maximum operating temperature of 170°C and can be processed using standard PCB fabrication methods.
典型的なアプリケーション: Aerospace communication systems, パワーアンプ, フェーズドアレイアンテナ, 軍用レーダー.

Ⅳ. How Rogers PCBs Work at High Frequencies – The Source of Signal Integrity

The superior signal integrity of Rogers PCBs at high frequencies comes from the synergy between material properties and electromagnetic wave propagation principles.

誘電率 (DK) and Signal Propagation Speed

The speed of an electromagnetic wave in a dielectric medium is inversely proportional to the square root of the dielectric constant:

v = c / √εᵣ

where c is the speed of light in a vacuum (~3×10⁸ m/s) and εᵣ is the relative permittivity. For Rogers RT5880 (Dk≈2.2), the signal travels at 67% of the speed of light, significantly faster than the 49% achieved with ordinary FR-4 (Dk≈4.2). Faster propagation speeds mean shorter signal delays and higher data throughput.

Precise Characteristic Impedance Control

Characteristic impedance is a critical parameter in high-frequency circuit design. For a microstrip line, it is approximated by:

z₀= 87 / √(εᵣ + 1.41) ×ln(5.98h / (0.8w + t))

where h is the dielectric thickness, w はトレース幅です, Tは銅の厚さです. Rogers PCB materials provide exceptional Dk stability across the entire frequency range—for example, RO3003 maintains a Dk of 3.00 ±0.04 at 10GHz—and an extremely low TCDk (<50 ppm/°C). This stability is the foundation for achieving characteristic impedance control within ±5%.

損失係数 (Df) and Insertion Loss

Insertion loss increases with frequency and can be expressed as:

α = k × f × √εᵣ × tan δ

where tan δ is the dissipation factor, f is the operating frequency, k は定数です. At 77GHz, FR-4 (DF≈0.02) would exhibit insertion losses exceeding 20 db/inch, making signal transmission nearly impossible. 対照的に, RO3003 (Df≈0.0013) achieves an insertion loss of only 1.3dB/inch for 5 mil laminates, which is about 1/15th the attenuation of FR-4. This dramatic difference explains why Rogers PCBs are essential for millimeter-wave radar applications.

📷 Image Suggestion 4: Dk stability curve of Rogers materials across frequency ranges (1GHz to 77GHz)

Image ALT Tag: Rogers PCB dielectric constant stability over frequency range from 1GHz to 77GHz for RO3003 RO4350B and RT5880 materials

V. Broad Applications of Rogers PCBs in Cutting-Edge Fields

Thanks to their excellent high-frequency performance and reliability, Rogers PCBs are widely used in the most demanding technology sectors:

📡 5G Communications and Base Stations: Rogers PCBs are the core substrate material for 5G base station antenna feed networks, RFフロントエンドモジュール, and power amplifiers. The RO4000 series’ compatibility with FR-4 processes makes it the top choice for large-scale commercial 5G base stations. RO4835 provides ten times the oxidation resistance of RO4350B, making it dominant in outdoor base station antennas.

🚗 Automotive Electronics and ADAS: With the ADAS (Advanced Driver Assistance System) adoption rate in domestic passenger cars exceeding 61% で 2025, 77GHz millimeter-wave radar has created explosive growth in demand for high-frequency PCBs. Average high-frequency PCB usage per vehicle has quadrupled compared to traditional models, and the market for automotive high-frequency boards continues to grow at over 45% 毎年. RO3003, with its Dk of 3.00 ±0.04 and exceptional stability from -50°C to 150°C, has become the standard material for 77GHz automotive radar.

🛰️ Aerospace and Defense: Under extreme temperature variations and vacuum conditions, Rogers PCBs, with their low moisture absorption and excellent thermo-mechanical stability, are widely used in navigation systems, satellite communication modules, 軍用レーダー, and missile guidance systems. RT/デュロイド 6000 series materials exhibit a Dk variation of ≤±0.03 at 200°C, ensuring signal consistency throughout the aerospace product‘s entire lifecycle.

🔬 Medical Imaging Equipment: The precise handling of high-frequency signals in MRI and ultrasound diagnostic equipment depends on the stable dielectric constant and ultra-low loss characteristics of Rogers PCBs. The TMM series’ chemical resistance ensures long-term reliability in medical devices.

VI. Rogers PCB Structure and Hybrid Design

UGPCB provides complete Rogers PCB structure solutions, from single-layer to multi-layer designs, with extensive engineering experience in multi-layer hybrid laminates.

Hybrid Stackup – The Cost-Effective Choice

Rogers high-frequency materials cost approximately 5 に 15 times more than standard FR-4. In most volume production projects, UGPCB uses a hybrid Rogers + FR4 stackup solution. This approach ensures excellent RF signal transmission quality while optimizing overall manufacturing costs.

Common Hybrid Stackup Configurations:

1. Top-Layer Rogers + Bottom-Layer FR4 (2+N layers): The top 1–2 layers use Rogers high-frequency material for antennas or RF traces, while the remaining layers use FR4 for digital circuits and power distribution. This configuration is ideal for 5G Active Antenna Units (AAU) and millimeter-wave radar modules.

2. Middle-Layer Rogers Core + Outer FR4 Layers (N+Rogers+N layers): The Rogers material serves as the core signal layer, with FR4 protective layers on top and bottom. This configuration provides excellent rigidity, making it suitable for avionics equipment that requires mechanical strength.

3. Full Rogers Multilayer Boards: These are used only for extreme performance millimeter-wave applications (such as 77GHz phased array radar and 94GHz imaging radar) or high-end research prototypes.

Key Considerations for Hybrid Design:

Impedance Compensation Design: Using process-aware impedance modeling and TDR scans of process validation boards (PVB), we can build an accurate impedance prediction model and control impedance deviation after hybrid lamination to within ±3%.
Stackup Symmetry Principle: The multi-layer stackup must be symmetrical about the central plane. Materials and copper layers must be arranged symmetrically to avoid residual stress and board warpage after lamination.
CTE Matching Management: UGPCB carefully selects prepreg materials and optimizes lamination parameters—using a three-stage ramp heating profile with zone pressure compensation—to control the CTE difference between layers, keeping warpage below 30 µm/m.

VII. UGPCB Rogers PCB Manufacturing Process – Quality You Can Trust

UGPCB has a mature, complete Rogers PCB fabrication process. Each step is carefully designed and strictly controlled to ensure that every board meets the rigorous requirements of IPC-6012 Class 2 またはクラス 3.

1. Material Selection and Preprocessing

We precisely match the Rogers PCB material type (RO4003C, RO4350B, RO5880, 等) to each customer‘s design specifications for Dk, ボードの厚さ, copper weight, 等. All incoming materials undergo a 100% 目視検査. For PTFE-based Rogers materials, we perform plasma activation pretreatment to increase surface energy above 65 mn/m, ensuring excellent coating adhesion.

2. Inner Layer Circuit Fabrication

We use レーザー直接イメージング (LDI) 装置 to accurately transfer circuit patterns to the Rogers substrate, achieving line width/spacing accuracy down to 1.5 mil with a coefficient of variation as low as 2.8%. エッチング後, AOI equipment inspects for defects such as nicks and shorts.

3. Lamination – The Core Technology

Lamination is the most critical step for Rogers PCB performance and yield:

スタックアップ設計: We calculate precise stackup thicknesses based on impedance requirements and signal integrity simulations. We select the right prepreg between Rogers and FR4 layers to ensure strong interlayer bonding.
Lamination Parameter Control: A three-stage ramp-up heating profile (1.5℃/分) with zone pressure compensation ensures void-free lamination. We hold a constant temperature at 280°C for 30 minutes with increased edge pressure up to 0.3MPa.
Void and Warpage Control: A vacuum lamination environment and precise temperature/pressure control eliminate voids. Finished board warpage is held to below 30 µm/m, significantly better than the industry average of 80 µm/m.

4. Drilling and Plated Through-Hole (PTH) 金属化

Rogers ceramic-filled materials are hard, so we use diamond-coated drill bits with feed rates of 1.2–1.8 m/min. A step-drilling process minimizes burrs and edge chipping. Electroless copper deposition forms a uniform conductive layer on the hole wall, followed by electrolytic copper plating to build thickness.

5. Outer Layer Circuit and Surface Finish

We offer three surface finish options based on customer requirements:

同意する (エレクトロレスニッケルイマージョンゴールド): Excellent solderability and corrosion resistance.
浸漬シルバー: High conductivity and flatness for high-frequency signal transmission.
OSP (有機はんだ付け性防腐剤): Economical and environmentally friendly.

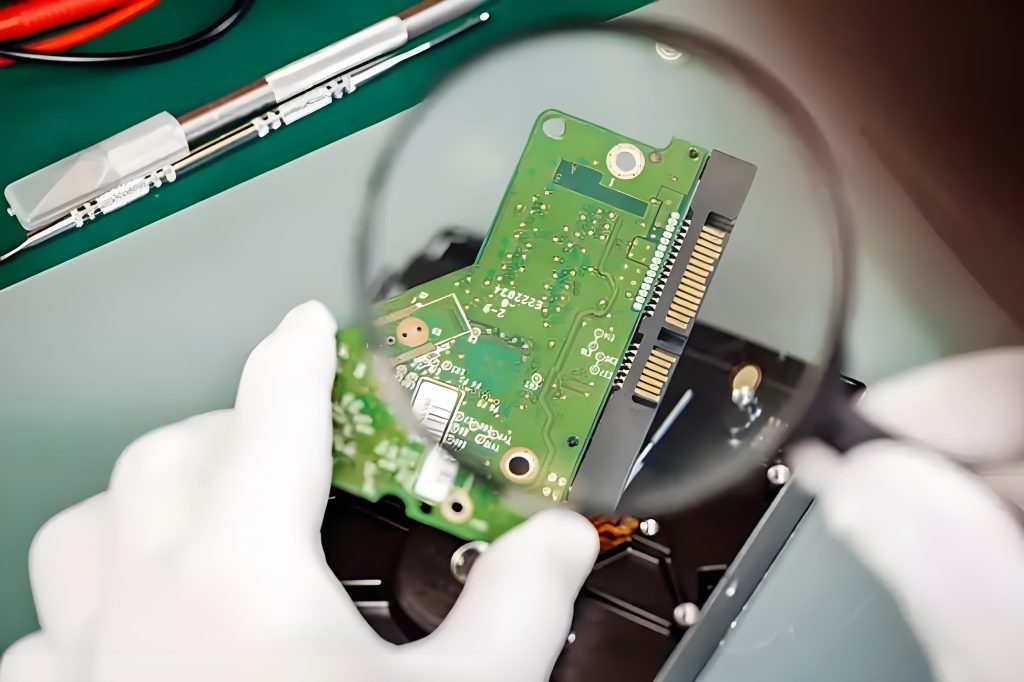

6. Final Fabrication, 検査, and Testing

インピーダンス試験: We use TDR (時間ドメイン反射測定) to scan each trace, ensuring a characteristic impedance deviation within ±5%.
電気テスト: We perform insulation resistance testing per IPC-TM-650 2.5.7 そして 100% 飛行プローブ試験.
信頼性の検証: We perform thermal stress testing (solder float, 288°C/10 seconds, 3 サイクル) per IPC-6012 Class 3 要件, with void count in hole wall sections limited to ≤1 per coupon.
微細断面分析: A metallographic cross-section microscope inspects hole wall copper thickness and integrity.

VIII. Rogers PCB Performance – Quality Assurance Under Authoritative Standards

UGPCB strictly follows industry standards from IPC, ensuring that every board meets or exceeds customer expectations.

IPC-6012 Performance Classes:

クラス 2 (Dedicated Service Electronic Products): Suitable for 5G base stations, 通信機器, and industrial controls that require continuous operation but are not mission-critical. This class has moderate tolerances for defects like voids and microcracks.
クラス 3 (High-Performance Electronic Products): Required for aerospace, 医療機器, and military systems where failure would have severe consequences. クラス 3 demands an inner layer minimum annular ring of 0.001 インチ (約. 25.4 μm) and an outer layer minimum of 0.002 インチ (約. 50.8 μm). After thermal stress testing, hole wall voids must not exceed 13 µm in length.

主要業績評価指標 (based on Rogers official datasheets and IPC test methods):

パラメーター	代表値	テスト方法
誘電率 (DK) @ 10GHz	2.20 - 16 (varies by type)	IPC-TM-650 2.5.5.5
損失係数 (Df) @ 10GHz	0.0004 - 0.0040	IPC-TM-650 2.5.5.5
熱伝導率	0.50 - 0.66 w/m・k (RO4000 series typical)	ASTM D5470 / IPC-TM-650
Z軸CTE	24 - 50 ppm/°C	IPC-TM-650 2.4.41
水分吸収	<0.03% (PTFE系) に 0.05% (RO4000 series)	IPC-TM-650 2.6.2.1
Dielectric Strength	>31.5 kV/mm typical	ASTM D149 / IPC-TM-650
体積抵抗率	>10⁷ ohm·cm @ 500V	IPC-TM-650 2.5.17

These values are based on Rogers Corporation datasheets and may vary slightly depending on material type and manufacturing process.

UL 94 可燃性評価: RO4000 series materials are UL 94 V-0 certified, meeting the fire safety requirements for electronic products.

ROHSコンプライアンス: UGPCB‘s Rogers PCB products are fully RoHS compliant, meeting environmental standards for major global markets.

IX. Why Choose UGPCB for Your Rogers PCB Needs?

Hundreds of leading technology companies worldwide choose UGPCB as their Rogers high-frequency PCB supplier. Here are our core advantages:

Full Material Support: We cover all four major Rogers series (RO3000®, RO4000®, RT/デュロイド®, TMM®) with Dk from 2.2 に 16. We also offer prepreg and bondply materials for multilayer builds.
Professional Hybrid Lamination Capability: We specialize in Rogers + FR4 multi-layer hybrid lamination, reducing material costs by 30–40% compared to all-Rogers structures while maintaining excellent signal isolation between RF and digital sections.
高精度なインピーダンス制御: Using TDR impedance testing and process-aware modeling, we hold characteristic impedance to within ±3% of the target, meeting the stringent requirements of PCIe 5.0 and high-speed SerDes.
Strict Process Control: We maintain an ISO 9001 品質管理システム with full traceability from raw material receiving to finished product shipping. We monitor key process parameters in real-time, achieving a Cpk ≥1.33.
Strong Engineering Support: Our experienced RF engineering team provides DFM review, impedance stackup calculation, and rapid prototyping services. We turn customer design concepts into production-ready products quickly.
Extensive Production Experience: 配達しました 10,000 Rogers PCB designs, ranging from simple 2-layer boards to complex 24-layer hybrid stacks, with minimum line width/spacing down to 1.5 ミル.

x. よくある質問 (よくある質問)

Q1: How much more does a Rogers PCB cost compared to FR-4?
あ: Rogers materials cost about 3 に 15 times more than FR-4, depending on the specific type and thickness. RO4000 series is about 3–4 times more, RO3000 series is about 6–7 times more, and RT/duroid 5880 is about 8–10 times more. しかし, hybrid stackup designs can reduce overall cost by 30–40%, achieving the best balance of performance and cost.

第2四半期: How do I choose the right Rogers series for my project?
あ: It depends on your operating frequency and performance requirements:

Up to 40GHz with cost sensitivity → RO4003C
Lead-free assembly or automotive applications → RO4350B
77GHz millimeter-wave radar → RO3003
Ultra-low loss up to 100GHz → RT5880
High dielectric constant for miniaturization → RT6010LM or TMM10

Q3: What is the minimum line width/spacing UGPCB can achieve on Rogers PCBs?
あ: UGPCB currently supports a minimum line width/spacing of 1.5 ミル (0.038mm) and a minimum via diameter of 6 ミル (0.15mm).

Q4: Can Rogers PCBs be finished with ENIG?
あ: はい. UGPCB offers ENIG, 浸漬シルバー, and OSP surface finishes to meet different requirements for solderability, 耐食性, and signal loss. PTFE-based boards receive plasma activation pretreatment to ensure good coating adhesion.

Q5: What is the maximum layer count for Rogers PCBs?
あ: UGPCB のサポート 1 に 20+ layers for all-Rogers and hybrid multi-layer PCBs. For conventional hybrid stackups (top-layer Rogers + bottom-layer FR4), we can support designs with 16 レイヤー以上.

XI. Why UGPCB Is Your Trusted Rogers PCB Supplier

UGPCB is a leading high-frequency PCBメーカー 中国で, specializing in Rogers PCBs, high-frequency hybrid PCBs, and microwave RF PCBs. Our engineering team has an average of over 10 years of high-frequency board production experience. We have delivered more than 10,000 Rogers PCB designs to customers across five continents in telecommunications, 自動車エレクトロニクス, と航空宇宙.

私たちのコミットメント:

✅ Professional Technical Support: Free DFM engineering review, impedance stackup calculation, and rapid cost estimation
✅ Flexible Lead Times: 3–5 days for quick-turn 2-layer prototypes, 7–10 days for 4–8 layer boards, 15–20 days for volume orders
✅ 品質保証: 100% 電気試験, AOI検査, microsection sampling, and TDR impedance testing
✅ 完全なトレーサビリティ: Complete production records and test reports retained for each batch
✅ One-Stop Service: From Gerber file to finished PCBAアセンブリ, テスト, and burn-in, with no need to manage multiple vendors

Contact us today for your Rogers PCB solution!

Whether you need rapid prototype validation or volume production, UGPCB is your trusted partner for Rogers high-frequency PCBs. Our technical experts are ready to provide the best solution for your project.
