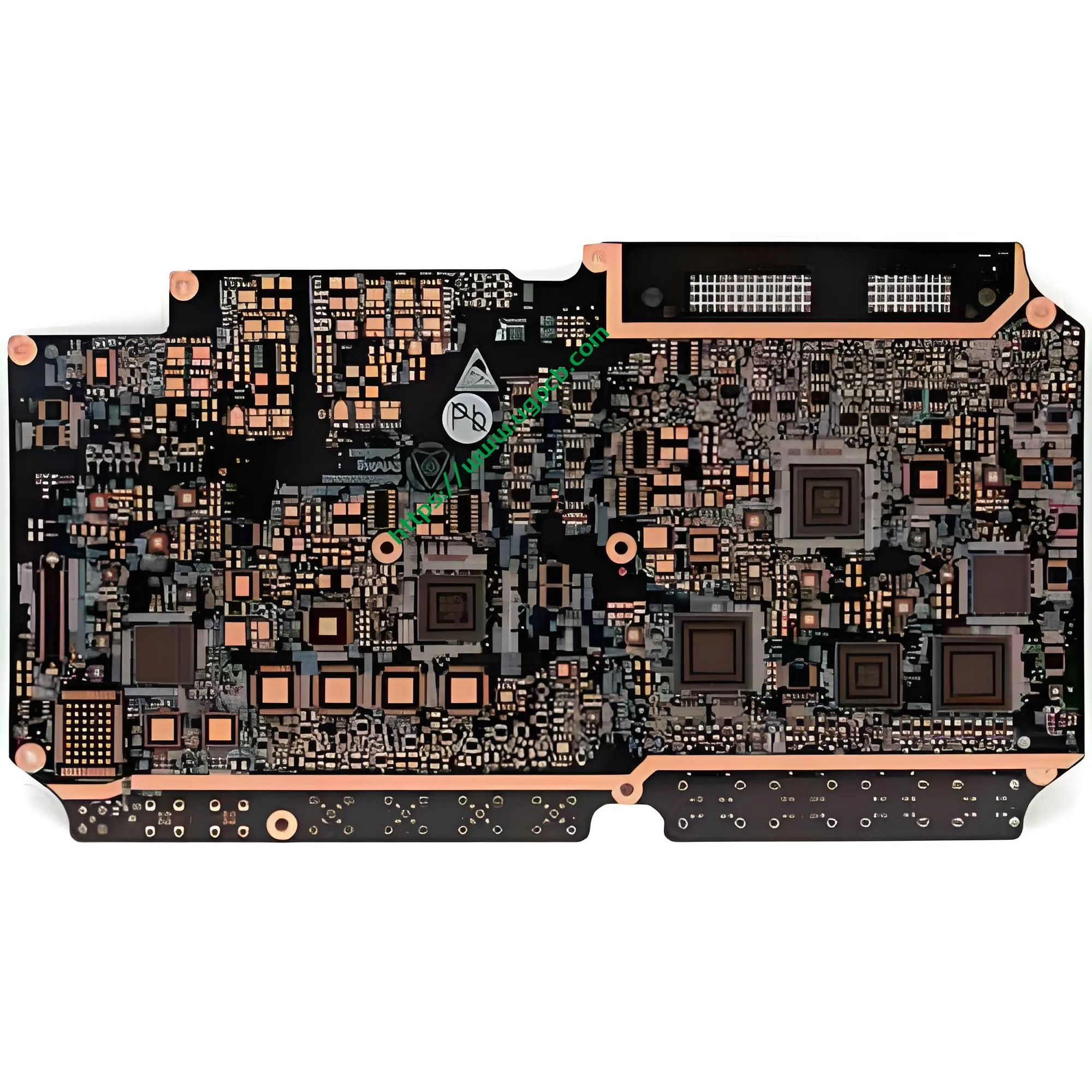

Automotive Communication 2+N+2 HDI Board

1. Product Overview: What Is an Automotive Communication 2+N+2 HDI Board?

The Automotive Communication 2+N+2 HDI Board is a high-density interconnect (HDI) printed circuit board engineered specifically for vehicle communication systems. This product adopts a 14-layer stack-up structure with S1000-2M high-performance copper-clad laminate as the core substrate material. It achieves high-density, high-reliability interlayer interconnection through an advanced process combining 2 laser drilling cycles and 3 lamination cycles.

Within the HDI PCB classification system, 2+N+2 denotes a specific build-up structure—adding 2 build-up layers on each side of the core substrate (N layer) using the sequential build-up (SBU) method. Compared to 1+N+1 (first-order HDI), 2+N+2 represents a second-order HDI solution, offering higher wiring density and more sophisticated interconnection capabilities.

UGPCB, as a professional PCB manufacturer, delivers high-quality HDI PCB products that comply with the IPC-6012FA automotive applications addendum—the industry’s most stringent reliability standard for automotive electronics.

2. Product Classification: Scientific Positioning and Technology Tier

This product can be scientifically classified across multiple dimensions:

By IPC-6012 Performance Class: Class 3/A—the highest reliability tier for automotive electronics. IPC-6012F tightens through-hole resistance change after thermal cycling from 10% to a maximum of 5% for Class 3/A, and increases minimum barrel copper thickness from 25 µm to 28 µm.

By HDI Order: Second-Order HDI (2+N+2)—a mid-complexity HDI solution positioned between first-order HDI (common in consumer electronics) and high-end any-layer HDI.

By Material Loss Tier: Mid-Loss (Df < 0.010).

By Application Domain: Automotive Electronics—in-vehicle communication, ADAS, V2X, etc.

By Flammability Rating: UL 94 V-0—the highest vertical burn rating, requiring self-extinguishment within 10 seconds with no flaming drips.

3. Core Parameters and Technical Specifications

Parameter	Specification	Reference Standard
Laminate	S1000-2M (Shengyi Technology)	IPC-4101/126
Layer Count	14 Layers	—
Board Thickness	1.6 ± 0.16 mm	IPC-6012F
Minimum Laser Via Diameter	0.10 mm	—
Minimum Mechanical Hole Diameter	0.20 mm	—
Minimum Trace Width / Spacing	75 µm / 75 µm	IPC-2221C
Aspect Ratio	8:1	IPC-2221
Glass Transition Temperature (Tg)	180°C (DSC)	IPC-TM-650 2.4.25
Thermal Decomposition Temperature (Td)	355°C	Shengyi S1000-2M Datasheet
Dielectric Constant (Dk @ 1GHz)	4.6	Shengyi S1000-2M Datasheet
Dissipation Factor (Df @ 1GHz)	0.013	Shengyi S1000-2M Datasheet
Flammability Rating	UL 94 V-0	UL 94 Standard
Special Process	2 Laser Drilling, 3 Laminations	—

Aspect Ratio Calculation is a critical process parameter in PCB manufacturing that directly determines plating quality and through-hole reliability. Per IPC-2221 guidelines, Aspect Ratio = Board Thickness ÷ Drilled Hole Diameter. For this product: 1.6 mm ÷ 0.2 mm = 8:1. IPC-2221 recommends a maximum aspect ratio of 8:1 to 10:1 for conventional electrolytic plating processes. The 8:1 design ensures reliability while fully validating UGPCB’s process capability in high-aspect-ratio through-hole plating.

4. Material Deep Dive: S1000-2M High-Performance Substrate

S1000-2M is a high-performance FR-4.0 copper-clad laminate manufactured by Shengyi Technology. It is a lead-free compatible high-Tg material.

Key Performance Parameters (Source: Shengyi Technology official datasheet and IPC-TM-650 test methods):

Parameter	Value	Test Method
Tg (Glass Transition Temperature)	180°C (DSC)	IPC-TM-650 2.4.25
Td (Thermal Decomposition Temperature)	355°C	Shengyi Datasheet
T260	> 60 minutes	IPC-TM-650
T288	30 minutes	IPC-TM-650
CTE (Z-axis, below Tg)	41 ppm/°C	IPC-TM-650
CTE (Z-axis, above Tg)	208 ppm/°C	IPC-TM-650
Peel Strength (after 288°C solder float)	1.3 N/mm	IPC-TM-650

Core Advantages of S1000-2M:

1. Mid-Loss Characteristics: With a Df of 0.013 @ 1GHz, this material offers approximately 28% lower dielectric loss compared to standard FR-4 (Df ≈ 0.018).
2. High Thermal Resistance: Tg of 180°C and Td of 355°C meet the stringent requirement of continuous operation above 125°C in automotive environments.
3. CAF (Conductive Anodic Filament) Resistance: Suitable for high-multilayer PCBs and high-humidity environments.
4. UL 94 V-0 Flammability Rating: Self-extinguishes within 10 seconds with no flaming drips.

5. Design Essentials: 2+N+2 HDI Architecture Explained

5.1 What Is the 2+N+2 Structure?

The 2+N+2 HDI board is manufactured using the sequential build-up method:

• N Layer: The core substrate layer (multilayer core formed by inner-layer lamination)
• 2 Build-up Layers on Each Side: Constructed sequentially through 2 laser drilling cycles and 2 lamination cycles on both sides of the core

2 Laser Drilling Cycles respectively form the microvias for the first build-up layer (L1-L2, L13-L14) and the second build-up layer (L2-L3, L12-L13).

3 Lamination Cycles include: core layer lamination → first build-up layer lamination → second build-up layer lamination.

5.2 Microvia Technology

• Laser Blind Vias: 0.10 mm diameter, formed using CO₂ or UV laser drilling
• Mechanical Buried Vias: 0.20 mm diameter, used for interlayer interconnection within the core
• Stacked/Staggered Via Design: Supports stacked or staggered microvia structures for maximum layout flexibility

5.3 Fine-Line Circuitry

Minimum trace width and spacing of 75 µm (approximately 3 mil) comply with IPC-2221C requirements for fine-line design. This precision supports fan-out routing for 0.5 mm pitch BGAs.

5.4 Impedance Control

With a Dk of 4.6 @ 1GHz, S1000-2M enables characteristic impedance control at 50Ω, 90Ω, and 100Ω through adjustment of trace width and dielectric thickness—meeting the signal integrity requirements of in-vehicle communication systems.

6. Working Principle: How Does an HDI Board Achieve High-Density Interconnection?

Traditional multilayer PCBs rely on through-holes that penetrate the entire board thickness for layer-to-layer connections—consuming significant routing area. HDI PCB technology overcomes this limitation through several innovations:

1. Blind Via Technology: Laser-drilled microvias connect only the outer layer to the adjacent inner layer (e.g., L1-L2) without penetrating the entire board.

2. Buried Via Technology: Mechanically drilled vias are completely contained within the core layer (e.g., L3-L12) and do not appear on the board surface.

3. Sequential Build-Up Method: Build-up layers are constructed sequentially, with each additional layer providing additional routing resources.

4. Stacked Via Interconnection: Blind vias on upper and lower layers can be stacked in alignment to create signal paths spanning multiple layers.

In a 14-layer 2+N+2 structure, a signal can travel from the surface layer (L1) through a 0.10 mm laser blind via to L2, then through a second-layer laser blind via to L3, then through a mechanical buried via within the core to L12, and finally through symmetrical build-up blind vias to the bottom layer (L14)—achieving signal transmission across 14 layers without consuming surface-layer routing area.

7. Performance Characteristics: Why Is This Board Ideal for Automotive Communication?

7.1 IPC-6012FA Automotive Standard Compliance

In December 2025, IPC (now the Global Electronics Association) officially released IPC-6012FA, the Automotive Applications Addendum to IPC-6012F Qualification and Performance Specification for Rigid Printed Boards. This addendum applies to rigid printed boards that must survive the vibration and thermal cycling environments of electronic interconnects within the automotive industry.

IPC-6012F (released October 2023) represents the most significant tightening of automotive PCB reliability requirements in over a decade. Key changes include:

• Through-Hole Resistance Change: Tightened from 10% to a maximum of 5% for Class 3/A
• Barrel Copper Thickness: Increased from 25 µm to 28 µm for Class 3/A
• IST (Interconnect Stress Testing): Changed from optional to mandatory, with a minimum of 500 cycles for Class 3/A
• Stacked Microvias: Requiring separate qualification at the stacked via level

7.2 Thermal Cycling Reliability

Automotive electronics face continuous operating temperatures above 125°C in engine compartments and EV battery-adjacent environments. With Tg of 180°C, Td of 355°C, T260 > 60 minutes, and T288 of 30 minutes, S1000-2M ensures dimensional stability and dielectric performance under extreme thermal conditions.

7.3 Signal Integrity

In-vehicle communication systems (V2X, ADAS, Automotive Ethernet) continue to push operating frequencies higher. With a Df of 0.013 @ 1GHz, S1000-2M is a mid-loss material that supports 10G–25G SerDes channels with excellent performance over link lengths up to 20 inches.

7.4 Vibration Resistance

IPC-6012FA specifically addresses automotive vibration environments. The 14-layer HDI board’s multilayer laminated structure provides excellent mechanical strength. The combination of 0.10 mm laser microvias and 0.20 mm mechanical holes ensures connection reliability under vibration.

8. Manufacturing Process: From Raw Material to Finished Product

Step 1: Inner-Layer Core Fabrication

• Core material cutting → inner-layer circuit imaging → etching → AOI inspection

Step 2: First Lamination

• Stack multiple inner-layer cores with prepreg → high-temperature high-pressure lamination → core substrate (N layer) formation

Step 3: First Laser Drilling & Plating

• First laser drilling on both sides of the core (forming L1-L2, L13-L14 microvias) → desmear → electroless copper deposition → electrolytic copper filling

Step 4: First Build-Up Lamination

• Laminate first build-up layer material on both sides of the core → Second Lamination

Step 5: Second Laser Drilling & Plating

• Second laser drilling (forming L2-L3, L12-L13 microvias) → desmear → electroless copper deposition → electrolytic copper filling

Step 6: Second Build-Up Lamination

• Laminate second build-up layer material on both sides of the core → Third Lamination

Step 7: Mechanical Drilling

• Drill 0.20 mm mechanical through-holes and buried vias (within L3-L12 core)

Step 8: Outer-Layer Circuit Fabrication

• Outer-layer circuit imaging → etching → solder mask → surface finish (ENIG, etc.)

Step 9: Final Inspection

• Electrical testing → flying probe testing → final AOI → reliability sampling (IST, thermal cycling, etc.)

9. Application Scenarios: Core Interconnection Solutions for In-Vehicle Communication Systems

1. Advanced Driver Assistance Systems (ADAS)

ADAS requires multi-sensor fusion (millimeter-wave radar, LiDAR, cameras). The 2+N+2 HDI board supports microstrip antenna integration and RF impedance control in radar modules with its high-density interconnection capability.

2. V2X (Vehicle-to-Everything) Communication

V2X modules demand integration of communication RF front-ends, baseband processing, and power management within compact spaces—making HDI PCB’s high-density characteristics an ideal choice.

3. Automotive Ethernet

10G/25G automotive Ethernet switches require stringent signal integrity control. S1000-2M’s mid-loss characteristics ensure low-loss transmission for high-speed signals.

4. Zonal Controllers

Next-generation vehicle architecture zonal controllers process massive data volumes. The 14-layer 2+N+2 HDI board provides ample routing layers and flexible interconnection structures.

5. Battery Management Systems (BMS)

EV battery management system PCBs must maintain long-term reliability in high-temperature, high-vibration environments—exactly the scenario addressed by S1000-2M material and IPC-6012FA standards.

10. Why Choose UGPCB?

• IPC-6012FA Compliance: Strict adherence to the latest automotive PCB standard released December 2025
• Advanced HDI Manufacturing Capability: Supporting 2+N+2, 3+N+3, and any-layer HDI structures
• Certified Materials: S1000-2M certified to UL 94 V-0, compliant with IPC-4101/126 specifications
• End-to-End Quality Control: Full-process inspection from raw materials to finished products, ensuring Class 3/A reliability
• Rapid Response: Professional engineering team providing DFM (Design for Manufacturability) reviews

📞 Request a Quote Today

UGPCB specializes in the R&D and manufacturing of automotive electronics HDI PCBs. Whether you need 2+N+2 HDI boards, 14-layer high-multilayer PCBs, or other automotive communication PCB solutions, we provide one-stop services from design optimization to volume production.

📧 Send your Gerber files or technical requirements to: sales@ugpcb.com

🔗 Visit the UGPCB website for an instant quote
