1. Product Overview
In the field of high-density interconnect (HDI) printed circuit boards, the 12-layer 2+N+2 board represents an important direction in advanced PCB manufacturing technology. UGPCB’s 12-layer 2+N+2 HDI board uses ISOLA high-performance substrate material, with a finished board thickness of 2.0 mm, 1 oz copper on both outer and inner layers, a minimum via diameter of 0.1 mm, line width/spacing of 0.1 mm, BGA pad diameter of 0.15 mm, and electroless nickel/immersion gold (ENIG) surface finish.

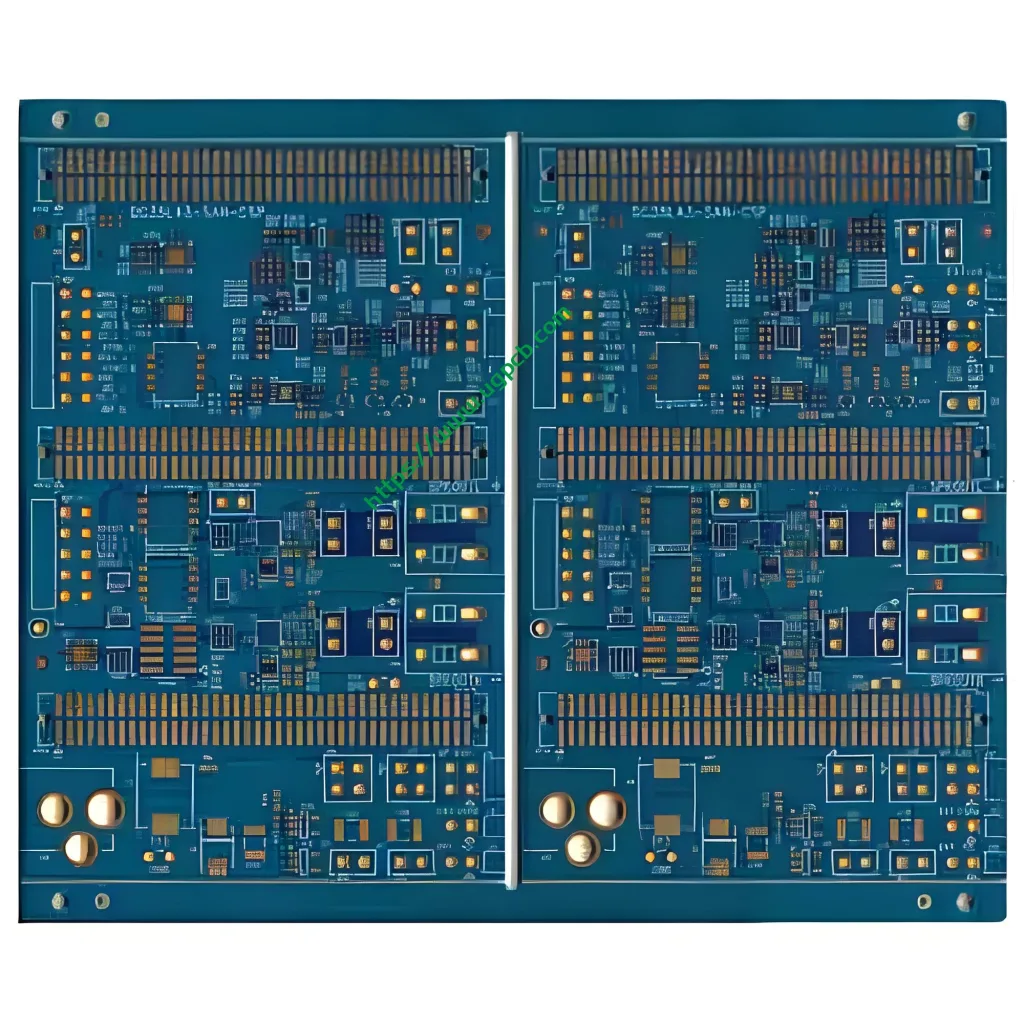

This 12-layer PCB is a typical high-density interconnect multilayer board suitable for electronic products with demanding requirements for signal integrity, routing density, and reliability. As a 2+N+2 structure HDI board, it features two buildup layers on each side, with N core layers in the middle, supporting stacked or staggered microvia structures.
2. Product Definition
2.1 What Is a 2+N+2 HDI Board?
A 2+N+2 HDI board is a high-density interconnect printed circuit board manufactured using a sequential lamination process. The “2” in its name represents two buildup layers on each side, while “N” represents the number of core layers in the middle. For this product, the total layer count is 12, meaning a 2+8+2 structure — two buildup layers on each side and eight core layers in the middle.
This HDI PCB belongs to Type III (as defined by IPC-2226), a commonly used HDI stackup solution supporting medium pin-count, high-density BGA component routing. The 2+N+2 PCB stackup design significantly improves routing density, supports successful routing of ultra-fine-pitch BGAs with pitches as small as 0.4 mm, reduces overall layer count, and minimizes signal attenuation.
2.2 Applicable International Standards
The design, manufacturing, and acceptance of this product strictly comply with the following IPC international standards:
- IPC-6012F – Qualification and Performance Specification for Rigid Printed Boards: This is the internationally recognized performance specification for rigid printed circuit boards, covering the entire process from material selection to finished product, including quality indicators, qualification, and performance requirements for each process step.
- IPC-2221C – Generic Standard on Printed Board Design: This is the foundation design standard for all documents in the IPC-2220 series, establishing generic requirements for printed board design.
- IPC-4101E – Specification for Base Materials for Rigid and Multilayer Printed Boards: This specification covers requirements for base materials (laminate or prepreg) used primarily for rigid or multilayer printed boards.
3. Design Guidelines
3.1 2+N+2 Stackup Structure Design
The 12-layer 2+N+2 PCB stackup design follows the core design principles for HDI boards:
- Priority on ground planes: Ground planes are prioritized because they transmit signals in microstrip configurations.
- Low impedance and low noise: A ground-plane-based 12-layer PCB design achieves low ground impedance and low noise.
- High-speed signal routing: Intermediate layers between planes are used for high-speed signal traces, with tight coupling between signal layers.
- Adjacent plane and signal layers: Plane layers and signal layers should be placed on adjacent layers.
- Tight plane coupling: Large-area power and ground planes should be tightly coupled together.
3.2 Signal Integrity Design
Per IPC-2221C, impedance tolerance and conductor layer isolation areas are critical considerations in high-speed PCB design. For the 12-layer 2+N+2 HDI board, special attention should be paid to:
- Impedance control: With 1 oz copper (approximately 35 μm) on both outer and inner layers, precise line width/spacing control is required to achieve target impedance.
- Microvia structure: The 0.1 mm minimum via diameter falls within the microvia category (≤ 0.15 mm as defined by IPC-2221 and IPC-6012).
- BGA breakout: The 0.15 mm BGA pad combined with 0.1 mm line width/spacing supports successful breakout for 0.4 mm pitch BGAs.
4. Operating Principles
The 12-layer 2+N+2 HDI board operates based on the interconnection and signal transmission of multiple conductive layers. Its core operating mechanisms include:
4.1 Signal Transmission Paths
HDI boards achieve interlayer electrical connections through the following via types:
- Blind vias: Connect from an outer layer to a specific inner layer without penetrating the entire board thickness.
- Buried vias: Exist only between inner layers.
- Stacked microvias: Multiple microvias stacked vertically to form a path through multiple buildup layers.
4.2 Power Distribution and Grounding
The power distribution network (PDN) of the 12-layer PCB is optimized through:
- Large-area power planes tightly coupled with ground planes, forming effective decoupling capacitance.
- Ground layers serving as return paths for signals, reducing loop inductance.
- Signal layers tightly coupled with adjacent plane layers, reducing electromagnetic interference (EMI).
5. Primary Applications and Use Cases
5.1 Target Application Areas
The 12-layer 2+N+2 HDI board, with its high-density interconnect capability and excellent electrical performance, is primarily used in the following areas:
| Application Area | Typical Products | Key Requirements |
|---|---|---|
| 5G Infrastructure | 5G base stations, AAU, RRU | High frequency, high speed, low loss |
| Data Centers | Servers, switches, storage devices | High-speed data transmission, high reliability |
| High-Performance Computing | AI accelerator cards, HPC | High-density BGA, signal integrity |
| Wired/Wireless Communications | Optical modules, routers, microwave equipment | High-frequency performance, low insertion loss |
| Automotive Electronics | ADAS, automotive radar (77 GHz) | High reliability, temperature resistance |
| Aerospace and Defense | Avionics, radar systems | Extreme environment reliability |
ISOLA materials such as TerraGreen® 400G are specifically suited for next-generation 5G infrastructure, data center systems, high-performance computing, wired/wireless communications, and AI applications, supporting extremely high data transmission rates exceeding 100 Gb/s.
5.2 Compatible Product Types
- High-end smartphone mainboards
- Communication base station RF boards
- High-performance server backplanes
- AI training/inference accelerator cards
- High-speed optical modules
- Automotive radar sensor boards
6. Product Classification
Based on standard PCB industry classification methods, this product can be scientifically categorized as follows:
6.1 By Product Structure
Rigid board — Manufactured using rigid substrate materials (FR4/ISOLA).
6.2 By Layer Count
Multilayer board — Featuring 12 conductive layers, bonded by insulating dielectric materials and interconnected through vias.
6.3 By Manufacturing Process
HDI board (high-density interconnect board) — Featuring a 2+N+2 sequential lamination structure, classified as a second-order HDI board (2+C+2).
6.4 By IPC-2226 Stackup Type
Type III stackup — 2+N+2 or higher-order stacked/staggered microvia structures.
6.5 By IPC-6012 Quality Class
Available to meet Class 2 (dedicated-service electronic products) or Class 3 (high-reliability electronic products) requirements as per customer specifications.
7. Materials Used
7.1 Substrate: ISOLA Series Materials
This product uses ISOLA high-performance copper-clad laminates. ISOLA is a leading material supplier in the high-frequency, high-speed PCB sector, with its products widely used in high-speed digital, high-frequency analog, RF/microwave, and other advanced circuit designs.
Typical properties of ISOLA materials (TerraGreen® 400G as an example):
| Property | Typical Value | Test Method |
|---|---|---|
| Glass Transition Temperature (Tg DSC) | 200°C | IPC-TM-650 2.4.25C |
| Glass Transition Temperature (Tg DMA) | 215°C | IPC-TM-650 2.4.24.4 |
| Decomposition Temperature (Td @5% weight loss) | >380°C | IPC-TM-650 2.4.24.6 |
| Dielectric Constant (Dk) | 3.15 | IPC-TM-650 2.5.5.5 |
| Dissipation Factor (Df) | 0.0017 | IPC-TM-650 2.5.5.5 |
| UL Flammability Rating | UL 94 V-0 | UL File E41625 |
ISOLA materials comply with IPC-4101/134 and offer the following advantages:
- Halogen-free and RoHS compliant
- Excellent CAF (conductive anodic filament) resistance
- Low moisture absorption
- Withstands up to 6 reflow cycles at 260°C
- FR-4 process compatible — can be processed using standard PCB equipment
7.2 Copper Foil
- Inner and outer layer copper thickness: 1 oz (approximately 35 μm)
- Copper foil type: HVLP3 (ultra-low profile) or RTF (reverse-treated) copper foil available upon request
7.3 Board Thickness
- Finished board thickness: 2.0 mm
8. Performance Specifications
8.1 Key Electrical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Layer Count | 12 layers | 2+N+2 structure |
| Finished Board Thickness | 2.0 mm | — |
| Outer Layer Copper Thickness | 1 oz (35 μm) | Finished copper |
| Inner Layer Copper Thickness | 1 oz (35 μm) | — |
| Minimum Via Diameter | 0.1 mm | Laser-drilled microvia |
| Minimum Line Width | 0.1 mm | — |
| Minimum Line Spacing | 0.1 mm | — |
| BGA Pad Diameter | 0.15 mm | Supports 0.4 mm pitch BGA |
| Surface Finish | ENIG (Electroless Nickel/Immersion Gold) | IPC-4552 compliant |
8.2 Reliability Performance
Per IPC-6012F, rigid printed boards must meet the following reliability requirements:
- Electrical performance: Insulation resistance, dielectric withstanding voltage, impedance control, etc.
- Mechanical performance: Peel strength, warpage, dimensional stability, etc.
- Environmental performance: Thermal cycling, humidity testing, salt spray testing, etc.
IPC-6012F has introduced several new requirements for microvia structure reliability, including copper wrap plating, intermediate target lands, microsection evaluation, inner layer plating, and dielectric spacing and reliability issues for microvia structures.
IPC-6012F has increased the minimum copper thickness requirement for plated-through hole barrel walls — raised to 28 μm for Class 3/A (previously 25 μm).
8.3 Thermal Performance
ISOLA materials with Tg ≥ 200°C and Td > 380°C support lead-free soldering processes and multiple reflow cycles.
9. Product Structure
The 2+N+2 HDI board via structure includes:
- Laser blind vias: From outer layers (L1/L12) to Layer 3/Layer 10 (buildup section), 0.1 mm diameter
- Laser blind vias: From Layer 3/Layer 10 to inner core layers
- Mechanical through vias: Through the core section (Layers 4-9)
- Stacked microvias: Blind vias can be stacked vertically for multi-layer connections
10. Product Features
10.1 High-Density Interconnect Capability
- 0.1 mm microvias: Support ultra-high-density routing
- 0.1 mm line width/spacing: Enable fine-line design
- 0.15 mm BGA pads: Support 0.4 mm pitch ultra-fine-pitch BGAs
10.2 Excellent Signal Integrity
- ISOLA low-loss material (Df as low as 0.0017) ensures low high-frequency signal attenuation
- 2+N+2 structure supports precise impedance control
- Ground planes tightly coupled with signal layers reduce EMI
10.3 High Reliability
- Complies with IPC-6012F Class 2/Class 3 requirements
- ISOLA material with Tg ≥ 200°C and Td > 380°C
- ENIG surface finish provides excellent solderability and oxidation resistance
10.4 Process Compatibility
- ISOLA materials are compatible with standard FR-4 process flows
- Supports sequential lamination
- Allows multiple reflow cycles
11. Manufacturing Process Flow
The 12-layer 2+N+2 HDI board manufacturing process is as follows:
11.1 Core Board Manufacturing (Inner Layers)
- Material cutting: Cut ISOLA substrate per MI requirements
- Inner layer circuit formation: Apply photoresist → expose → develop → etch → strip to form inner layer circuit patterns
- Inner layer AOI: Automated optical inspection to ensure circuit quality
- Brown oxide treatment: Enhance adhesion between inner layer copper and prepreg
11.2 First Lamination
- Stackup: Stack inner layer cores with prepreg per the stackup structure
- Lamination: Bond multiple layers into one unit under high temperature and pressure
11.3 First Drilling and Via Metallization
- Laser drilling: Drill 0.1 mm microvias
- Desmear: Remove carbonized residue from laser drilling
- Via metallization: Electroless copper deposition to form conductive layer on via walls
- Panel plating: Build up copper thickness on via walls
11.4 Buildup Layer (Outer Layer) Manufacturing
- Outer layer circuit formation: Repeat inner layer circuit formation process
- Outer layer AOI: Automated optical inspection
11.5 Second Lamination (if required)
- Secondary lamination: Multiple sequential lamination steps may be required for 2+N+2 structures
11.6 Final Finishing
- Outer layer drilling: Mechanical through-hole drilling
- Via metallization and plating: Through-hole metallization and copper build-up plating
- Outer layer circuits: Form outer layer circuit patterns
- Solder mask: Apply solder mask ink
- Surface finish: ENIG (Electroless Nickel/Immersion Gold) — electroless nickel (3–6 μm) + immersion gold (0.05–0.1 μm) per IPC-4552
- Legend printing: Silk-screen component designators and other markings
- Profile routing: Routing, V-cut, etc.
- Electrical testing: Flying probe or fixture testing
- Final inspection: Visual inspection and packaging
12. ENIG Surface Finish Advantages
This product uses ENIG (Electroless Nickel/Immersion Gold) surface finish, offering the following core advantages:
| Advantage | Description |
|---|---|
| Excellent surface flatness | Ideal for fine-pitch BGA and SMT assembly |
| Superior solderability | Supports multiple reflow cycles (3+ times) |
| Long shelf life | 12+ months storage life |
| Strong oxidation resistance | Gold layer protects copper from oxidation |
| Good electrical conductivity | Suitable for high-frequency signal transmission |
The ENIG process chemically deposits a nickel-phosphorus alloy layer (approximately 3–6 μm thickness) and a gold layer (approximately 0.05–0.1 μm thickness) on the PCB copper surface.
13. Why Choose UGPCB’s 12-Layer 2+N+2 HDI Board?
- International standard compliance: Strictly follows IPC-6012F, IPC-2221C, IPC-4101E, and other international standards
- Premium material assurance: Uses ISOLA high-performance substrate for high-frequency, high-speed performance
- Advanced manufacturing capability: Precision processing for 0.1 mm microvias and 0.1 mm line width/spacing
- Comprehensive quality control: Full-process quality management from incoming material inspection to final product testing
- Professional engineering support: Provides DFM (Design for Manufacturability) reviews and impedance design support
14. Request a Quote
UGPCB is committed to providing high-quality HDI PCB manufacturing services to customers worldwide. Whether you need a 12-layer 2+N+2 HDI board or other layer counts and structures of multilayer PCBs, we offer professional technical support and competitive pricing.
How to Get a Quote:
- Submit design files: Send Gerber files, drill files, and stackup specifications to our sales team
- Specify technical requirements: Include impedance requirements, material preferences, surface finish, quantity, etc.
- Engineering review: Our engineers will perform DFM checks to ensure manufacturability
- Receive a quote: Get a competitive price and lead time quickly
Contact Us
Send your PCB design files to our sales email or submit an inquiry through our website. Our technical team will respond within 24 hours.
