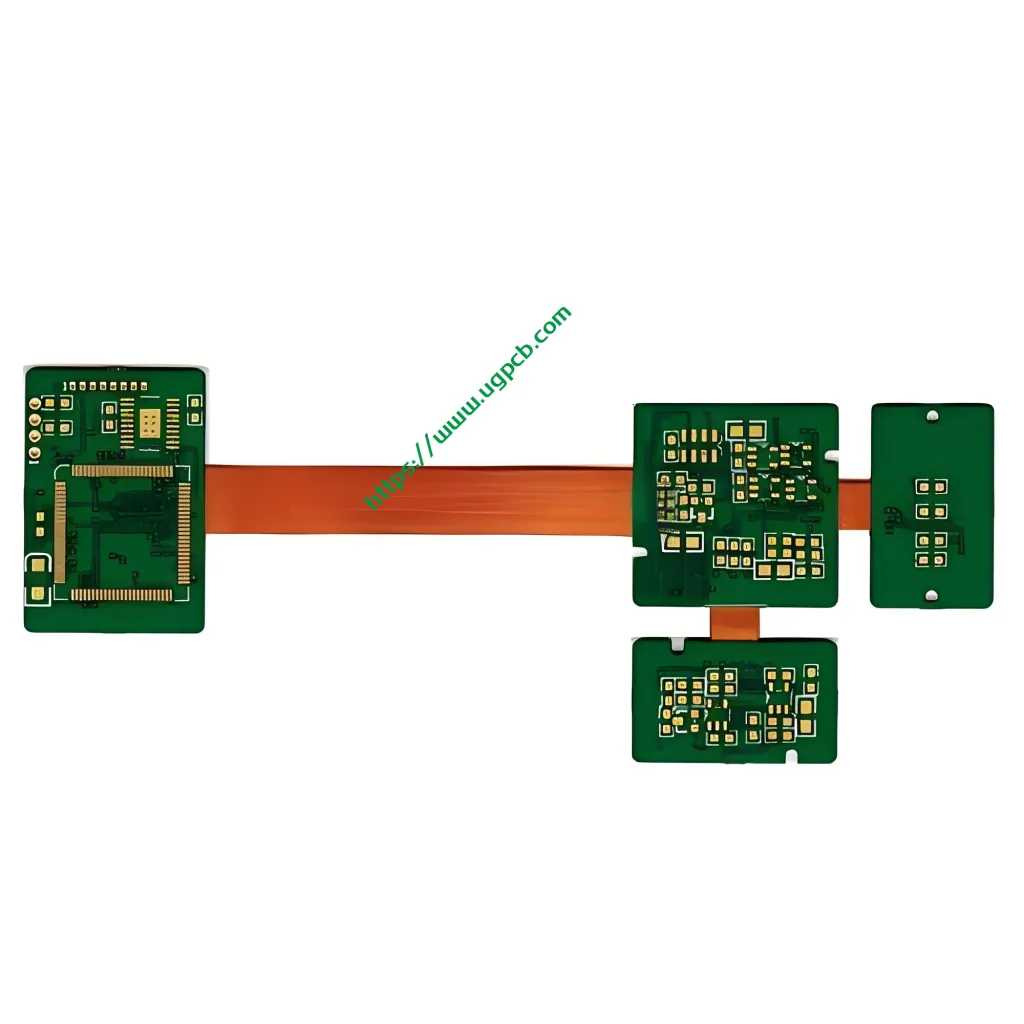

UGPCB 8-Layer High Speed Rigid-Flex PCB: The Ultimate High-Density Interconnect Solution for 5G and Beyond

As electronic products move toward high-frequency, high-speed, lightweight, and foldable designs, traditional rigid PCBs or flexible printed circuits (FPCs) alone can no longer meet the demands of complex RF modules, smartphone cameras, or medical endoscopes. As a trusted leader in PCB manufacturing, UGPCB introduces the 8-Layer High Speed Rigid-Flex PCB. With its unique 6-layer rigid + 2-layer flex integrated structure, this board delivers an optimal balance of signal integrity, mechanical stability, and space utilization.

This article provides a detailed overview of this rigid-flex PCB—covering its definition, materials, manufacturing process, and applications—to help you understand why it is the preferred choice for high-performance module PCBs.

1. Product Overview and Definition

The 8-Layer High Speed Rigid-Flex PCB is not simply a rigid board connected to a flex board via a connector. Instead, it is a unified structure formed by laminating FR4 (rigid substrate) and PI (polyimide, flexible substrate) into a single component.

• Structure Breakdown: Rigid 6L (6-layer rigid section) + Flex 2L (2-layer flexible section).
• Core Positioning: Ideal for compact electronic devices requiring high-speed signal transmission, dynamic flexing, and high reliability.

This design eliminates traditional board-to-board connectors, reducing solder joint failure risks while significantly improving electromagnetic compatibility (EMC) . It represents a key advancement in high-speed PCB technology.

2. Design Considerations and Working Principle

Design Considerations

When designing this rigid-flex PCB, UGPCB’s engineering team focuses on three critical areas:

1. Impedance Control: For high-speed signals, we strictly control trace width and spacing. This product achieves a minimum 3mil/3mil trace/space, ensuring consistent differential impedance (e.g., 90Ω or 100Ω).
2. Transition Zone Protection: The junction between rigid and flex sections is a stress concentration point. We apply teardrop compensation and optimized coverlay openings to prevent circuit breaks during dynamic bending.
3. Stack-up Symmetry: To avoid warpage caused by CTE (coefficient of thermal expansion) mismatch during high-temperature soldering, the rigid section uses a 6-layer symmetrical stack-up, while the flex section uses high-modulus PI material.

Working Principle

The flex layer (PI) acts as a bridge connecting multiple rigid functional modules. During bending, the flexible section transmits high-speed data signals (such as MIPI or USB 3.0) and power, while the rigid sections carry high-density BGA components and passive devices. This design enables the entire circuit system to fit into compact or irregular product enclosures.

3. Materials and Key Specifications

UGPCB uses premium materials from leading global brands to ensure electrical performance and reliability. Below are the key specifications for this model:

Parameter	Specification	Technical Insight
Base Material	FR4 + PI	Rigid section uses high-Tg FR4 (Tg > 150°C) for soldering stability; flex section uses polyimide (PI) for flexibility and heat resistance.
Copper Thickness	1 OZ	Finished 1 oz copper supports higher current loads and helps reduce skin effect loss in high-speed signals.
Finished Board Thickness	1.0 mm	Balances mechanical support with thin device requirements.
Surface Finish	Immersion Gold	2µ” gold thickness. Provides a flat, solderable surface with excellent oxidation resistance, ideal for fine-pitch BGAs and aluminum wire bonding.
Minimum Hole Size	0.2 mm (mechanical)	Supports high-density interconnect (HDI) designs; blind and buried vias can further save routing space.
Minimum Trace / Space	3mil / 3mil	Fine-line capability for high-density routing, ensuring signal integrity at high frequencies.

4. Product Classification and Structural Features

Scientific Classification

According to IPC-2223 standards, this product is classified as a dynamic flex rigid-flex PCB.

• By Structure: Asymmetric rigid-flex (6-layer rigid + 2-layer flex).
• By Application: High-speed, high-frequency module PCB.

Structural Features

1. Integrated Interconnection: Eliminates connectors, reducing insertion loss and signal reflection. Signal integrity improves by approximately 30% compared to traditional rigid board plus connector solutions.
2. High Flex Durability: The 2-layer flex section uses rolled annealed (RA) copper, which offers better bending life than electrodeposited (ED) copper, withstanding tens of thousands of dynamic bends.
3. Thin and Light: With an overall thickness of 1.0 mm, it saves up to 60% of Z-axis space when folded.

5. Manufacturing Process and Quality Control

UGPCB operates a fully integrated production line to ensure every high-speed rigid-flex PCB meets strict quality standards. The core process includes:

1. Flex Layer Preparation: PI substrate is processed using inner-layer dry film and etching to form fine circuits (3mil trace width) in the flexible area.
2. Coverlay Lamination: A coverlay is applied over the flex circuits to protect them and define the bending area.
3. Rigid Layer Stacking: FR4 prepreg is precisely aligned with the processed flex layer. This is a critical step to ensure resin fills the rigid-flex interface without voids.
4. Lamination: The rigid and flex layers are fused under high temperature and pressure.
5. Drilling and Plating: 0.2 mm mechanical drilling is performed, followed by electroless copper plating to establish interlayer connections.
6. Surface Finish: Immersion gold is applied with a controlled thickness of 2µ” to ensure solderability and oxidation resistance.
7. Routing and Electrical Testing: Laser cutting or die punching shapes the board, followed by 100% flying probe or fixture testing to guarantee no shorts or opens.

6. Application Scenarios

This 8-layer high-speed rigid-flex PCB is designed for high-density, high-reliability applications, including:

• Smartphones and Wearables: Used in foldable phone mainboard connections and camera module (CCM) assemblies, leveraging bending capabilities for hinge integration.
• Medical Devices: Such as ultrasound endoscopes and hearing aids. The compact size and reliability of rigid-flex PCBs ensure stable signal transmission in critical environments.
• Automotive Electronics: In-vehicle camera modules and LiDAR systems. Meets automotive-grade requirements for vibration resistance and temperature cycling (-40°C to 125°C).
• Aerospace and Defense: Satellite communication modules and missile guidance systems. Reduces weight while maintaining high reliability.
• Industrial Control: Robot joints and servo motor drives. The flex section absorbs mechanical stress from motion.

7. Why Choose UGPCB?

Manufacturing rigid-flex PCBs presents technical challenges, particularly in void-free lamination at the rigid-flex interface and controlling material shrinkage of PI. UGPCB addresses these with proven expertise:

• Precise Shrinkage Compensation: With extensive data on the different expansion rates of PI and FR4, we maintain layer-to-layer registration within ±2 mil.
• High-Speed Signal Assurance: For high-speed PCB applications, we strictly control dielectric constant (Dk) and dissipation factor (Df), and provide impedance test reports.
• Customization Support: From prototypes to mass production, we support tailored module PCB solutions with reliable lead times.

8. Get a Quote Today

Is your next-generation product still limited by connector size and signal loss? It’s time to upgrade to the 8-Layer High Speed Rigid-Flex PCB.

[Contact UGPCB Engineers] for:

Competitive Volume Pricing.

Free DFM Analysis Report (within 24 hours).

Impedance Optimization Recommendations.
