eMMC PCB Package Substrate Product Overview
In today’s data-centric world, the performance and reliability of embedded storage are critical. eMMC (embedded MultiMediaCard) serves as the core storage unit in smartphones, أقراص, IoT devices, and other consumer electronics. UGPCB, leveraging deep expertise in ربط عالية الكثافة (مؤشر التنمية البشرية) تصنيع ثنائي الفينيل متعدد الكلور, offers specialized eMMC Package Substrate PCBs. Designed with HL832NS material in a 4-layer, ultra-thin configuration, this substrate is the essential platform for high-speed, stable electrical interconnection between the memory controller, NAND flash dies, واللوحة الرئيسية. It is the optimal solution for developing next-generation compact, high-capacity storage modules.
What is an eMMC Package Substrate PCB?

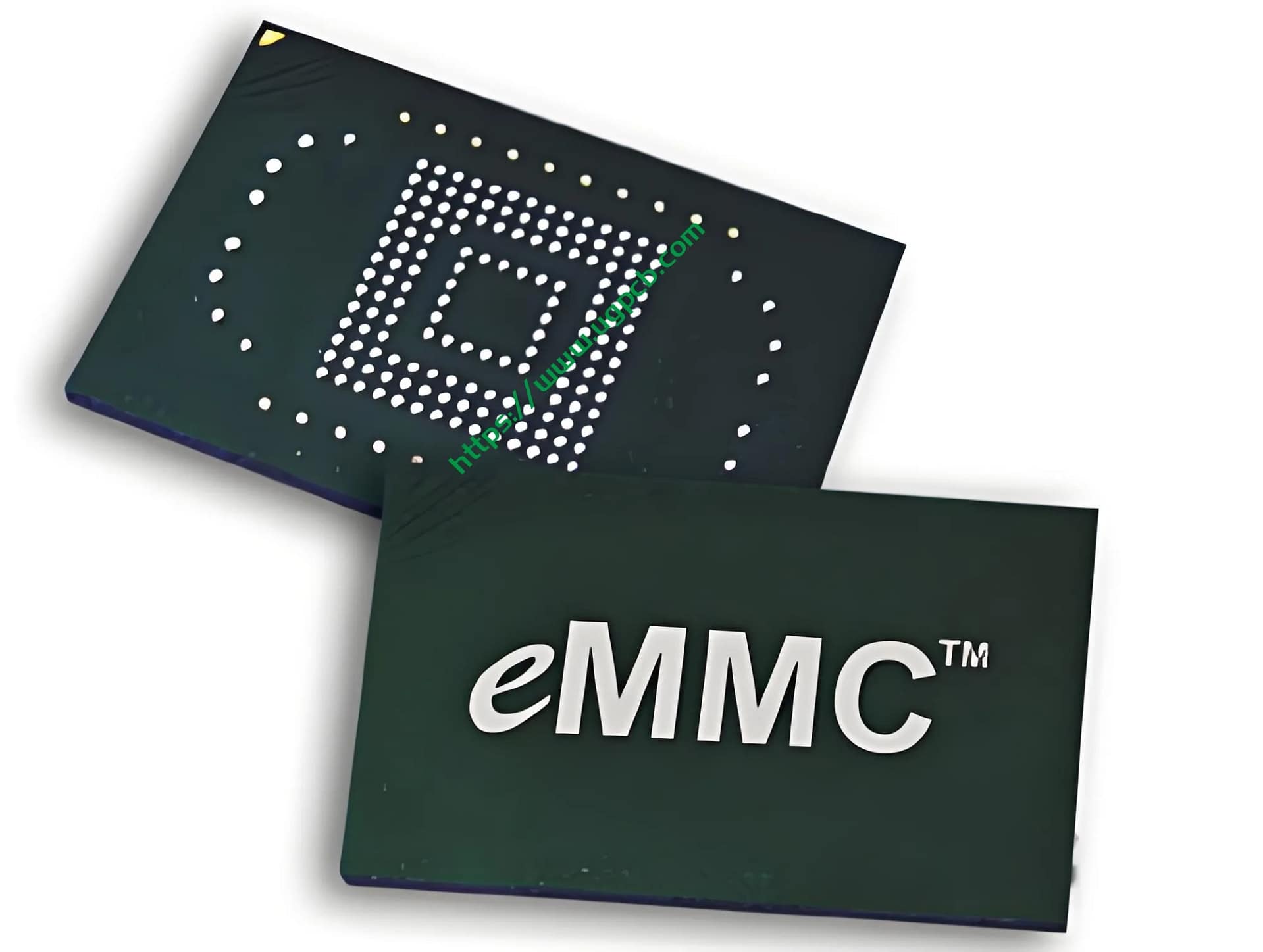

ان eMMC Package Substrate PCB هو متخصص, مصغرة لوحة الدوائر المطبوعة used internally within an eMMC chip package. It serves as the core interposer, providing the electrical connections and physical support between the storage controller silicon die, the NAND flash memory dies, and the external Ball Grid Array (بغا) واجهة. Its design and manufacturing quality directly determine the signal integrity, الأداء الحراري, and overall reliability of the final eMMC module.
أبرز التصميم & المواصفات الفنية الرئيسية
To meet the stringent demands of eMMC chips for high bandwidth and miniaturization, UGPCB’s eMMC substrate focuses on these critical design parameters:
-
High-Density Routing: Supports ultra-fine circuitry with minimum line width/space of 20µm.
-
Micro-Via Capability: سمات minimum via diameter of 0.1mm for high-density I/O fanout.
-
التصفيح مستقرة: 4-بناء الطبقة with a controlled total thickness of 0.21mm, balancing electrical performance and mechanical strength.
-
High-Reliability Surface Finish: الذهب الناعم (يوافق) plating provides an oxidation-resistant, low-resistance surface for reliable wire bonding or flip-chip attachment.
-
Precise Solder Mask: PSR-4000 AUS308 solder mask offers excellent insulation and chemical resistance.
كيف يعمل & الميزات الهيكلية
كيف يعمل: The substrate acts as the internal “الجهاز العصبي” و “power grid” of the eMMC module. Its conductive traces and micro-vias route command signals from the controller to the NAND flash dies and return data. Dedicated power and ground planes ensure stable, low-noise power delivery.
الميزات الهيكلية:
-
Ultra-Thin & مدمج: 0.21mm final thickness و 11.5mm x 13mm unit size minimize space consumption.
-
Advanced Core Material: بنيت على HL832NS, a high-performance laminate known for excellent thermal stability and low signal loss (انخفاض Dk/Df), crucial for heat dissipation.
-
Multi-Layer Architecture: ال 4-تكديس الطبقة (typically signal, قوة, أرضي) optimizes signal paths, reduces crosstalk, and controls impedance.
-
BGA Pad Array: The bottom side features a precise BGA pad layout for reliable surface-mount technology (سمت) assembly of the entire module onto the host motherboard.
التطبيق الأساسي & حالات الاستخدام
التطبيق الأساسي: Core interconnection platform within eMMC 5.1 وما فوق حزم الرقائق.
التطبيقات النموذجية (حالات الاستخدام):
-
الهواتف الذكية & أقراص: Primary internal storage.
-
Smart TVs & Set-Top Boxes: System storage and caching.
-
أجهزة إنترنت الأشياء: الساعات الذكية, smart home hubs requiring compact embedded storage.
-
أنظمة التحكم الصناعية: Embedded devices demanding high data reliability.
-
معلومات وترفيه السيارات: Storage modules meeting automotive-grade stability requirements.
تصنيف & تكوين المواد
-
تصنيف: Can be categorized by application grade: مستهلك, صناعي, and Automotive (this model is tailored for consumer & high-end industrial applications).
-
Material Stack-Up:
-
Core Laminate: HL832NS عالية تيراغرام, Low-Loss material.
-
الطبقات الموصلة: High-purity electrolytic copper foil.
-
قناع اللحام: PSR-4000 AUS308 (أخضر, matte/gloss optional).
-
الانتهاء من السطح: الذهب الغمر بالنيكل غير الكهربائي (يوافق – الذهب الناعم).
-
مزايا الأداء & الميزات الرئيسية
-
سلامة إشارة متفوقة: Controlled impedance and low-loss HL832NS material ensure stable high-speed data transfer.
-
موثوقية عالية: Stringent process controls and material selection guarantee long-term durability.
-
الإدارة الحرارية الفعالة: The laminate’s good thermal conductivity aids in heat dissipation from the active dies.
-
Tight Manufacturing Tolerances: 20µm line/space and 0.1mm micro-vias demonstrate متقدم اتش دي اي ثنائي الفينيل متعدد الكلور تصنيع خبرة.
-
End-to-End Solution: UGPCB provides collaborative support from substrate design review و تصنيع ثنائي الفينيل متعدد الكلور ل النماذج الأولية السريعة لـ PCBA.
نظرة عامة على عملية الإنتاج
Our eMMC Package Substrate manufacturing follows a stringent HDI PCB process flow:
Material Prep → Inner Layer Imaging → Lamination → Laser Drilling (0.1mm vias) → Via Metallization → Outer Layer Imaging (20خطوط ميكرون) → تطبيق قناع اللحام (بي اس ار-4000) → Surface Finishing (الذهب الناعم) → Electrical Testing → Routing/Scoring → Final Inspection & التعبئة والتغليف.
Why Choose UGPCB for Your eMMC Package Substrate?
Choosing UGPCB means partnering with an expert in memory chip substrate manufacturing. We understand the technical evolution of storage interfaces and offer full-chain support to ensure your product excels in performance, يكلف, والموثوقية.
Contact us today to discuss your eMMC Package Substrate requirements and request a quotation. Let UGPCB’s precision engineering be the reliable foundation for your next-generation storage solutions.
