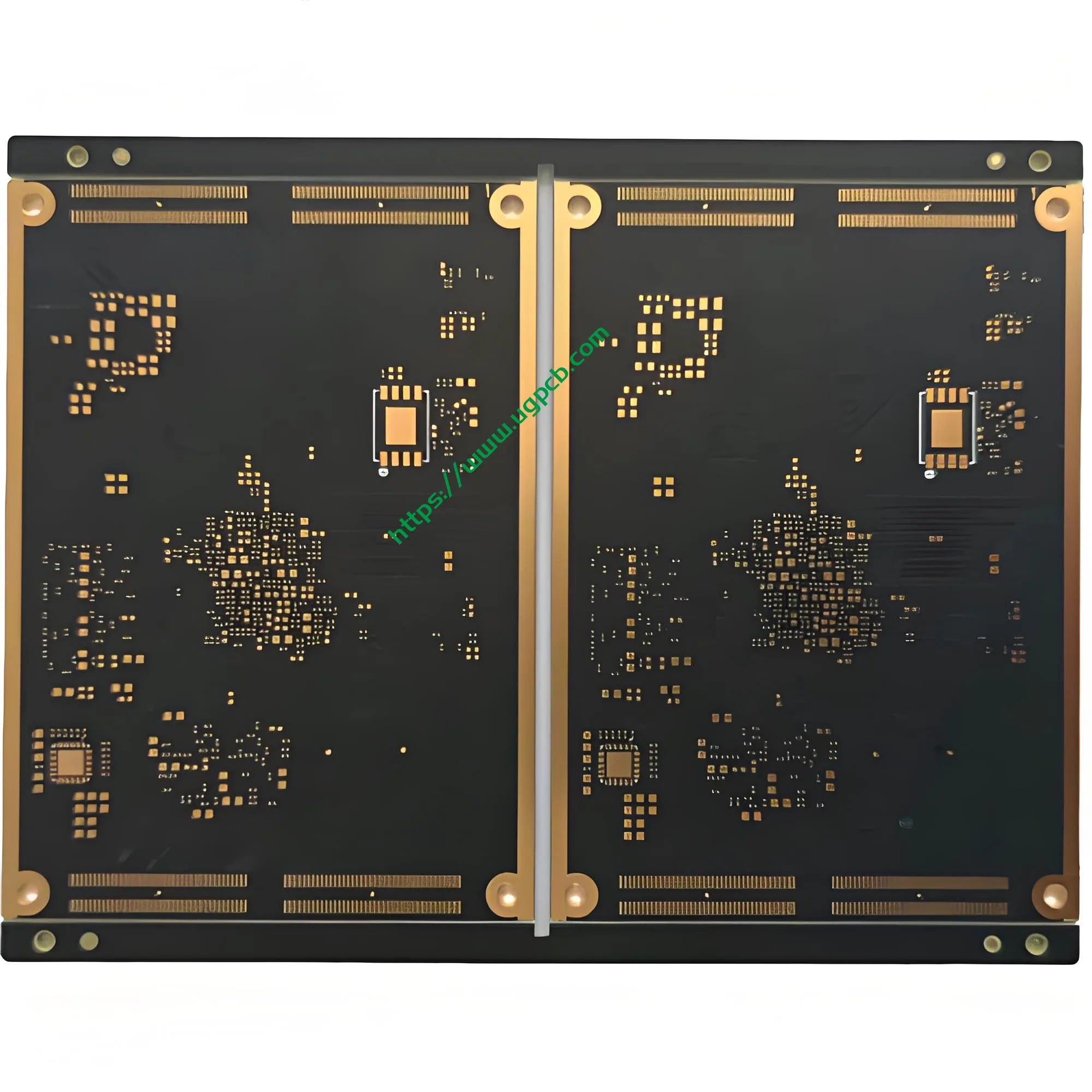

1. Product Overview: What Is a 10-Layer 1-Level HDI PCB?
A 10-layer 1-level HDI PCB is a high-density interconnect printed circuit board. It uses a 1+8+1 stackup. The board has an 8-layer core. Each side receives one build-up layer. Laser-drilled microvias connect the outer layers to the inner layers.
IPC-2226A places this design in Type I HDI. Type I HDI has one microvia layer on each side of the core. The standard defines a microvia as a blind via with a maximum aspect ratio of 1:1. Its total depth must not exceed 0.25 mm.
This 10-layer HDI PCB packs more routing density into less space. It suits smartphones, automotive electronics, medical devices, and AI servers. It also supports advanced PCBA designs that need fine-pitch components.
2. Core Parameters and Technical Specifications
UGPCB’s 10-layer 1-level HDI PCB offers the following key specifications:
| Parameter | Specification |
|---|---|
| Layers | 10 layers |
| HDI level | 1-level (1+8+1) |
| Laminate | FR4 Tg170 |
| Board thickness | 1.6 mm |
| Panel size | 121.6 × 95 mm (2-up) |
| Outer copper thickness | 1 oz (35 μm) |
| Inner copper thickness | 1 oz (35 μm) |
| Minimum through hole | 0.20 mm |
| Minimum blind hole | 0.10 mm (laser-drilled) |
| Minimum BGA pitch | 0.25 mm |
| Minimum line width/spacing | 3/2.7 mil (0.076/0.069 mm) |
Laminate selection basis: FR4 Tg170 is a high-Tg epoxy glass laminate. It meets IPC-4101C requirements. Its glass transition temperature (Tg) is at least 170°C. Its decomposition temperature (Td) is about 350°C. Its Z-axis CTE ranges from 45 to 55 ppm/°C. IPC-4101C sets the upper CTE limit at 60 ppm/°C.
This high-Tg material improves thermal stability during lead-free soldering. Lead-free reflow peaks usually reach 245–260°C. IPC-4101 groups high-Tg FR-4 from 170–180°C for automotive and high-temperature applications.
Precision design basis: The 0.10 mm laser blind via meets the IPC-2226A microvia definition. That definition covers vias with a diameter of 0.15 mm or less. The 0.25 mm BGA pitch supports high pin-count packages. The 3/2.7 mil line width/spacing enables dense signal routing.
3. Design Points and Working Principle
3.1 How HDI Microvia Technology Works
Microvia technology forms the core of HDI PCB design. A laser drills a small blind via into each build-up layer. That microvia connects only the target layers. It does not pass through the whole board. Laser depth control stops the via at the target copper layer.
IPC-2226A limits microvia aspect ratio to 1:1. A 0.10 mm via can therefore be no deeper than 0.10 mm. This limit keeps laser drilling and via filling within a reliable process window.
3.2 Stackup Design and Signal Integrity
The 1+8+1 stackup uses a symmetric design. Symmetry helps prevent bow and twist during lamination. It also balances thermal expansion across the board. UGPCB’s 10-layer 1-level HDI PCB combines this symmetric stackup with FR4 Tg170. The result is strong dimensional stability during reflow and long-term use.
3.3 Blind Via Filling and Reliability
Stacked microvia designs require fully filled blind vias. IPC-6012 Class 3 limits void area in filled blind vias to less than 25%. It also limits surface dimple to no more than 15 μm. These rules keep the via surface flat for the next microvia landing.
Two main filling methods exist: copper electroplating and resin plugging. Copper filling creates a void-free fill. It supports reliable stacking and soldering. Resin plugging plates the via wall first and then fills the via with epoxy. It leaves a smooth surface and does not affect soldering.
4. Manufacturing Process
UGPCB combines standard multilayer PCB processes with HDI build-up processes. The main steps are:
Stage 1: Inner-layer core fabrication
Cutting → inner-layer imaging → inner-layer etching → inner-layer AOI → brown oxide
Stage 2: Lamination and build-up
Lamination → brown oxide → laser drilling for 0.10 mm microvias
Stage 3: Hole metallization and via filling
Deburring → copper deposition → panel plating and via filling → cross-section analysis
Stage 4: Outer-layer imaging and finishing
Outer-layer imaging → outer-layer etching → AOI → solder mask → surface finish → profiling → electrical test → final inspection
For non-stacked microvias, the process is simpler. Inner blind vias only need enough copper for conductivity. For stacked microvias, the blind via must be fully filled. This step ensures a flat surface for the next build-up layer. UGPCB adjusts filling parameters and process flow to match each customer’s design.
5. Applications
The 10-layer 1-level HDI PCB serves many high-density electronic products.
Smartphones and consumer electronics: Premium smartphones use HDI PCBs. They must fit 5G modules, multi-camera systems, and AI chips into small spaces. The 1-level HDI PCB is a mature and mainstream choice. Global Growth Insights reports that HDI PCBs with 1+N+1 structures held 52% of the HDI market in 2025. That share equals about US$5.58 billion.
Automotive electronics: HDI PCBs tolerate vibration, temperature cycling, and harsh conditions. They support ADAS, infotainment, and vehicle control systems.
Medical devices: Wearable medical devices and portable diagnostic tools need thin, light, and highly integrated boards. HDI PCBs meet those needs.
Communications and networking: 5G base stations, optical modules, and high-speed switches rely on HDI PCBs. Their dense interconnects support reliable high-speed signal transmission.
PCBA and turnkey assembly: UGPCB also offers PCBA services. We can supply bare HDI PCBs or turnkey PCBA builds for your project.
6. Market Outlook
Prismark reports that the global HDI PCB market grew 26.0% year over year in 2025. AI servers, high-speed networking, satellite communications, and smartphones drove that growth. Over 2025–2030, HDI boards are expected to grow at a 9.2% compound annual rate. That rate exceeds the overall PCB industry average.
AI servers create especially strong HDI demand. TrendForce predicts that global AI server shipments will grow more than 20% year over year in 2026. AI servers will then reach 17% of total server shipments. This trend will continue to pull demand for high-end HDI PCBs.
7. Why Choose UGPCB?
UGPCB focuses on high-precision HDI PCB manufacturing. Our 10-layer 1-level HDI PCB offers these advantages:
- Precision: Supports 0.10 mm laser blind vias and 0.25 mm BGA pitch.
- Material compliance: Uses FR4 Tg170 laminate that meets IPC-4101C.
- Standard compliance: Builds to IPC-6012 Class 3 requirements. Filled blind vias keep voids below 25% and dimple at or below 15 μm.
- Process control: Applies AOI and cross-section analysis at key steps.
- Flexibility: Offers 1–3 level HDI customization and stackup optimization.
- PCBA support: Provides turnkey PCBA services for customers who need assembly.
UL recognition depends on the chosen laminate and final product. Please ask UGPCB for the required UL file number for your project.
8. Request a Quote
Do you need a 10-layer 1-level HDI PCB for prototyping or volume production? UGPCB can help. Our engineering team responds within 24 hours. We provide design review, stackup advice, and one-stop HDI PCB manufacturing.
Send your Gerber files and stackup requirements today.
Visit UGPCB.com or contact our sales team for a fast quote.
Data Source Statement
This statement forms part of the product body.
- IPC-2226A, Sectional Design Standard for High Density Interconnect (HDI) Printed Boards. It defines HDI Type I and microvia limits: maximum aspect ratio 1:1 and total depth ≤ 0.25 mm.
- IPC-6012, Qualification and Performance Specification for Rigid Printed Boards. It sets Class 3 filled blind via limits: void area < 25% and surface dimple ≤ 15 μm.
- IPC-4101C, Specification for Base Materials for Rigid and Multilayer Printed Boards. It specifies FR4 Tg170 with Tg ≥ 170°C and Z-axis CTE ≤ 60 ppm/°C.
- Prismark, 2025 report. Global HDI PCB market output value grew 26.0% year over year in 2025.
- Global Growth Insights, 2025. HDI PCBs with 1+N+1 structures held 52% of the HDI market, about US$5.58 billion.
- TrendForce, 2026 forecast. Global AI server shipments will grow more than 20% year over year and reach 17% of total server shipments.
