1. Introduction: The “Copper Antenna” You Cannot See
In high-speed PCB design, the most frustrating problem is often not the trace routing, but a copper column you simply cannot see — the via stub.
When signal rates exceed 10 Gbps, the unused plated portion of a traditional through-hole via behaves like a suspended antenna, constantly reflecting, resonating, and eroding signal energy. Backdrilling (controlled depth drilling) is the most economical and effective method for dealing with this “copper antenna” problem.

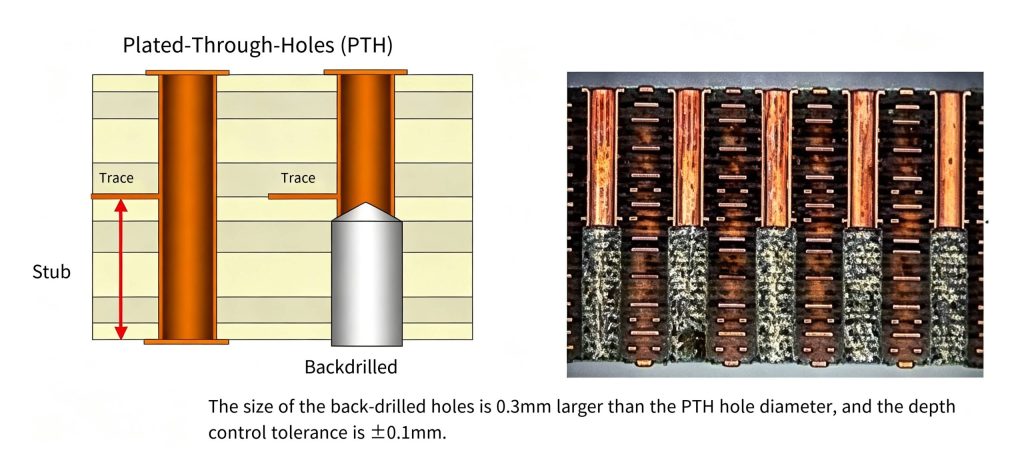

The principle of backdrilling is straightforward: after through-hole plating is completed, a larger-diameter drill bit re-enters the via from the opposite side of the PCB to remove the non-functional copper stub, leaving only the effective conductive section. However, “straightforward” does not mean “imprecise.” The success or failure of backdrilling design often depends on the precise control of three critical parameters.
2. Three Numbers That Determine Backdrilling Success
2.1 Number One: Backdrill Depth — A 0.1 mm Difference Changes Everything
Backdrill depth is the primary parameter in backdrilling design. Drill too deep, and you cut through the signal layer — scrapping the entire board. Drill too shallow, and the stub remains — rendering the backdrilling effort useless.
Calculation Formula:
Backdrill Depth = Total Board Thickness − (Distance from Target Signal Layer to the Backdrill Entry Surface) + Process Compensation Value
The process compensation value typically ranges from 0.05 mm to 0.15 mm. This compensation is a necessary safety margin — too little compensation may leave residual stubs due to drill bit wear or board thickness variations; too much compensation may damage the inner-layer signal traces.
For depth control tolerances, standard PCB manufacturers can achieve ±0.1 mm, while premium board shops can compress this to ±0.05 mm. This ±0.05 mm capability is essentially the entry threshold for 112G/224G ultra-high-speed boards. Some high-frequency board specifications even require depth deviation control within ±0.025 mm.
2.2 Number Two: Backdrill Diameter — Oversize by 0.2 mm, Just Right
The backdrill bit must be larger than the original through-hole. Why? Because backdrilling must not only “drill out” the copper stub but also ensure complete removal of copper debris.
Standard Oversize: 0.2 mm to 0.3 mm (8 to 12 mil) larger than the original through-hole diameter.
Some sources recommend oversizing by 6 to 10 mil (0.15 to 0.25 mm), while others suggest 4 to 8 mil. Synthesizing industry consensus, 0.2 mm to 0.3 mm represents the mainstream standard. Too little oversize leaves copper debris; too much oversize consumes valuable routing space.
Clearance Requirements:
- Backdrill hole to outer-layer traces/pads: ≥ 0.3 mm (12 mil)
- Backdrill hole to inner-layer copper features: ≥ 0.25 mm (10 mil)
- Backdrill hole to adjacent backdrill hole: ≥ 0.25 mm
2.3 Number Three: Stub Length — The “Life-and-Death Line” of Signal Integrity
The stub is the small copper column segment intentionally retained after backdrilling. Why not drill it all out? Because process limitations require a small safety margin to prevent the drill bit from penetrating the target signal layer.
General Standard: Conventional high-speed signal stub length ≤ 0.2 mm (8 mil).
Ultra-High-Speed Requirement: 112G/224G high-frequency signal stub length must be strictly controlled to ≤ 0.1 mm.
Stub length requirements by data rate tier:
| Signal Data Rate | Stub Control Target | Notes |
|---|---|---|
| Below 10 Gbps | ≤ 0.76 mm | Low-speed scenarios, backdrilling often unnecessary |
| 25 Gbps | ≤ 0.20 mm (design target 0.1 mm + tolerance 0.1 mm) | Mainstream high-speed standard |
| 56 Gbps and above | ≤ 0.13 mm (5 mil) | PAM4 signaling stringent control |
| 112G/224G | ≤ 0.10 mm (4 mil) | Ultra-high-speed mandatory requirement |
| Extreme high-frequency | ≤ 0.05 mm | Differentiator for premium manufacturing capability |
Stub Length vs. Signal Loss Relationship:

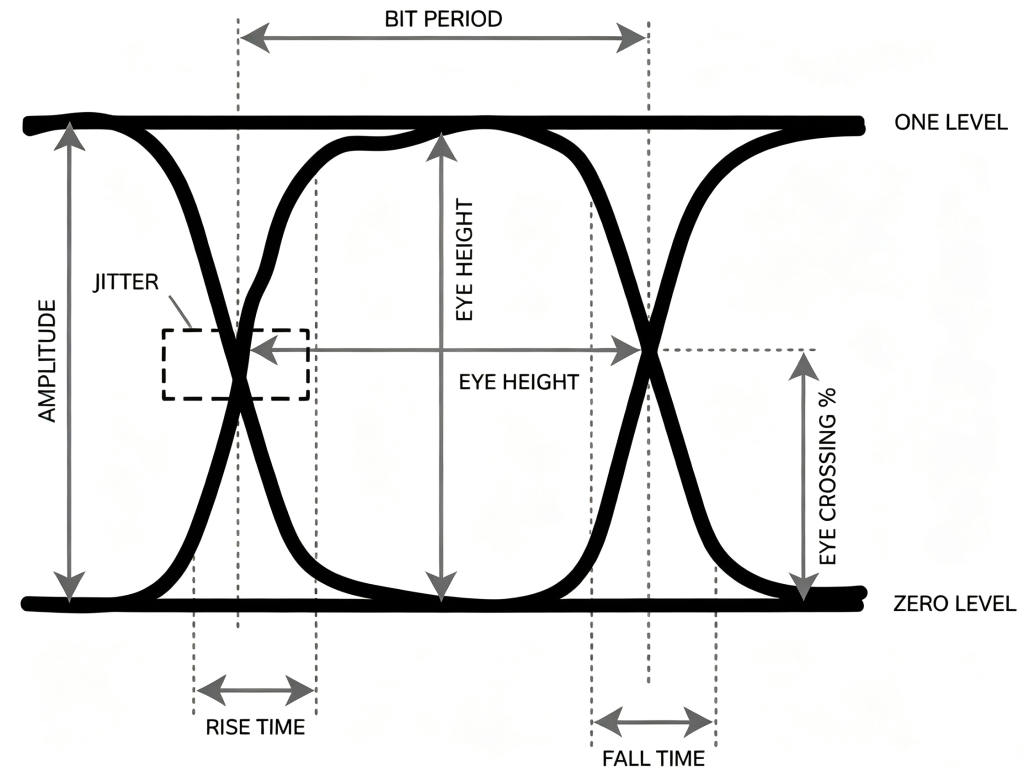

Experimental data shows that in a 10 Gbps, 100Ω differential pair scenario, a 0.2 mm stub produces an S11 reflection coefficient of approximately −6 dB — meaning nearly one-third of the signal energy is reflected back, with the eye diagram approaching closure.
3. A Case Study: The Real Value of Backdrilling
AtlasPCB applied backdrilling to a 20-layer, 3.5 mm thick backplane project. The original through-hole stub length was a staggering 2.8 mm — in 10 Gbps+ scenarios, this was essentially a “signal black hole” inserted directly into the signal path.
By backdrilling the stub from 2.8 mm down to 0.2 mm, each via reduced insertion loss by approximately 4.4 dB. The backplane involved signal transitions through four vias, recovering a total of:
4.4 dB × 4 = 17.6 dB of loss budget
What does 17.6 dB mean? In high-speed link budgeting, this often determines whether the entire system passes signal integrity testing. Without backdrilling, the link may simply fail; with backdrilling, everything stays within budget.
4. Practical Rules: Don’t Treat Backdrilling as a “Universal Remedy”
Backdrilling is effective, but it should not be overused.
When to Specify Backdrilling:
- ✅ Signal rates ≥ 10 Gbps in high-speed networks
- ✅ Board thickness > 1.6 mm in thick boards
- ✅ High-speed SerDes channels (PCIe 5.0/6.0, 400G/800G Ethernet, etc.)
When to Skip Backdrilling:
- ❌ Signal rates < 5 Gbps for low-speed signals
- ❌ Conventional thin boards
- ❌ HDI blind/buried via structures (different process path)
Design Specification Checklist:
- Remove non-functional pads: Strip all non-functional pads on backdrill layers to reduce capacitive loading
- Separate backdrill layer in fabrication drawings: Create a dedicated Backdrill layer noting hole coordinates, target layers, and backdrill depths
- Enforce clearances strictly: ≥ 0.3 mm (outer layer) / ≥ 0.25 mm (inner layer)
Cost and Lead Time:
Backdrilling increases PCB fabrication cost by approximately 5% to 15% and extends production lead time by about one day. Compared to blind/buried via solutions, however, backdrilling remains the most cost-effective stub management approach for high-speed through-hole boards.
5. Conclusion: Backdrilling Is an Art of Precision
The essence of backdrilling design lies in finding the precise balance between “clean removal” and “no breakthrough.”
- Depth: Calculate accurately, allow sufficient compensation (0.05 to 0.15 mm)
- Diameter: Oversize sufficiently (0.2 to 0.3 mm), remove all copper debris
- Stub: Control the length (≤ 0.2 mm for general, ≤ 0.1 mm for ultra-high-speed)
These three numbers are interdependent. A deviation in any one — and signal integrity is lost.
