PCB EMC Design Golden Rules: The Synergistic Art of Shielding, Filtering, and Grounding – A Practical Guide

EMC (electromagnetic compatibility) design is to PCB engineers what battlefield tactics are to military commanders – a single misstep can cost the entire campaign. In today’s era of high-speed digital systems and mixed RF circuits, over 85% of radiated emission failures trace back to PCB-level deficiencies in filtering, discontinuous shielding structures, or incorrect grounding strategies. EMC problems are never isolated faults; they are systemic breakdowns.

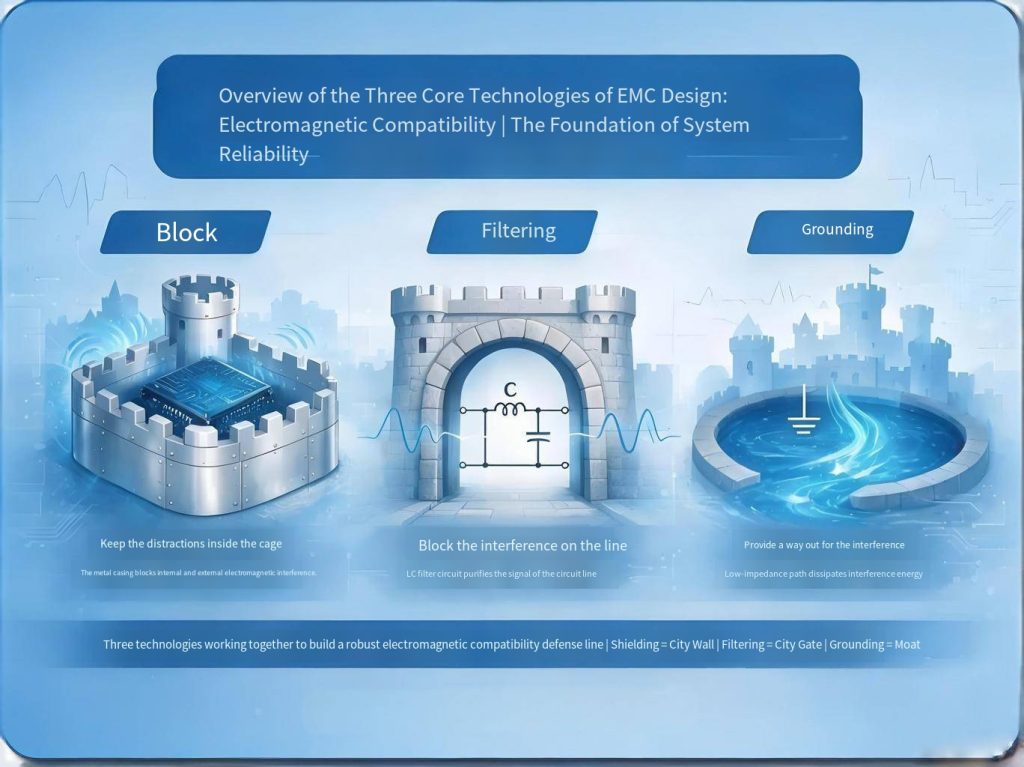

EMC design ultimately operates on three dimensions: shielding, filtering, and grounding – shielding traps interference inside a cage, filtering blocks interference on the lines, and grounding gives interference a path to escape. These three elements form a castle’s defense system: shielding is the wall, filtering is the gate, and grounding is the moat. A thick wall is useless if the gate stands open; a sturdy gate is worthless without a moat.

Chapter 1: Shielding – Trapping Interference in a Cage

1.1 The Essence of Shielding

Shielding uses conductive or magnetic materials to form an enclosed surface. This surface confines electromagnetic fields within a defined region or prevents external fields from entering. Shielding addresses spatial coupling – namely capacitive coupling, inductive coupling, and radiative coupling.

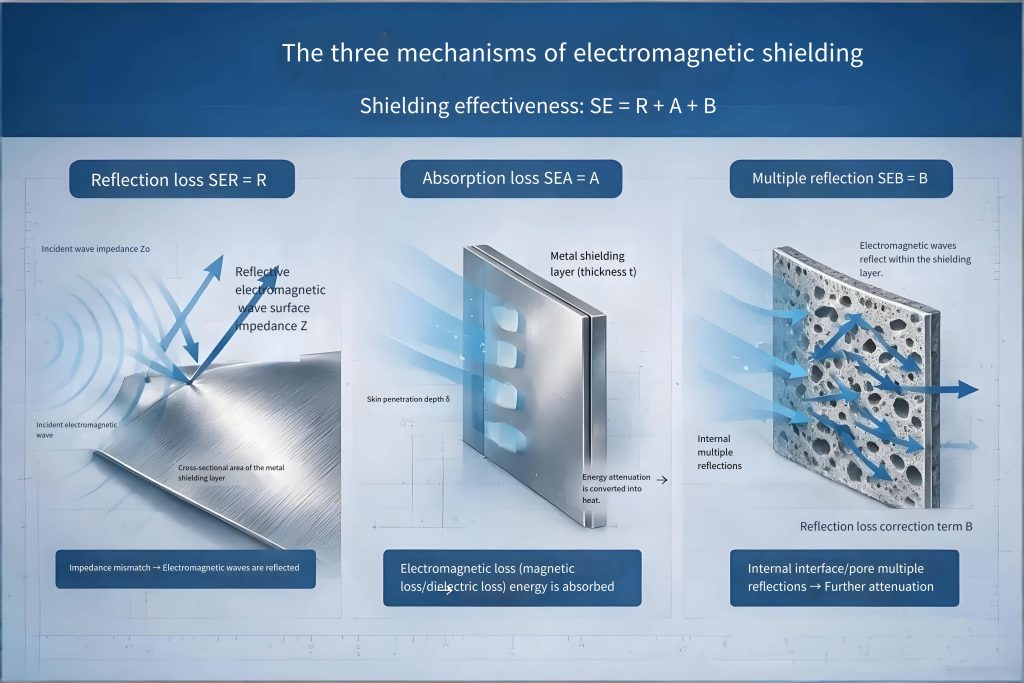

When an electromagnetic wave encounters a shield, three phenomena occur:

Mechanism	Principle	Key Influencing Factors
Reflection loss (R)	Wave reflection at the shield surface due to impedance mismatch	Material conductivity, wave impedance mismatch
Absorption loss (A)	Wave energy converted to heat during penetration	Material conductivity, permeability, thickness
Multiple reflections (B)	Repeated internal reflections within the shield	Shield thickness, internal structure

Total shielding effectiveness: SE = R + A + B (dB)

Absorption loss A can be calculated as A = 8.69 × (t/δ), where t is shield thickness and δ is skin depth. This means one skin depth of shielding material provides approximately 9 dB of absorption loss; doubling the thickness adds another 9 dB.

1.2 Electric Field Shielding vs. Magnetic Field Shielding

Comparison	Electric Field Shielding	Magnetic Field Shielding
Interference source	High voltage, low current	High current, low voltage
Material selection	High conductivity (copper, aluminum)	High permeability (iron, Mu-metal)
Principle	Reflects electric field, creates opposing field	Channels magnetic flux, concentrates it inside
Grounding requirement	Must be grounded	Not mandatory
Thickness requirement	Thin suffices (skin effect)	Requires sufficient thickness

1.3 Five Critical Shielding Design Rules

1. Material selection: Use copper or aluminum for electric fields and far-field; use ferromagnetic materials for low-frequency magnetic fields.
2. Seam control: Keep seam lengths below λ/20; use conductive gaskets.
3. Aperture control: Keep hole dimensions below λ/20; minimize the number of openings.
4. Cable penetration: Use filtered connectors or shielded adapters at penetration points.
5. Grounding: The shield must be well grounded; otherwise, it becomes an antenna.

Shielding has limitations. Low-frequency magnetic fields are extremely difficult to shield (requiring thick ferromagnetic materials). Apertures and seams severely degrade performance. Shielding is expensive, heavy, and complex to manufacture. Shielding is the last line of defense – prioritize source control and filtering first.

Chapter 2: Filtering – Blocking Interference on the Lines

2.1 The Essence of Filtering

Filtering inserts a frequency-selective network into the signal path. This network passes desired signals while blocking interference. Filtering addresses conducted coupling – interference that propagates through cables.

Low-pass filters are the most common type in EMC applications because most interference is high-frequency while useful power and signals are low-frequency.

2.2 The Power EMI Filter – The Classic EMC Filter

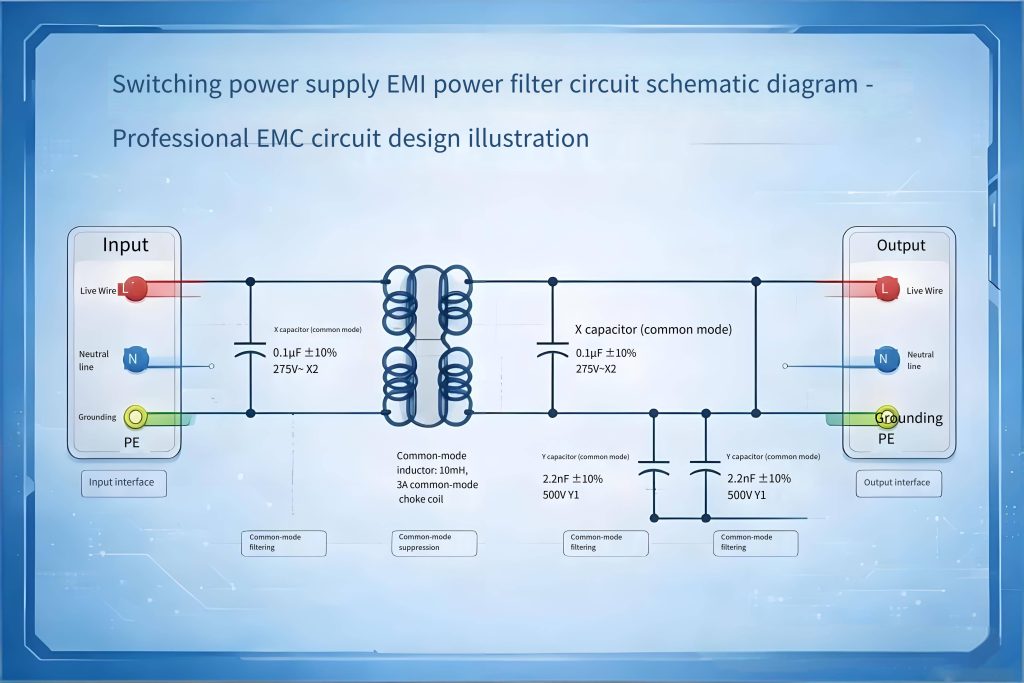

The power EMI filter is standard equipment for switch-mode power supplies. Its typical structure consists of X capacitors, Y capacitors, and common-mode chokes connected between the live, neutral, and ground lines.

Component	Suppression Mode	Typical Parameters
X capacitor	Differential-mode interference	0.1–2.2 μF
Y capacitor	Common-mode interference	1–4.7 nF
Common-mode choke	Common-mode interference	1–10 mH
Differential-mode inductor	Differential-mode interference	Tens to hundreds of μH

2.3 The Core Metric: Insertion Loss

Insertion loss (IL) is the key parameter for evaluating filter performance. It is defined as the ratio of load-side voltage before and after filter insertion:

IL = 20log₁₀(V₁/V₂) (dB)

Per CISPR 17:2011, which specifies methods to measure the radio interference suppression characteristics of passive EMC filtering devices, a quality DC power filter should achieve common-mode insertion loss ≥ 40 dB and differential-mode insertion loss ≥ 30 dB across the 150 kHz – 30 MHz conducted emission band. CISPR 17 defines test configurations including 50Ω/50Ω symmetrical (differential mode) and asymmetrical (common mode) measurements, as well as non-50Ω systems such as 0.1Ω/100Ω and 100Ω/0.1Ω topologies.

2.4 Four Filter Design Principles

1. Common mode first, then differential mode: Common-mode interference is typically harder to handle; prioritize common-mode filter design.
2. Place close to the source: Locate the filter as close as possible to the interference source or the sensitive port.
3. Mind impedance matching: The filter operates between source impedance and load impedance; impedance mismatch severely degrades performance. Per CISPR 17, asymmetric impedance testing (e.g., 0.1Ω/100Ω) should be used to verify filter performance under worst-case conditions.
4. Ground well: The common terminal of Y capacitors and the filter must connect to ground with low impedance.

Chapter 3: Grounding – Giving Interference a Path to Escape

3.1 The Essence of Grounding

Grounding serves two core purposes: safety grounding (protecting personnel by providing a fault current path) and signal grounding (providing a reference potential for circuits and a low-impedance return path for interference currents). EMC focuses primarily on signal grounding.

Grounding addresses the loop problem – interference currents need a low-impedance return path. Poor grounding forces interference currents through unintended paths, creating coupling.

3.2 Ground Impedance – Inductance Dominates at High Frequencies

The impedance of a PCB trace or wire includes resistance R and inductive reactance XL:

Z = R + jXL = R + j2πfL

Consider a PCB trace 10 cm long, 1.5 mm wide, and 50 μm thick:

• Resistance: R = ρL/s = 0.02 × 0.1 / (1.5 × 0.05) ≈ 0.026 Ω
• Inductance: approximately 0.08 μH (0.8 μH/m self-inductance)
• At 1 MHz, inductive reactance: XL = 2π × 1×10⁶ × 0.08×10⁻⁶ ≈ 0.5 Ω – 19 times the resistance!

Key conclusion: At high frequencies, inductance dominates impedance. Shortening the ground path is the most effective way to reduce impedance. A solid ground plane offers the lowest impedance. Flat conductors (copper foil) have lower high-frequency impedance than round conductors (wire).

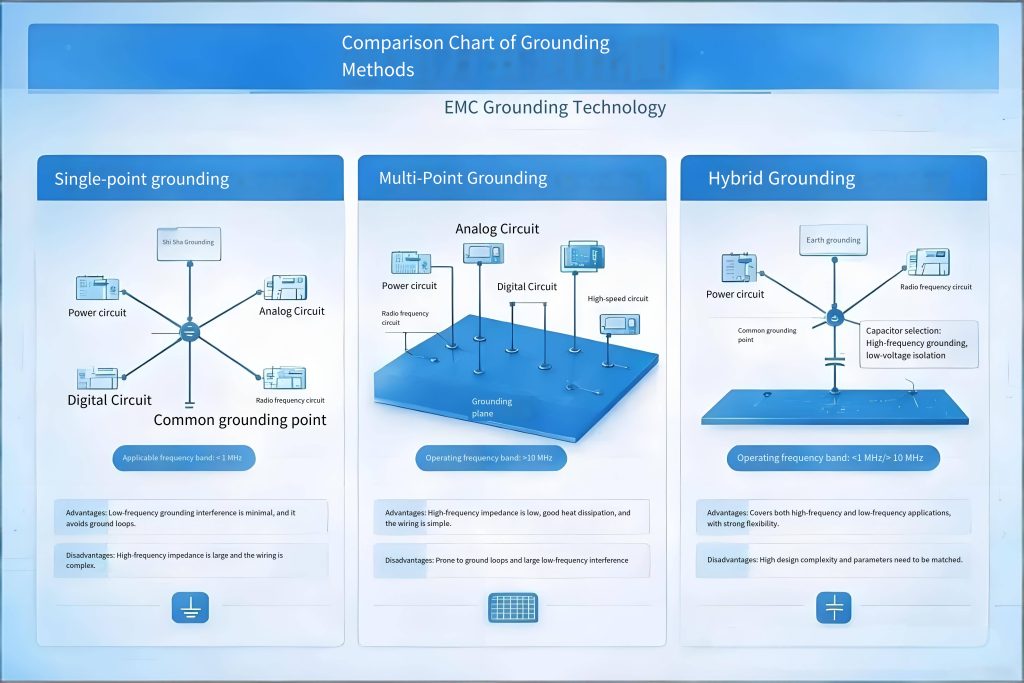

3.3 Three Grounding Methods

Grounding Method	Principle	Frequency Range	Advantage	Disadvantage
Single-point grounding	All ground points connect to one point	<1 MHz	No ground loops	High impedance at high frequencies
Multi-point grounding	Each ground point connects locally to ground plane	>10 MHz	Low high-frequency impedance	Ground loops possible
Hybrid grounding	Single-point at low frequencies, multi-point at high frequencies	Broadband	Balances low and high frequencies	Complex design

In practice, most products contain both low-frequency and high-frequency circuits. Hybrid grounding is the mainstream engineering approach – single-point grounding for low-frequency sections (avoiding ground loops) and multi-point grounding for high-frequency sections (reducing impedance). Capacitors and inductors enable “frequency-selective grounding.”

3.4 The Solid Ground Plane Advantage

A solid ground plane provides a low-impedance return path for current, reduces noise, and improves circuit reliability. On multilayer boards, dedicating large areas of the PCB to ground and connecting components along the shortest possible routes minimizes ground impedance. A continuous ground plane acts as a shield underneath high-speed or sensitive traces, absorbs stray electromagnetic fields, reduces crosstalk, and improves EMC performance.

Chapter 4: Three-Way Synergy – 1+1+1 > 3

4.1 Why Synergy Is Essential

Each technique – shielding, filtering, and grounding – has limitations when used alone. But when they work together, the effect multiplies:

Scenario	Outcome
Shield not grounded	Nearly useless; the shield becomes a secondary radiator
Filter not grounded	High-frequency filtering fails
Poor grounding system	Shield becomes antenna; filter becomes coupling path
All three working together	Maximum effectiveness

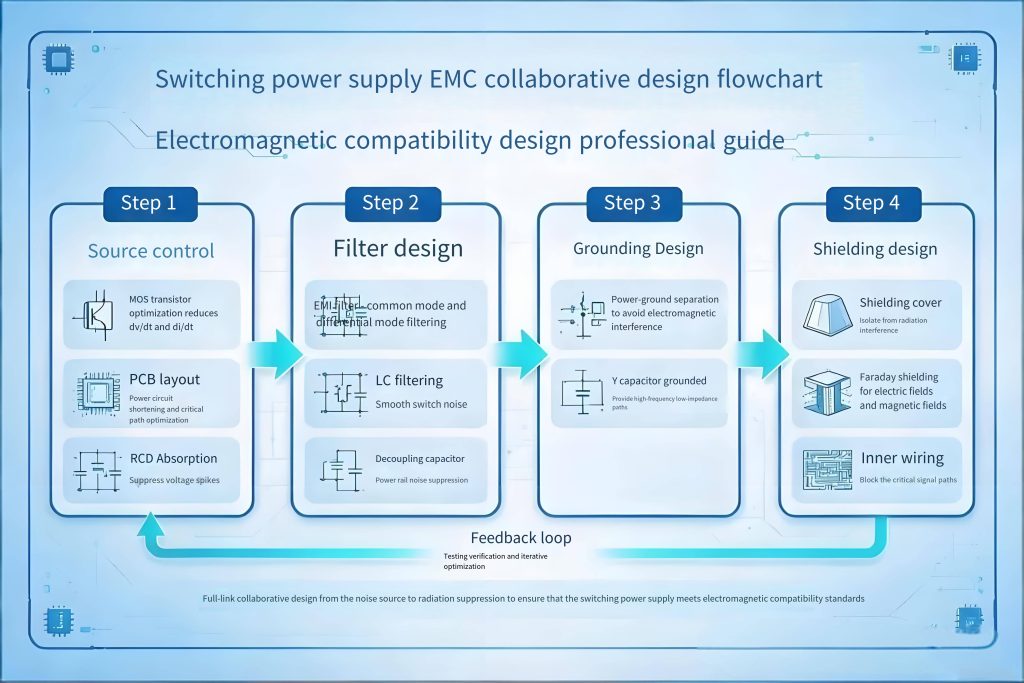

4.2 Case Study: Switch-Mode Power Supply EMC Design

Step 1 – Source control: Optimize MOSFET gate drive (reduce switching slew rate). Optimize PCB layout (minimize power loop area). Add RCD snubber circuits. Reducing the power loop area by 50% can lower radiated emissions by approximately 12 dB.

Step 2 – Filter design: Install X capacitors, common-mode chokes, and Y capacitors at the input (power EMI filter). Add an LC filter at the output. Place decoupling capacitors at the control IC power pins.

Step 3 – Grounding design: Separate power ground from signal ground; connect them at a single point. Ground Y capacitors locally to the chassis. Ground the heatsink.

Step 4 – Shielding design: Add shielding cans over MOSFETs and rectifiers. Add a Faraday shield layer to the transformer. Route critical signals on inner layers with ground planes on both sides.

4.3 Case Study: High-Speed Digital Board EMC Design

Step 1 – Source control: Control signal rise times (series termination resistors). Keep clock traces away from I/O connectors. Route differential pairs symmetrically.

Step 2 – Grounding design: Maintain a solid ground plane; avoid splits. Dedicate a separate ground plane section for the I/O area and connect it to the chassis.

Step 3 – Filter design: Add common-mode chokes on I/O lines. Use π-type filters at the power entry point. Place decoupling capacitors at every IC power pin. In a standard six-layer board stack-up, solid ground planes on layers 2 and 5 provide 15–25 dB of radiation suppression across the 30 MHz – 1 GHz band.

Step 4 – Shielding design: Use shielded I/O connectors. Apply conductive gaskets at chassis seams. Route critical signals on inner layers.

Chapter 5: Design Priority – Source Control Always Comes First

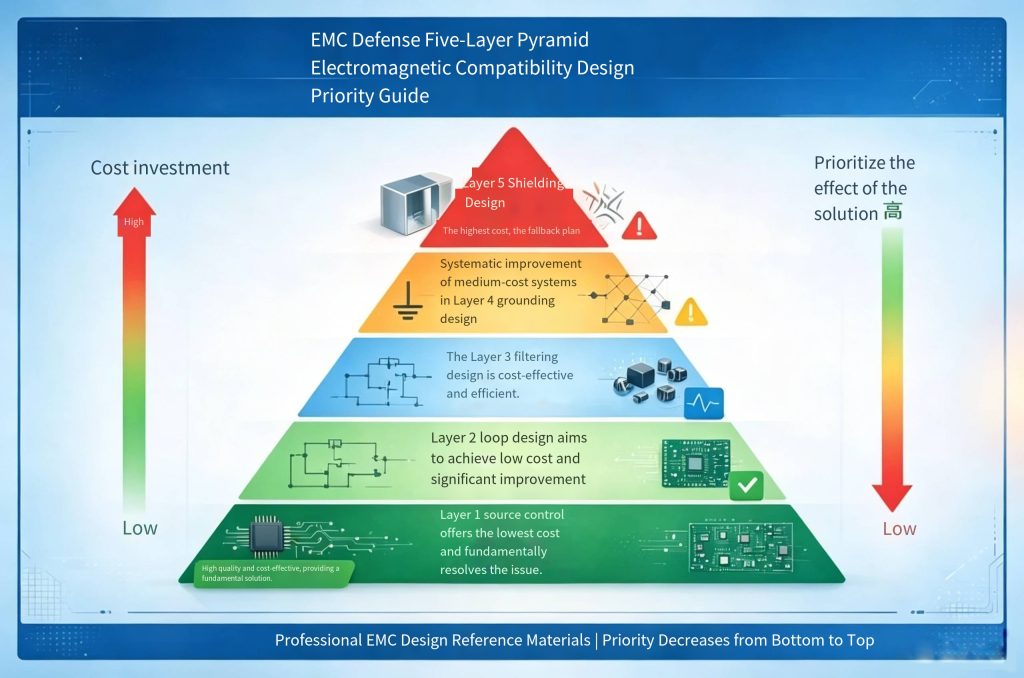

5.1 The Five-Layer Defense

Layer	Measure	Effect	Cost
Layer 1	Source control (component selection, layout optimization)	Fundamental solution	Lowest
Layer 2	Loop design (minimize loop area, impedance matching)	Significant improvement	Low
Layer 3	Filtering	Effective suppression	Medium
Layer 4	Grounding	Systematic improvement	Medium
Layer 5	Shielding	Last-resort solution	Highest

Core principle: Solve at the source whenever possible; filter only what you cannot eliminate at the source; shield only as a last resort.

5.2 Why Source Control Matters Most

Comparison	Source Control	Remedial Measures (Filtering/Shielding)
Effect	Fundamental	Symptom treatment
Cost	Nearly zero	Requires additional components/materials
Reliability	High	May degrade with temperature/aging
Design freedom	High	Constrained by space and cost
Production consistency	Good	Affected by component tolerances

Reducing MOSFET switching speed by 30% can lower high-frequency noise by 6–10 dB – more effective than any filter.

Chapter 6: EMC Design Checklist – Quick Reference

Schematic Stage

• □ Power input has an EMI filter; every IC power pin has a decoupling capacitor
• □ High-speed signals have termination resistors
• □ I/O lines have TVS/ESD protection
• □ Clocks have RC filtering or spread spectrum
• □ Isolation between high-voltage and low-voltage sections meets IPC-2221 requirements

PCB Layout Stage

• □ Power loop area minimized; power devices placed close together
• □ Analog/digital/power/RF sections partitioned
• □ I/O connectors grouped together and placed away from noise sources
• □ Clock traces kept away from I/O; routed on inner layers with ground planes on both sides
• □ Ground plane kept solid; avoid splits

Mechanical/Structural Stage

• □ Shielding cans added over critical noise sources; shield grounding resistance ≤ 0.1 Ω
• □ Seams treated with conductive gaskets; gap length < λ/20
• □ Shielded cables and connectors used
• □ Shield, PCB ground, and chassis ground connected with low impedance
• □ Ventilation holes kept below λ/20; use waveguide vents when necessary

Conclusion: EMC Design Is Systems Engineering

EMC design is not about point solutions – it is about systems engineering.

Shielding, filtering, and grounding form an inseparable trio.

But remember the core principle: source control comes first, filtering provides midfield support, shielding is the last line of defense, and grounding is the foundation that runs through everything.

When you face those dancing emission spikes on the spectrum analyzer in the EMC lab, trace them back to the decisions made on your PCB design drawings – every choice about placement, routing, decoupling, grounding, and shielding – those are the choices that truly determine success or failure.

EMC is not measured into a product; it is designed into it.

---
