1. Product Overview

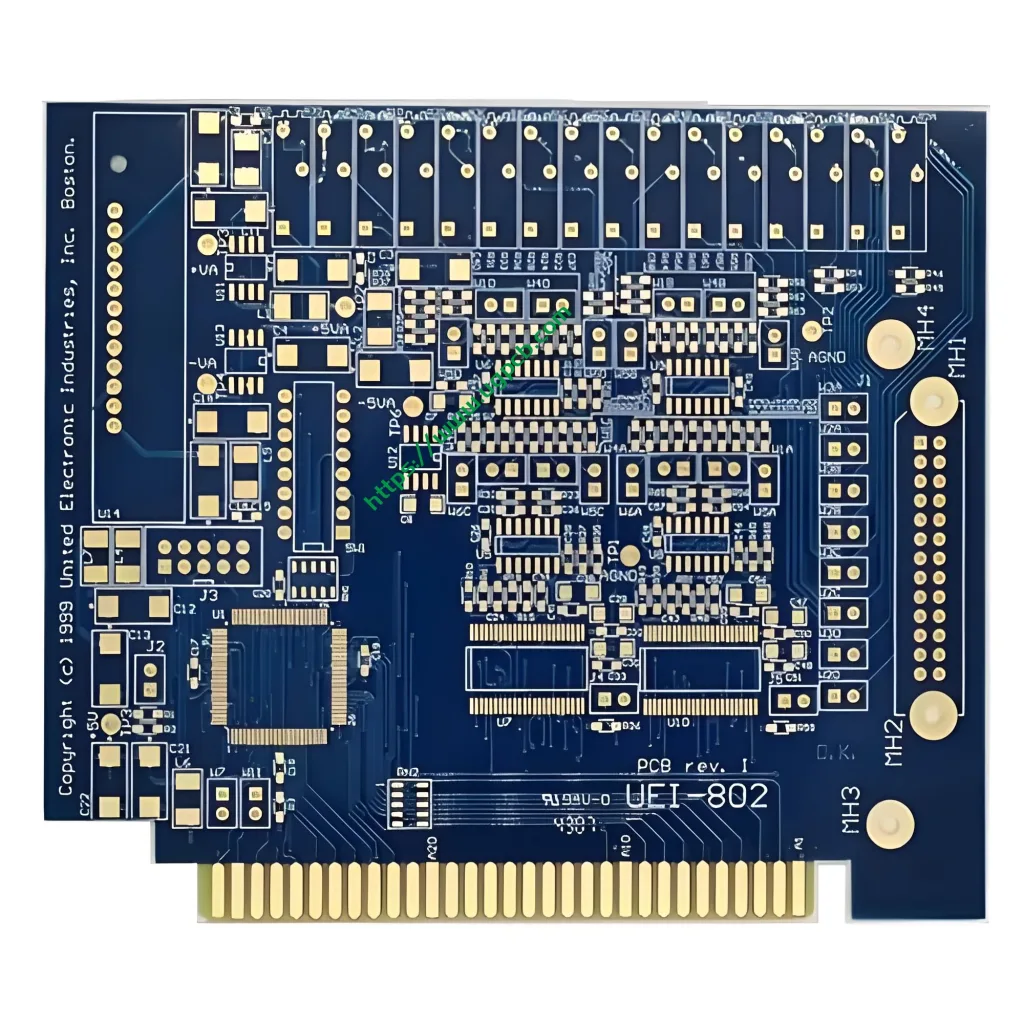

A double‑sided gold finger printed circuit board (PCB) features gold‑plated contacts – commonly called “gold fingers” – arranged along the board edge. These contacts create a pluggable electrical path when inserted into a mating connector, such as a card slot or socket. All signals and power flow through these finger‑shaped terminals.
UGPCB’s double‑sided gold finger PCB uses an FR4 substrate with a 2‑layer design. The board thickness is 1.6 mm, and both inner and outer layers have 1 oz copper. The minimum drilled via diameter is 0.3 mm, and the trace width and spacing are both 0.15 mm. The surface finish is immersion gold (ENIG) over the entire board, with additional electroplated hard gold selectively applied to the gold finger areas. This product offers the routing flexibility of a double‑sided board together with the proven reliability of gold finger connections. It serves a wide range of electronic systems that require board‑to‑board plug‑in interfaces.
2. Product Classification and Positioning
According to IPC‑6012 (the rigid printed board qualification and performance specification), this product falls into the following categories:
| Classification Dimension | Category |
|---|---|
| By Structure | Double‑sided PCB – conductive traces on both sides |
| By Interconnection Method | With plated‑through holes (PTH) |
| By IPC‑6012 Performance Class | Class 2 (dedicated service electronic products) – suitable for most gold finger applications |
| By Substrate Material | FR4 rigid laminate (S1141 grade) |
| By Surface Finish | ENIG (electroless nickel / immersion gold) + selective electroplated hard gold on gold fingers |
| By Function | Gold finger PCB / edge connector PCB |
This product is positioned as a medium‑to‑high‑reliability plug‑in connection solution. It combines the design freedom of double‑sided routing with the signal integrity of gold finger edge connectors.
3. Key Technical Parameters
3.1 Substrate: FR4 + S1141 Laminate
FR4 is the most common rigid substrate in the PCB industry. It consists of glass‑fiber‑reinforced epoxy resin, which provides excellent mechanical strength, electrical insulation, and thermal resistance. This product uses S1141 FR4 laminate from Shengyi Technology, which complies with IPC‑4101/21.
Key performance indicators for S1141 (tested on 1.6 mm specimens) are listed below.
| Parameter | Typical Value | Test Method |
|---|---|---|
| Glass Transition Temperature (Tg) | 140°C (DSC) | IPC‑TM‑650 2.4.25 |
| Thermal Decomposition Temperature (Td) | 310°C (5 % weight loss) | IPC‑TM‑650 2.4.24.6 |
| Z‑axis CTE (before Tg) | 65 ppm/°C | IPC‑TM‑650 2.4.24 |
| Z‑axis CTE (after Tg) | 300 ppm/°C | IPC‑TM‑650 2.4.24 |
| Dielectric Constant (Dk, 1 MHz) | 4.6 | IPC‑TM‑650 2.5.5.9 |
| Dissipation Factor (Df, 1 MHz) | 0.015 | IPC‑TM‑650 2.5.5.9 |
| Flammability Rating | UL 94 V‑0 | UL 94 |
| Water Absorption | 0.15 % | IPC‑TM‑650 2.6.2.1 |
Data Source: Shengyi S1141 Technical Data Sheet, compliant with IPC‑4101/21.
UL 94 V‑0 is the highest flame‑retardant rating in the UL 94 vertical burn test. It requires that after two 10‑second flame applications, the total flaming combustion time for each specimen does not exceed 10 seconds, and no flaming drips ignite the cotton indicator. This ensures the PCB remains safe under abnormal heating or short‑circuit conditions.
3.2 Board Thickness: 1.6 mm
The 1.6 mm thickness is the industry standard for rigid PCBs. It also serves as the baseline thickness for S1141 material property data. This thickness achieves an optimal balance between mechanical strength, insertion stability, and manufacturing cost. It is widely compatible with standard connector slots.
3.3 Copper Thickness: 1 oz (Approximately 35 μm)
Both inner and outer layer copper foils are 1 oz (ounce) , which is approximately 35 μm thick. According to IPC‑6012, the minimum finished copper thickness for Class 1 and Class 2 boards is 48 μm. Starting with 1 oz foil ensures that the final thickness after processing meets these requirements. This copper weight supports adequate current‑carrying capacity (approximately 4‑6 A, depending on trace width) while preserving fine‑line etching precision. The trace width and spacing of 0.15 mm (about 6 mil) are reliably producible with 1 oz copper.
3.4 Minimum Via Diameter: 0.3 mm
The minimum mechanical drilled hole diameter is 0.3 mm, which is well within standard through‑hole technology capability. This supports plated‑through‑hole (PTH) processing to ensure reliable electrical interconnection between layers. Per IPC‑6012, all PTHs must pass thermal stress testing (288 °C solder dip) to verify structural integrity.
3.5 Trace Width and Spacing: 0.15 mm / 0.15 mm
A trace width of 0.15 mm (approximately 6 mil) and a spacing of 0.15 mm represent a fine‑line capability within conventional PCB manufacturing. At 1 oz copper thickness, a 0.15 mm trace can carry approximately 0.5‑0.8 A of current based on IPC‑2221 calculations. This meets the needs of most signal transmission and low‑power supply applications. This combination of width and spacing ensures reliability while keeping manufacturing costs under control.
4. Surface Finish: Immersion Gold plus Electroplated Gold Fingers
This product uses a combined surface finish process: immersion gold (ENIG) across the entire board, with electroplated hard gold selectively applied to the gold finger areas. This is the standard and optimal process for gold finger PCBs.
4.1 Immersion Gold (ENIG) Process
Electroless Nickel / Immersion Gold (ENIG) is a finish where nickel is first chemically deposited onto the copper surface, followed by a thin gold layer deposited through a displacement reaction.
Per IPC‑4552 Revision A (issued 2017) :
- Nickel thickness: 3 μm to 6 μm (120 μin to 240 μin)
- Gold thickness: 0.04 μm to 0.10 μm (1.6 μin to 4.0 μin)
- Recommended gold thickness: 0.04 μm to 0.07 μm (1.6 μin to 2.8 μin)
Data Source: IPC‑4552 – Performance Specification for Electroless Nickel / Immersion Gold (ENIG) Plating for Printed Boards.
Advantages of ENIG:
- Flat surface suitable for fine‑pitch traces and BGA packages
- Excellent solderability supporting lead‑free soldering (e.g., SAC305)
- Strong oxidation resistance with long shelf life
- Thin gold layer keeps costs manageable
4.2 Electroplated Gold Fingers – The Key Feature
The gold finger areas receive additional electroplated hard gold. Unlike the soft gold used in ENIG, electroplated hard gold contains hardeners such as cobalt or nickel (gold‑cobalt or gold‑nickel alloy). Its hardness can exceed HV 200, providing far greater wear resistance than soft gold.
Why must gold fingers use electroplated hard gold?
ENIG gold is extremely thin (only 0.04‑0.10 μm) and soft (hardness below HV 90). It wears away after just 3‑5 insertion cycles. Electroplated hard gold, with a thickness typically above 0.76 μm, can withstand hundreds or even thousands of insertion cycles.
Per IPC‑4556 (Hard Gold Performance Specification) :
| Application Class | Minimum Gold Thickness | Typical Applications |
|---|---|---|
| Class 2 (Durable) | ≥ 0.76 μm (30 μin) | Most gold finger applications |
| Class 3 (High Reliability) | ≥ 1.27 μm (50 μin) | High‑cycle insertion, industrial / military |
| Nickel Underlayer | 3‑5 μm | Required for all hard gold deposits |
Data Source: IPC‑4556 – Performance Specification for Electroplated Hard Gold for Connectors and Gold Fingers.
The electroplated gold finger process used in this product complies with IPC‑4556 Class 2 through Class 3 standards, ensuring insertion life and contact reliability.
5. Design Considerations
5.1 Gold Finger Chamfering
The insertion end of the gold fingers must be chamfered to enable smooth entry into the connector slot.
- Chamfer angle: Typically 30° or 45°
- Chamfer depth: For 1.6 mm board thickness, the chamfer depth is typically 0.8‑1.0 mm, leaving a 0.6‑0.8 mm blunt edge at the tip
- Remaining tip thickness: Approximately one‑third to one‑half of the original board thickness
- Critical requirement: No solder mask may cover the chamfered area, and the gold layer must fully cover the chamfered bevel
5.2 Gold Finger Area Design Rules
- Gold fingers should be placed at the board edge in an orderly array
- Minimum spacing between adjacent gold fingers should be ≥ 7 mil (approximately 0.178 mm)
- The gold finger area must be clearly marked in the Gerber files with explicit plating instructions
5.3 Impedance Control Considerations
FR4 material has a dielectric constant Dk = 4.6 at 1 MHz. For 50 Ω single‑ended or 100 Ω differential impedance control, designers can adjust trace width and dielectric thickness. The 0.15 mm trace width and spacing in this product meet most signal integrity requirements for standard designs.
6. Working Principle
A double‑sided gold finger PCB operates through two core mechanisms: electrical contact and signal transmission.
- Electrical connection: The gold finger contacts at the board edge physically mate with the metal spring contacts inside the connector slot, establishing a low‑resistance electrical path.
- Signal transmission: The PCB traces route signals from various components (chips, resistors, capacitors, etc.) to the gold finger contacts, which then transmit through the connector to the motherboard or backplane. The double‑sided design allows routing on both the top and bottom layers, significantly increasing routing density and design flexibility.
- Pluggability: The electroplated hard gold layer on the gold fingers provides sufficient wear resistance to support multiple insertion cycles without degrading contact resistance or signal integrity.
7. Applications and Use Cases
Double‑sided gold finger PCBs are widely used in electronic devices that require pluggable connections. Common applications include:
| Application Area | Specific Products |
|---|---|
| Computing & Servers | Memory modules (DDR, DDR2, DDR3, DDR4, DDR5), graphics cards, network interface cards, expansion cards |
| Consumer Electronics | USB drives, memory cards, card readers, smartphones, smartwatches |
| Communications Equipment | Routers, switches, communication modules |
| Industrial Control | Industrial control boards, data acquisition cards, test fixtures |
| Automotive Electronics | In‑vehicle control units, infotainment systems |
| Medical Devices | Medical electronic modules (with IPC‑6012EM medical supplement) |
| Aerospace | Avionics modules (with IPC‑6012FS aerospace supplement) |
FR4 double‑sided gold finger PCBs are particularly suitable for medium‑complexity, cost‑sensitive applications that demand plug‑in connectivity.
8. Manufacturing Process Flow
UGPCB follows a standard production sequence for double‑sided gold finger PCBs:
- Cutting – Cut FR4 copper‑clad laminate to working panel dimensions.
- Drilling – Drill 0.3 mm through‑holes and mounting holes.
- PTH / Panel Plating – Apply electroless copper deposition in holes, then panel plate.
- Pattern Transfer – Expose and develop the circuit pattern.
- Pattern Plating – Electrolytically plate circuits and holes to 1 oz copper.
- Etching – Remove unprotected copper foil to form the final circuit traces.
- Solder Mask – Apply green or other coloured solder mask ink.
- Surface Finish – ENIG – Apply electroless nickel and immersion gold over the entire board.
- Gold Finger Plating – Selectively electroplate hard gold on the gold finger areas.
- Gold Finger Chamfering – Chamfer the insertion end.
- Electrical Test – Perform flying‑probe or fixture testing.
- Visual Inspection – Inspect per IPC‑A‑600.
- Packing & Shipping – Vacuum‑pack for moisture protection.
9. Performance and Quality Standards
This product is designed and manufactured in strict compliance with the following international standards:
| Standard | Title | Scope |
|---|---|---|
| IPC‑6012 | Qualification and Performance Specification for Rigid Printed Boards | Overall performance and reliability |
| IPC‑A‑600 | Acceptability of Printed Boards | Visual appearance and acceptance criteria |
| IPC‑4552 | ENIG Performance Specification | Immersion gold process control |
| IPC‑4556 | Electroplated Hard Gold Performance Specification | Gold finger hard gold process |
| IPC‑4101/21 | Specification for Rigid and Multilayer Printed Board Substrate Materials | FR4 material specifications |
| UL 94 V‑0 | Standard for Safety – Flammability of Plastic Materials | Flame‑retardant certification |
10. Why Choose UGPCB?
- Professional gold finger manufacturing experience – UGPCB has mature capabilities in electroplating and chamfering.
- End‑to‑end quality control – Every step from cutting to final inspection is managed per IPC standards.
- Traceable materials – Uses brand‑name FR4 laminates such as Shengyi S1141 with clear source traceability.
- Fast delivery – A dedicated double‑sided PCB production line supports rapid prototyping and volume production.
- Technical support – Provides DFM (Design for Manufacturability) reviews and impedance control recommendations.
11. Inquire Now
UGPCB is committed to delivering high‑value double‑sided gold finger PCB solutions to customers worldwide. Whether you need sample prototyping, small‑batch trial production, or high‑volume manufacturing, we have the expertise to serve you.
Contact us for a quote:
- Provide Gerber files or PCB design data
- Specify gold finger plating thickness (0.76 μm to 1.27 μm recommended)
- Confirm chamfer angle (30° or 45°) and any other special requirements
Data Source Declaration
The technical data and standard references in this document are sourced from: IPC‑6012 Qualification and Performance Specification for Rigid Printed Boards; IPC‑4552 Performance Specification for Electroless Nickel / Immersion Gold (ENIG) Plating for Printed Boards; IPC‑4556 Performance Specification for Electroplated Hard Gold for Connectors and Gold Fingers; IPC‑A‑600 Acceptability of Printed Boards; UL 94 Standard for Safety – Flammability of Plastic Materials; and the Shengyi S1141 Technical Data Sheet (compliant with IPC‑4101/21).
