A tala híbrida de alta frequência inclui uma placa de base, que é dobrado e posicionado na primeira camada de fio interno, a primeira camada de fio externo, and the top surface of the solder mask ink layer from bottom to top in order. The positioning circuit layer, the second outer wire layer, and the bottom surface of the substrate follow. The substrate includes a second layer of solder resist ink. The substrate comprises a high-frequency area and an auxiliary area; the auxiliary area is fixed, and the high-frequency area inlay should be positioned accordingly.
O modelo de utilidade fornece uma tala híbrida de alta frequência, divided into two parts: uma área de alta frequência e uma área auxiliar, providing mechanical support. The high-frequency area is independently arranged and only made of high-frequency materials. This minimizes the use of high-frequency board materials and reduces production costs while satisfying high-frequency signal requirements.
High Frequency Hybrid Product Classification:
- Camadas: 6
- Used Board: RO4350B + FR4
- Grossura: 1.6milímetros
- Tamanho: 210mm x 280mm
- Tratamento de superfície: Gold-plated
- Minimum Aperture: 0.25milímetros
- Aplicativo: Comunicação
- Características: High Frequency Mixed Pressure

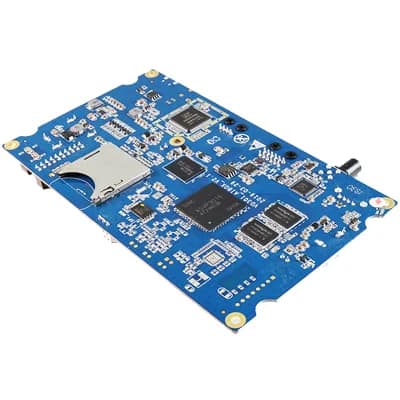

We provide Communication motherboard Turnkey PCB Assembly services. UGPCB is your one-stop Turnkey PCB Assembly company.
