The Critical Role of Drilling in PCB Fabrication

จบด้วย 200 steps in the การผลิต PCB กระบวนการ, drilling is a crucial stage that directly impacts the quality of interlayer conductor interconnections and component mounting channels. Industry statistics indicate that equipment-related issues account for up to 30% of downtime, while scientific equipment selection and standardized maintenance can reduce this figure to below 10%.

Advanced Equipment: The Foundation of Precision Drilling Technology

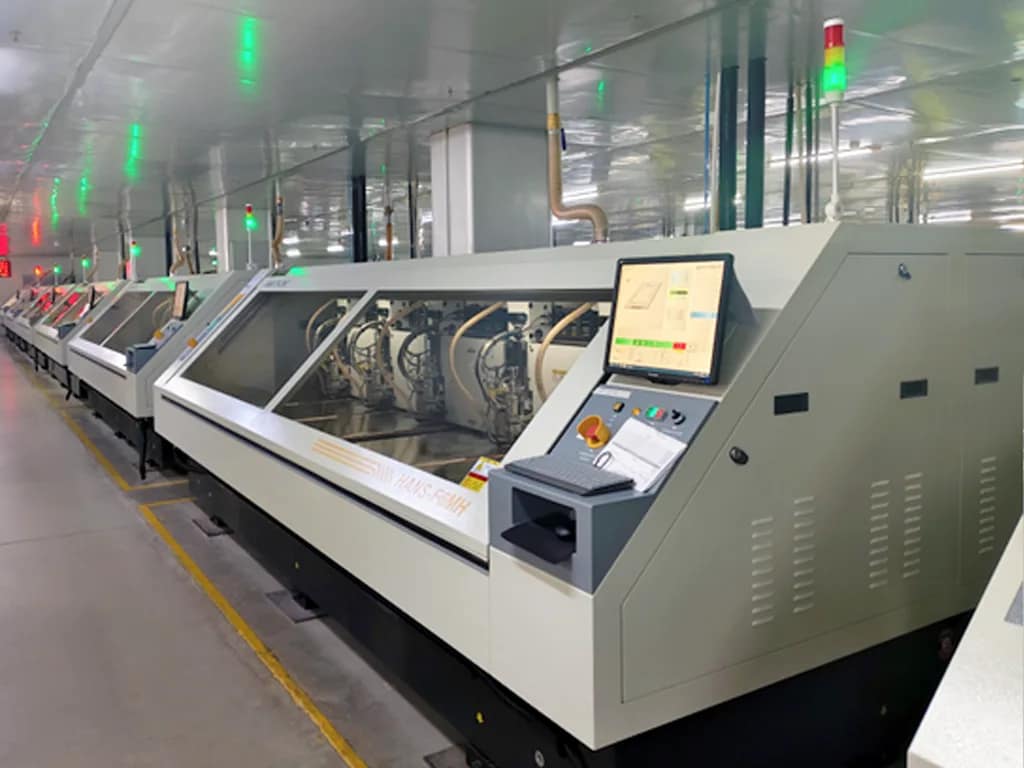

UGPCB’s investment in HAN’S CNC PCB drilling machines represents cutting-edge industry technology, providing a solid foundation for producing high-precision, high-reliability PCBs.

ข้อดีทางเทคนิคหลัก:

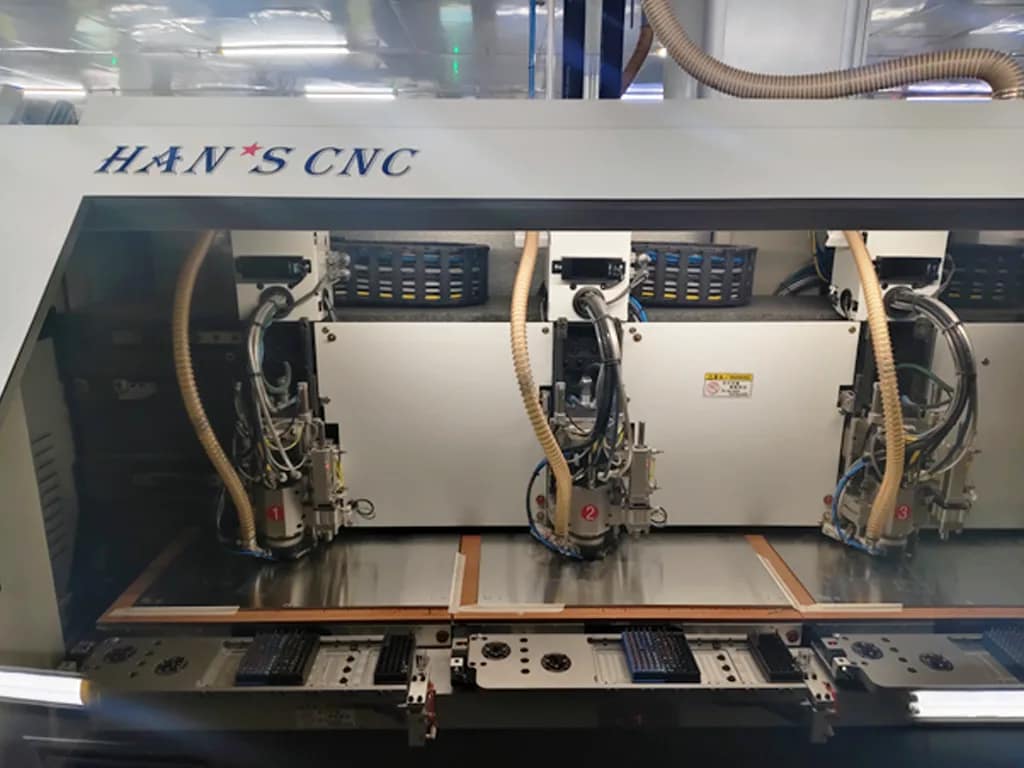

• Ultra-High Precision: Utilizing fully digital dynamic simulation analysis, we’ve designed a high-rigidity mechanical structure paired with a high-performance control system and selected high-precision components. This achieves a positioning accuracy of ±0.005mm, repeatability of ±0.0025mm, and a drilling accuracy of ±0.018mm.
• High Speed and Efficiency: Maximum X and Y-axis travel speeds reach 80m/min, with a Z-axis speed of 50m/min. Combined with a spindle speed range of 160K-250Krpm, this significantly enhances drilling processing efficiency.
• Intelligent Stability: The equipment features a contact-type broken tool detection system for real-time monitoring and automatic tool changing functionality supporting magazine capacities of 220 หรือ 300 tools, ensuring stability during continuous operation.

Professional Applications: Precision Machining for Diverse Needs

Leveraging our advanced CNC drilling equipment, UGPCB meets the demanding requirements of various complex PCB manufacturing scenarios.

Adapting to Diverse Materials and Designs

Our drilling technology handles various substrates, from standard FR-4 to ความถี่สูง, ความเร็วสูง, and high-Tg materials. The drill hole diameter range covers Φ0.1mm to 6.35mm, accommodating through-holes, blind vias, and buried vias.

For blind via processing, we integrate a contact trigger system with Z-axis closed-loop control, achieving drilling depth accuracy control within ±25μm.

Support for Large-Format Processing

Our equipment’s maximum working area of 2000×650mm(2-layer PCBS) enables the processing of large boards and panels, facilitating การผลิต PCB for industrial equipment, อุปกรณ์อิเล็กทรอนิกส์ยานยนต์, and other sectors.

Process Optimization: Technical Expertise Beyond Equipment

ถึง UGPCB, we understand that exceptional PCB manufacturing relies not only on advanced equipment but also on optimizing process parameters and stringent quality management.

Scientific Optimization of Drilling Parameters

Our engineering team optimizes spindle speed, feed rate, and retraction strategy through precise calculations and extensive testing based on substrate type, ความหนา, and hole size.

For FR-4 materials with hole diameters between 0.3-1.0mm, spindle speed is typically set between 15,000-30,000 RPM, with feed rates optimized between 5-20 mm/min to balance hole wall quality and processing efficiency.

Advanced Quality Inspection Systems

We employ “2D+3D Hybrid Inspection” Aoi equipment capable of detecting ±5μm line width deviations and solder mask bubbles with depths >10μm, achieving a defect detection rate exceeding 99.5%, far surpassing traditional 2D systems.

Empowering PCBA: From Circuit Boards to Complete Solutions

UGPCB’s expertise extends beyond PCB fabrication to the entire พีซีบี กระบวนการ, offering customers integrated solutions.

Precise Interconnection

High-precision drilling ensures proper alignment between layers in multilayer boards, laying a reliable foundation for subsequent SMT assembly and component insertion, thereby reducing defect rates in the PCBA assembly process.

การสนับสนุนด้านเทคนิค

We provide customers with DFM analysis, recommending optimal การออกแบบ PCB and drilling strategies tailored to different product characteristics, such as high-speed digital circuits, RF circuits, and power electronics.

Quality Traceability

We have established a comprehensive drilling quality feedback mechanism, conducting regular sampling inspections on drilled PCBs for metrics like hole size, hole wall roughness, and hole position accuracy. We utilize Statistical Process Control (SPC) methods to monitor and analyze the drilling process, enabling continuous improvement in drilling quality.

Industry Outlook: Leading Technological Development Trends

Addressing the growing demand for high-density, high-performance PCBs, UGPCB continuously pursues technological upgrades and innovation.

We actively monitor emerging technologies like diamond drill bits, which offer extreme hardness and wear resistance compared to traditional tungsten-cobalt carbide bits, achieving a service life of 10,000-20,000 holes per bit and significantly enhancing mass production efficiency.

Concurrently, we are advancing intelligent manufacturing by installing online monitoring systems for the drilling process, such as force sensors and acoustic emission sensors. These systems collect real-time data on drilling forces and acoustic signals during operation. Analyzing the trends in this data allows for the timely identification of abnormalities like drill bit wear or chip clogging.

บทสรุป

ถึง UGPCB, we firmly believe that exceptional PCB manufacturing begins with every precise drill hole. From simple single-sided boards to complex บอร์ด HDI และ พื้นผิว IC, our drilling technology ensures the reliability and consistent performance of our customers’ สินค้า.

เยี่ยมชม UGPCB official website or contact our technical team to learn more about our PCB manufacturing capabilities. Let’s pioneer your path to electronic innovation together with our precision drilling technology!
