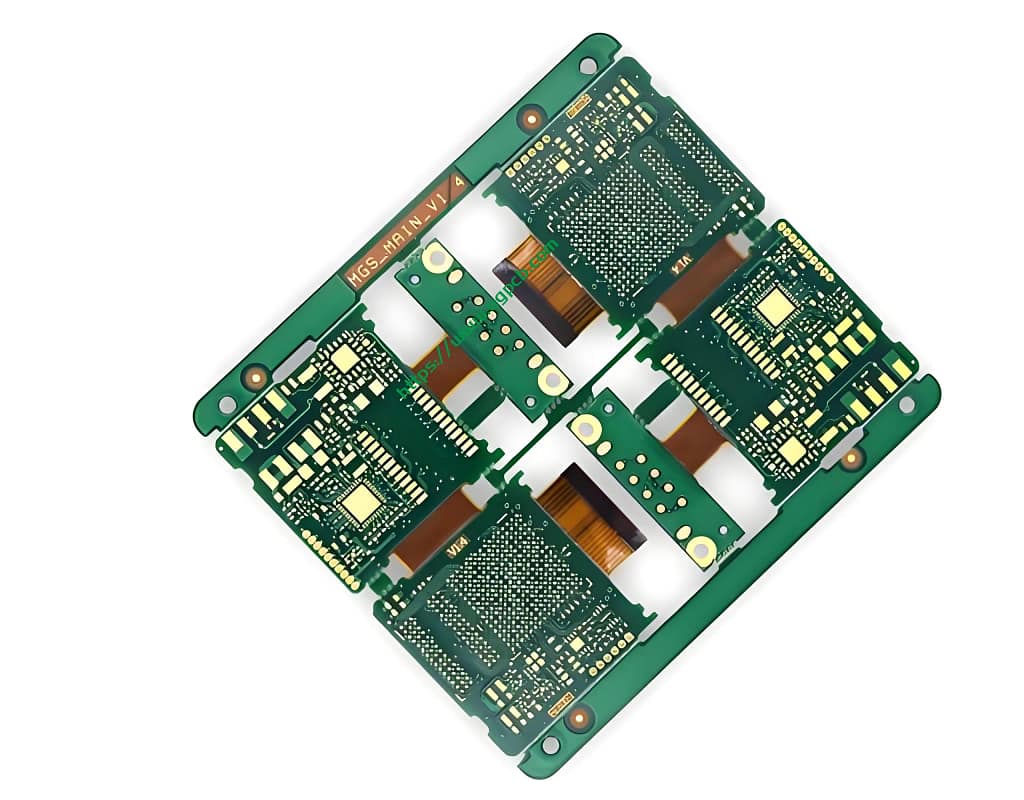

UGPCB Rigid-Flex Camera Module PCB: Precision Imaging Solutions for Compact Electronics

Engineered for the Edge of Innovation

The evolution toward bezel-less displays and multi-lens camera systems in smartphones, coupled with the demand for miniaturization in medical endoscopy, presents a universal challenge: every millimeter of internal space saved translates to significant design gains. Traditional rigid مركبات ثنائي الفينيل متعدد الكلور cannot bend, while flexible circuits (FPCs) often lack adequate support in component-dense areas.

UGPCB introduces its advanced Rigid-Flex Camera Module PCB, a solution that masterfully combines the mechanical stability of FR-4 with the dynamic flexibility of polyimide (باي). This innovative interconnect eliminates connectors and harnesses, providing a direct, موثوق, and space-efficient link for compact camera systems.

1. Product Overview: Defining the Rigid-Flex Camera Module PCB

أ ثنائي الفينيل متعدد الكلور جامد المرن is not a simple assembly of a rigid board and a flexible cable connected by a connector. It is a monolithic, inseparable structure formed by laminating thin, flexible polyimide substrates with robust FR-4 epoxy glass-reinforced cores through advanced vacuum lamination processes .

UGPCB’s offering is specifically engineered for وحدات الكاميرا. It features a 2-layer rigid + 2-layer flexible بناء. This design replaces bulky connectors and cables found in traditional setups, drastically shortening the signal path between the CMOS image sensor and the main application processor.

2. Design Principles: The Art of Balancing Stiffness and Flexibility

Designing this type of PCB requires precise 3D planning to balance electrical performance with mechanical endurance. UGPCB’s engineering focuses on several critical aspects:

• Stack-up Architecture: The design employs a symmetrical construction with a rigid section thickness of 0.4mm و flexible section thickness of just 0.15mm. This precise control ensures that during bending, the neutral axis of the flexible region aligns with the copper conductor, significantly reducing stress and preventing trace fracture.

• Transition Zone Management: The interface between rigid and flexible areas is the product’s most critical zone. UGPCB utilizes controlled adhesive flow techniques and via plugging to prevent delamination or stress concentration during repeated flexing cycles.

• سلامة الإشارة: To handle high-speed data from modern image sensors, the design adheres to strict impedance control, facilitated by a minimum trace/space of 3mil/3mil. This ensures clean signal transmission, free from noise or interference that could degrade image quality.

3. مواد & أداء: Built on a Foundation of Quality

The exceptional performance of this PCB stems from a rigorous selection of premium materials:

• Rigid Layer Material: High-grade فر-4 provides the necessary mechanical strength. It guarantees absolute flatness for mounting the CMOS sensor, a non-negotiable requirement for maintaining the precise focal plane of the camera module.

• Flexible Layer Material: Polyimide (باي) film is the industry standard for the flexible layers . PI offers exceptional heat resistance (withstanding lead-free reflow profiles), outstanding flexural endurance for both static and dynamic bending applications, and excellent chemical stability.

• الانتهاء من السطح: The PCB features an Electroless Nickel Electroless Palladium Immersion Gold (اينيبيك) finish. This advanced surface treatment deposits layers of nickel, palladium, and gold . It provides a perfectly flat surface, excellent solderability for miniature components, and is ideal for aluminum or gold wire bonding, which is often required in sensor packaging .

4. المواصفات الرئيسية

The following parameters demonstrate UGPCB’s capability in high-precision, miniaturized manufacturing:

• نموذج: Rigid-Flex Camera Module PCB

• Material Combination: فر-4 (Rigid) + باي (Flex)

• تكوين الطبقة: Rigid 2 طبقات / Flex 2 طبقات

• Solder Mask Color: أخضر / أبيض (Optional)

• سمك الانتهاء: Rigid Area 0.4mm / Flex Area 0.15mm

• Copper Weight: 1 أوقية (approx. 35µm)

• Minimum Line Width/Space: 3ميل / 3ميل

• المعالجة السطحية: اينيبيك (NiPdAu)

• Primary Application: Camera Module PCB (for smartphones, السيارات, طبي, drones)

5. How It Works: Structure and Functionality

هيكليا, this PCB can be visualized as a “rigid island” floating on a “flexible sea.”

• Rigid Zone: The thicker (0.4مم) FR-4 areas serve as the mounting platform for the image sensor and passive components. This rigidity ensures that during auto-focus or optical image stabilization, the solder joints connecting the sensor are not subjected to mechanical stress.

• Flexible Zone: The ultra-thin (0.15مم) PI-based areas act as a ribbon cable, routing high-speed image data from the rigid island to the main logic board. Its thin profile allows it to be folded into tight Z-shapes or U-shapes, conforming perfectly to the limited space inside a smartphone, drone, or endoscopic camera.

• Operational Principle: When light hits the camera sensor, the generated electrical signals travel through the precision-etched copper traces within the flexible zone. The integrity of these signals is maintained by the impedance-controlled design, ensuring the final image is sharp and free from artifacts.

6. عملية التصنيع: A Journey of Precision

UGPCB follows industry-leading processes, aligned with IPC standards, to ensure each rigid-flex PCB meets the highest reliability standards :

1. إعداد المواد & Cleaning: FR-4 and PI base materials are cut to size. The PI material undergoes plasma treatment to enhance surface energy, ensuring strong adhesion during lamination.

2. Inner Layer Imaging: Using photolithography, the fine 3ميل circuits are etched onto both rigid and flexible layers. الفحص البصري الآلي (الهيئة العربية للتصنيع) verifies the absence of defects like opens or shorts .

3. التصفيح & Vacuum Bonding: The prepared inner layers are stacked with bonding sheets (prepreg) and laminated under high temperature and pressure in a vacuum environment. This process fuses the rigid and flexible sections into a single, inseparable unit without unwanted adhesive bleed .

4. حفر & تصفيح: Mechanical and UV laser drilling create micro-vias for layer interconnection. These holes are then made conductive through electroless copper plating and reinforced with electroplated copper.

5. Outer Layer & الانتهاء من السطح: The outer circuit layers are formed, followed by the application of the اينيبيك surface finish.

6. Coverlay Application & Profiling: A protective polyimide coverlay is applied. Laser cutting is then used to precisely “open” the coverlay over pads and to profile the final board shape, ensuring zero mechanical stress on the delicate flex areas .

7. Scientific Classification

According to industry standards, this product is classified as:

• By Structure: Multilayer Rigid-Flex Printed Circuit Board (specifically a 2R+2F construction).

• By Application: Optoelectronic Module PCB (وحدة الكاميرا).

• By Technology: مؤشر التنمية البشرية ثنائي الفينيل متعدد الكلور جامد فليكس, due to its fine 3mil trace width and microvia requirements.

8. التطبيقات: Beyond the Smartphone

While optimized for camera modules, the attributes of this PCB make it ideal for a range of demanding applications:

• الالكترونيات الاستهلاكية: Multi-camera modules in flagship smartphones, cameras in foldable devices, and ultra-slim laptop webcams.

• إلكترونيات السيارات: 360-degree surround-view cameras and Driver Monitoring Systems (DMS). These environments demand reliability under extreme vibration and temperature fluctuations (-40°C to +85°C), where rigid-flex boards eliminate the risk of connector failure.

• الأجهزة الطبية: Miniature endoscopes and imaging probes. The combination of extreme thinness and high reliability allows for insertion into small cavities while transmitting high-definition video.

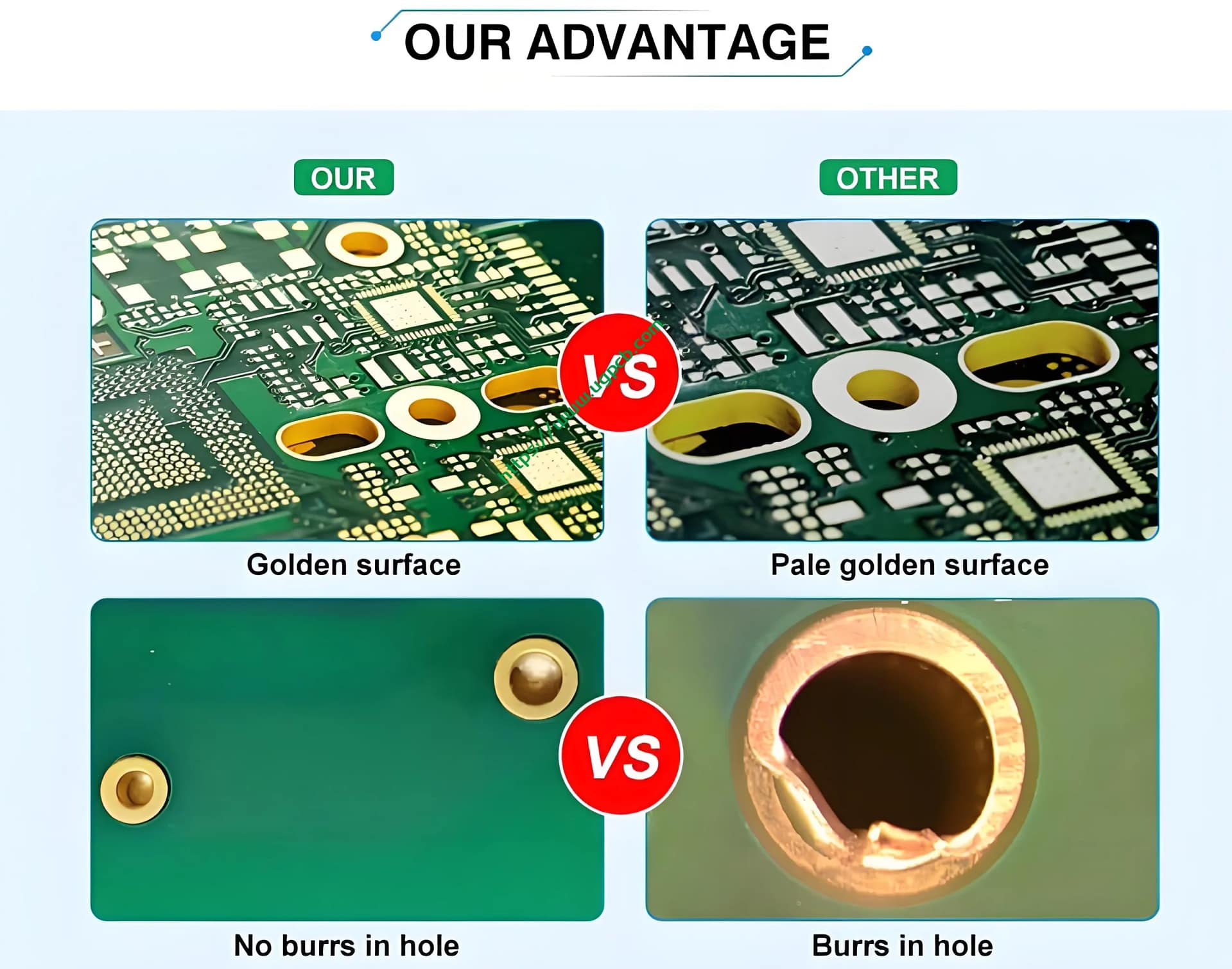

9. Why Partner with UGPCB for Your Camera Module Needs?

1. Unlock Space: The combination of a 0.4mm rigid zone and a 0.15mm flexible zone can save over 60% of the space compared to traditional “board-to-cable” interconnect solutions.

2. Enhance Reliability: By eliminating connectors and solder joints, the failure rate in high-vibration environments can be reduced by up to 70%.

3. Guarantee Signal Fidelity: Precision 3mil/3mil lines ensure stable transmission channels for high-speed interfaces like MIPI, preserving image integrity from sensor to processor.

Get a Quote and Empower Your Next-Gen Product

UGPCB is more than a manufacturer; we are a partner in innovation. Whether you are developing a flagship smartphone or a cutting-edge medical imaging device, our Rigid-Flex Camera Module PCB is engineered to meet your most demanding requirements for space, weight, والموثوقية.

Send your Gerber files or design inquiries to [sales@ugpcb.com] . Our engineering team will provide a professional DFM (تصميم للتصنيع) analysis and a competitive volume quote within 24 ساعات. Choose UGPCB for precision you can rely on.
