Descripción general del producto: A Precision-Engineered Control Core for Hair Curlers

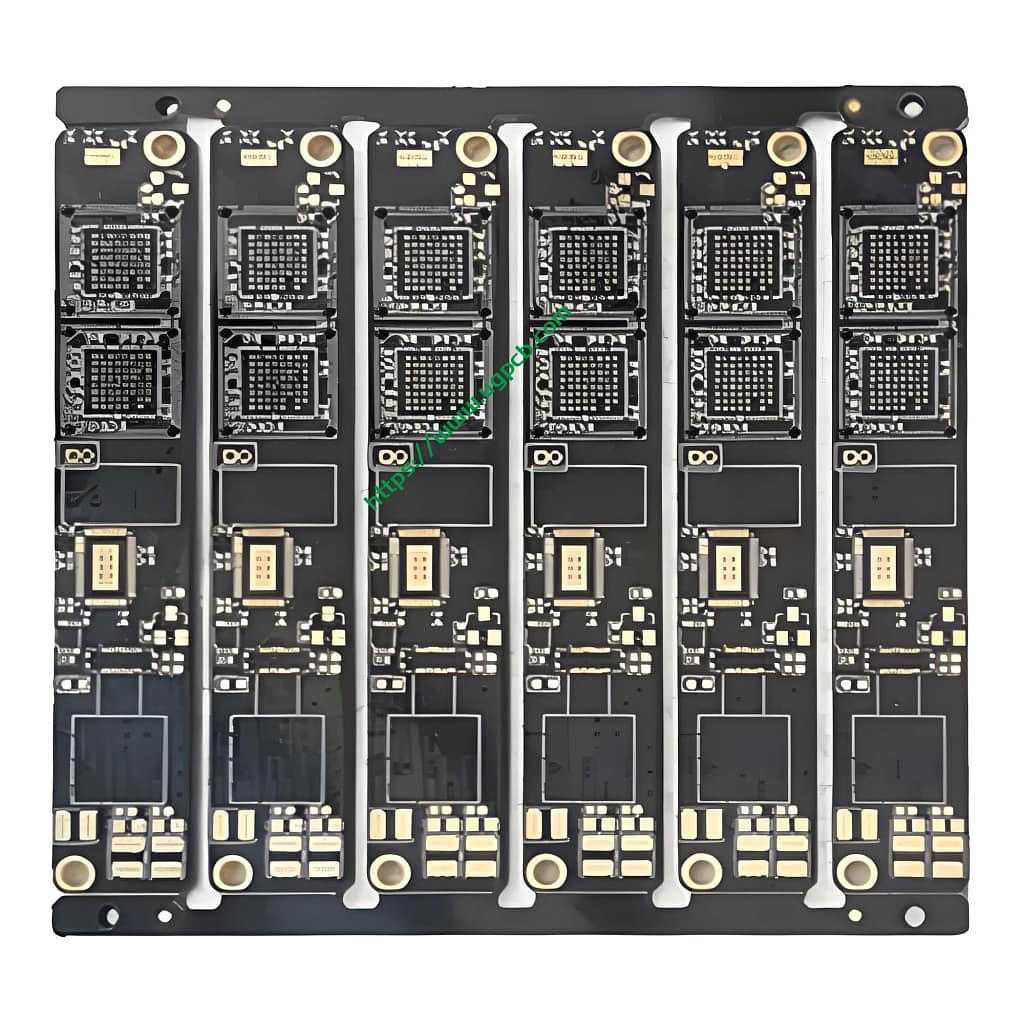

The hair curler PCB circuit board serves as the essential control component in modern hair styling devices. It manages temperature precision, distribución de energía, and safety protection functions. UGPCB offers this professional-grade hair curler printed circuit board with high-standard industrial design and manufacturing processes. It delivers a stable and reliable electronic control solution for various hair styling equipment.
This hair curler PCBA core board measures 76.82 × 13.6 milímetros. se utiliza FR-4 rigid glass-epoxy laminate material. FR-4 is an internationally recognized flame-retardant epoxy glass cloth laminate. Its flame retardancy meets UL 94 V-0 estándares. This requires the material to self-extinguish within 10 seconds during vertical burn testing. It must also produce no flaming drips that ignite cotton. This provides fundamental safety assurance for hair curlers operating under high-power heating conditions. The material has a temperatura de transición vítrea (tg) de 130–140°C. This ensures effective resistance to thermal stress during hair curler operation.
The product uses a2-layer double-sided diseño de tablas. Board thickness is1.0 milímetros. Copper foil thickness is1/1 ONZ (aproximadamente 35 μm per layer). Minimum aperture is0.32 milímetros. Line width and spacing are0.3 mm y 0.41 milímetros respectivamente. Surface treatment usesOSP (Conservantes de soldadura orgánica) antioxidante finalizar. Solder mask isnegro conblanco silkscreen characters. This delivers a clean and professional appearance.
This hair curler circuit board is now available on the Sitio web oficial de la UGPCB. It suits intelligent hair curlers, straightening-curling combo devices, and other hair styling equipment.
Definición del producto: What Is a Hair Curler PCB?
A hair curler PCB (Placa de circuito impreso) is the core electronic component inside a hair curler. It provides electrical connections, transmisión de señal, and functional control. The board connects power input, main control chips, temperature sensors, heating elements, and display modules through conductive traces. Estos componentes form a complete functional system.
From a technical perspective, this is a consumer-grade rigid double-sided printed circuit board. It falls under the rigid printed board category defined in IPC-6012. Bajo PCI product class classification, este hair curler tarjeta de circuito impreso belongs to Clase 2 (Productos electrónicos de servicio dedicado). This classification applies to consumer devices requiring continuous operation and extended service life.
Esteplaca de circuito de rizadores de cabello integrates four core functional modules through precision circuit design:
- Power input circuit: Converts external power (AC 110V/220V or DC battery) to the operating voltage required by the device.
- Power management circuit: Regulates, filtros, and distributes power to ensure stable operation of each module.
- Main control circuit: Includes the main control chip, charging detection circuit, and battery temperature detection circuit.
- Heating wire control circuit: Precisely controls heating element power on/off to achieve temperature regulation.
In terms of product form, estehair curler PCB is supplied as a bare board (without PCBA assembly). Customers can perform their own component mounting and functional customization based on specific product requirements.
Destacados de diseño: Precision Calculation and Engineering Expertise
Compact Dimensions with High-Density Routing
Estehair curler PCB board measures just76.82 × 13.6 milímetros. This long and narrow space must accommodate complete power management, main control, and heating control circuits. Design engineers face significant high-density routing challenges. The precision parameters—minimum aperture0.32 milímetros, ancho/espaciado de línea0.3/0.41 milímetros—enable reliable trace routing within the limited board area.
PorIPC-2221 (Norma genérica sobre diseño de tableros impresos), designers must consider electrical clearance (creepage distance), control de impedancia, y gestión térmica. El 0.32 mm minimum aperture ensures reliable plated-through holes while leaving sufficient space for high-density routing.
Diseño de gestión térmica
Hair curlers generate heating element temperatures ranging from 80°C to 200°C during operation. El tarjeta de circuito impreso sits close to the heat source as the control board. It must demonstrate excellent heat resistance. El FR-4 material choice (Tg 130–140°C) y 1.0 milímetros board thickness maintain mechanical strength while optimizing thermal dissipation paths.
Diseño de rendimiento eléctrico
El1/1 ONZ copper foil thickness (aproximadamente 35 μm per layer) ensures sufficient current-carrying capacity. Per IPC-2221 current-carrying calculation standards, 1 OZ copper can carry approximately 1–1.5 A per millimeter of trace width at a 10°C temperature rise. El 0.3 mm trace width combined with 1 OZ copper thickness adequately meets the current requirements of hair curler heating control circuits.
Selección de acabado superficial
OSP (Conservantes de soldadura orgánica) antioxidant surface treatment is selected with an OSP film thickness of0.2–0.5 μm. This choice is based on several key considerations:
- Ventaja de costos: OSP offers lower cost, suitable for high-volume consumer electronics production.
- Excelente planitud superficial: OSP-treated pads provide a very flat surface, ideal for SMT assembly.
- Respetuoso con el medio ambiente: OSP contains no lead or other hazardous substances, meeting RoHS requirements.
- Buena soldabilidad: The OSP protective film is quickly removed by flux at soldering temperatures, ensuring quality solder joints.
It is worth noting that OSP-finished PCBs should be assembleddentro 8 a 24 horas of unpacking to prevent copper surface oxidation. Customers should coordinate their production schedules accordingly.
Principio de trabajo: From Power Input to Precision Temperature Control
System Workflow
The overall working principle of thishair curler control circuit follows five steps:
Paso 1: Power Input and Conversion. External power (AC 110V/220V or built-in lithium battery) enters the PCB through the power input circuit. The power management circuit rectifies, filtros, and regulates the voltage. It then supplies the required operating voltage to each module.
Paso 2: Temperature Setting and Signal Acquisition. Users set the desired temperature (80–200°C adjustable) via buttons or knobs. Mientras tanto, the on-boardNTC thermistor temperature detection circuit monitors the heating element temperature in real time. It converts temperature signals into electrical signals and feeds them back to the main control chip.
Paso 3: Main Control Chip Computation and Decision. La MCU (Unidad de microcontrolador) receives both the set temperature value and the real-time temperature feedback. It performs calculations using a PID (Proportional-Integral-Derivative) control algorithm or a simplified temperature control logic. It determines the deviation between current and target temperatures.
Paso 4: PWM Drive Output. The MCU outputs PWM (Modulación de ancho de pulso) signals based on computation results. These signals control the heating element power through the drive circuit. When temperature falls below the set value, heating power increases. When temperature approaches or reaches the set value, heating power decreases or shuts off.
Paso 5: Safety Protection Mechanism. The system continuously monitors battery temperature, heating wire temperature, and circuit current. When anomalies are detected—such as over-temperature, over-current, or short circuits—thefault detection and auto-protection circuit immediately cuts off power to ensure user safety.
Bimetal Thermostat Principle (Reference for Traditional Solutions)
Some hair curler products use bimetal strips as temperature control elements. The principle works as follows: as temperature rises, heat transfers to the bimetal disc. Because the two metals have different coefficients of thermal expansion, the disc deforms and bends. At a predetermined temperature, it rapidly actuates. Through a mechanical mechanism, it opens or closes contacts, thereby switching the circuit on or off. Modern intelligent hair curlers typically use MCU-plus-temperature-sensor electronic temperature control solutions. These offer significantly higher temperature control accuracy.
Primary Applications and Use Scenarios
Core Applications
Esteplaca de circuito PCB del rizador de pelo sirve como elcontrol mainboard for hair curlers, hair straighteners, straightening-curling combo devices, and other hair styling equipment. It delivers the following functions:
- Precision temperature control: Supports multi-level temperature adjustment from 80–200°C.
- Gestión de energía: Supports both corded power and built-in lithium battery charging management.
- Safety protection: Multi-layer protection including over-temperature, over-current, and short-circuit protection.
- User interaction: Drives LED/LCD displays to show real-time temperature and operating status.
- Portable design: Cordless operation with built-in battery after full charge, convenient for travel.
Escenarios de aplicación
| Escenario de aplicación | Descripción |
|---|---|
| Home hair curlers | Personal daily styling with adjustable temperature for different hair types |
| Professional hair salons | Requires precise temperature control, respuesta rápida, and long continuous operation |
| Travel portable curlers | Lithium battery powered, USB charging, lightweight and compact |
| Smart styling devices | Intelligent curlers with integrated negative ion, vapor, and other added features |
| Straightening-curling combo | Multi-functional styling devices combining straightening and curling capabilities |
Clasificación de productos
This product can be classified along multiple dimensions:
Por material de sustrato
FR-4 Rigid Printed Board – Glass-fiber reinforced epoxy resin copper-clad laminate
Por recuento de capas
2-Layer Double-Sided Board – Circuits on both top and bottom layers
Por acabado superficial
OSP (Conservantes de soldadura orgánica) Finished Board
By Solder Mask Color
Black Solder Mask with White Silkscreen PCB
Por clase de rendimiento IPC
Clase 2 (Productos electrónicos de servicio dedicado) – Suitable for consumer electronics requiring continuous operation and extended service life
By Application Field
PCB de electrónica de consumo / Personal Care Device PCB
By UL Certification Category
Rigid Printed Wiring Board – Compliant with UL 796 estándares
Material Composition and Performance Specifications
sustrato: FR-4 Glass-Epoxy
FR-4 stands for “Flame Retardant Type 4.” This indicates glass-fiber reinforced epoxy material with a UL 94 V-0 flame retardancy rating. Key performance parameters include:
| Parámetro de rendimiento | Especificación | Estándar de referencia |
|---|---|---|
| Temperatura de transición vítrea (tg) | 130–140°C | DSC test method |
| Flame Retardancy Rating | UL 94 V-0 | Estándar UL |
| Conductividad térmica | 0.25–0.3 W/m·K | - |
| Resistencia a la temperatura | Suitable for leaded soldering processes | - |
Lámina de cobre
Both inner and outer layer copper foil thickness is1 ONZ (aproximadamente 35 μm) . Copper foil serves as the primary conductor for circuit traces. Its thickness directly affects trace current-carrying capacity and impedance characteristics.
Acabado superficial: OSP Antioxidant Layer
OSP (Conservantes de soldadura orgánica) is an organic film chemically grown on clean bare copper surfaces. This film providesresistencia a la oxidación, thermal shock resistance, and moisture resistance. It protects copper surfaces from oxidation or sulfidation under normal environmental conditions. OSP film thickness is typically0.2–0.5 μm.
Máscara de soldadura y serigrafía
- máscara de soldadura: Black ink covering all areas except pads. Provides insulation and protection.
- Platina: White characters marking component designators, polarity, y otra información.
Product Structure and Features
Estructura del producto
Esteplaca de circuito de rizadores de cabello uses the following layer structure:
- Top copper layer (1 ONZ) – Primary signal and power traces
- Sustrato FR-4 (1.0 milímetros) – Mechanical support and electrical insulation
- Bottom copper layer (1 ONZ) – Auxiliary signal traces and ground plane
- Black solder mask – Covers top and bottom layers for circuit protection
- OSP surface finish – Protects pad copper and ensures solderability
- White silkscreen markings – Clearly labels component positions
Características clave
① Fabricación de alta precisión
Precision parameters—minimum aperture 0.32 milímetros, ancho/espaciado de línea 0.3/0.41 mm—demonstrate high-precision PCB fabrication capability. This ensures signal integrity and reliability.
② Excellent Thermal Management
Sustrato FR-4 (Tg 130–140°C) combinado con 1.0 mm board thickness maintains dimensional stability and electrical insulation under high-temperature hair curler operating conditions.
③ Reliable Surface Finish
OSP antioxidant finish provides excellent solderability while delivering a flat soldering surface suitable for high-density SMT assembly. The black solder mask with white silkscreen ensures clear appearance marking and reliable insulation protection.
④ Compact Form Factor
El 76.82 × 13.6 mm long and narrow dimensions are specifically designed for hair curler handle interiors. This maximizes space savings within the device.
⑤ Complete Functional Integration
A single 2-layer board integrates four major circuit modules: power input, gestión de energía, main control, and heating control. This delivers a complete control chain from power source to heating element.
⑥ International Standards Compliance
Product design and manufacturing comply withIPC-6012 (Especificación de calificación y rendimiento para tableros impresos rígidos) yUL 796 (Estándar para tableros de cableado impresos).
Proceso de fabricación
UGPCB follows this standard manufacturing process for theplaca de circuito PCB del rizador de pelo:
Paso 1: Inspección de material entrante
Inspect FR-4 copper-clad laminate to verify board thickness (1.0 milímetros), copper foil thickness (1/1 ONZ), and other parameters meet specifications.
Paso 2: Circuit Pattern Generation (Direct outer layer for double-sided boards)
- Laminación: Apply dry film photoresist to copper surfaces.
- Exposición: Transfer circuit patterns from artwork to dry film.
- Desarrollo: Remove unexposed dry film to expose copper areas for etching.
- Aguafuerte: Use etchant to remove exposed copper, forming circuit traces.
- Banda: Remove remaining dry film protective layer.
Paso 3: Inspección óptica AOI
Usar AOI (Inspección óptica automatizada) equipment to scan circuits. Check for opens, bermudas, and under-etch defects.
Paso 4: Perforación
Drill holes per design specifications. Minimum aperture is0.32 milímetros.
Paso 5: Deposición de cobre no electrolítica y revestimiento de paneles
Deposit a thin copper layer on hole walls (cobre no electrolítico). Then electroplate to build up hole wall copper thickness. This achieves interlayer electrical connections.
Paso 6: Outer Layer Circuit Generation (Second circuit process for double-sided boards)
Repeat lamination, exposición, desarrollo, aguafuerte, and stripping to form final circuit patterns.
Paso 7: Aplicación de máscara de soldadura
- Print black ink: Apply black solder mask ink to board surfaces.
- Expose and develop: Expose and develop to expose pad areas.
- Cure: Heat-cure the solder mask layer.
Paso 8: Acabado superficial: OSP
Immerse PCBs in OSP chemistry to grow a0.2–0.5 μm organic protective film on exposed copper surfaces.
Paso 9: Impresión de plisabra
Print white silkscreen characters using high-precision laser文字 printing.
Paso 10: Prueba eléctrica
Perform electrical continuity and insulation testing using flying probe or dedicated test fixtures.
Paso 11: Inspección final y embalaje
Realizar inspección visual, medición dimensional, and sample reliability testing. Package in vacuum-sealed bags upon approval.
Use Scenarios and Target Customers
Typical Use Scenarios
Guión 1: Home Hair Curler Manufacturing
Home appliance brands developing hair curler products need a stable, cost-effective PCB control board. Esteplaca de circuito de rizadores de cabello offers 80–200°C wide-range temperature adjustment to meet different hair type styling requirements.
Guión 2: Professional Salon-Grade Styling Equipment
Professional salons demand higher temperature stability, response speed, y durabilidad. FR-4 substrate and 1 OZ copper foil design ensure reliability during extended continuous operation.
Guión 3: Portable Cordless Hair Curlers
Battery-powered portable curlers require integrated charging management, battery protection, and temperature control on a single PCB. The compact form factor (76.82 × 13.6 milímetros) fits perfectly inside handle enclosures.
Guión 4: Smart Hair Styling Ecosystems
Smart curlers integrating negative ion emission, steam generation, and APP control require additional interfaces and processing capability from the PCB.
Target Customer Groups
- Hair styling device brands/OEM manufacturers: Need high-quality PCBs for hair curler, straightener, and combo device production.
- PCBA solution design companies: Require standard PCBs for solution development and validation.
- Electronics R&D institutions: Engineering teams developing innovative hair styling equipment.
- Cross-border e-commerce sellers: Seeking stable supply chains for hair styling device exports.
Por qué elegir UGPCB?
Capacidad de fabricación profesional
UGPCB provides one-stop services from diseño de PCB and fabrication to PCBA assembly. Este placa de circuito PCB del rizador de pelo uses industry-leading manufacturing processes. Every board meets IPC Class 2 estándares de calidad.
Estricto control de calidad
From incoming material inspection to final product shipment, every process step undergoes rigorous quality control. AOI (Inspección óptica automatizada) ensures defect-free circuits, and electrical testing guarantees 100% electrical performance compliance.
International Safety Standard Compliance
Products comply withIPC-6012 (Rigid Printed Board Performance Specification) yUL 796 (Printed Wiring Board Safety Standard). Substrate flame retardancy meetsUL 94 V-0. This provides strong support for customers to pass global safety certifications.
Fast Response and Delivery
Customers simply provide Gerber files, BOM lists, and design documents. The UGPCB team delivers complete quotationsdentro 24 horas.
Request a Quote – Get Your Custom Solution Today
UGPCB offers thisplaca de circuito PCB del rizador de pelo in standard production volumes. Customization options are also available—including size modification, layer count increase, surface finish changes (such as ENIG immersion gold, HASL hot air solder leveling), and solder mask color customization.
📧 Get a Quote: Send Gerber files + BOM list to the UGPCB official email.
💬 Online Inquiry: Visit the UGPCB official website and contact online customer service.
📞 Phone Consultation: Call the UGPCB official service hotline.
UGPCB – Your Trusted PCB/PCBA One-Stop Service Partner
Declaración de fuente de datos
The technical data and standards referenced in this article are sourced from the following authoritative organizations:
- PCI (Asociación que conecta industrias electrónicas) – IPC-6012Especificación de calificación y rendimiento para tableros impresos rígidos; IPC-2221Norma genérica sobre diseño de tableros impresos
- UL (Laboratorios aseguradores) – UL 796Estándar para tableros de cableado impresos; UL 94Norma para pruebas de inflamabilidad de materiales plásticos para piezas de dispositivos y electrodomésticos
- NO (Asociación Nacional de Fabricantes Eléctricos) – FR-4 material grade standards
- Industry Technical References – FR-4 material property parameters; OSP surface finish process parameters
All data above are sourced from publicly released standard documents and industry technical literature. For further verification, please contact us with any questions.
