UGPCB Rogers RO4350B Hybrid PCB: The Perfect Balance of High-Frequency Performance and Cost-Effectiveness

Introducere

In today’s rapidly evolving communication industry—especially with the widespread adoption of 5G technology—RF circuits demand unprecedented performance from PCB -uri. Engineers face a constant challenge: they must ensure excellent signal integrity and low-loss transmission at high frequencies while managing strict BOM cost controls. Is there a solution that preserves critical RF performance without driving up manufacturing costs?

The answer is yes. UGPCB’s Rogers RO4350B Hybrid PCB directly addresses this industry challenge. This 4-layer mixed-material board combines the RF excellence of Rogers RO4350B with the mechanical strength and cost benefits of FR-4. In this article, we explore its overview, Parametri tehnici, production processes, and wide-ranging applications in communications and beyond. Discover how UGPCB’s expertise delivers PCB-uri de înaltă frecvență with unmatched quality.

1. Product Overview: What is a Rogers RO4350B Hybrid PCB?

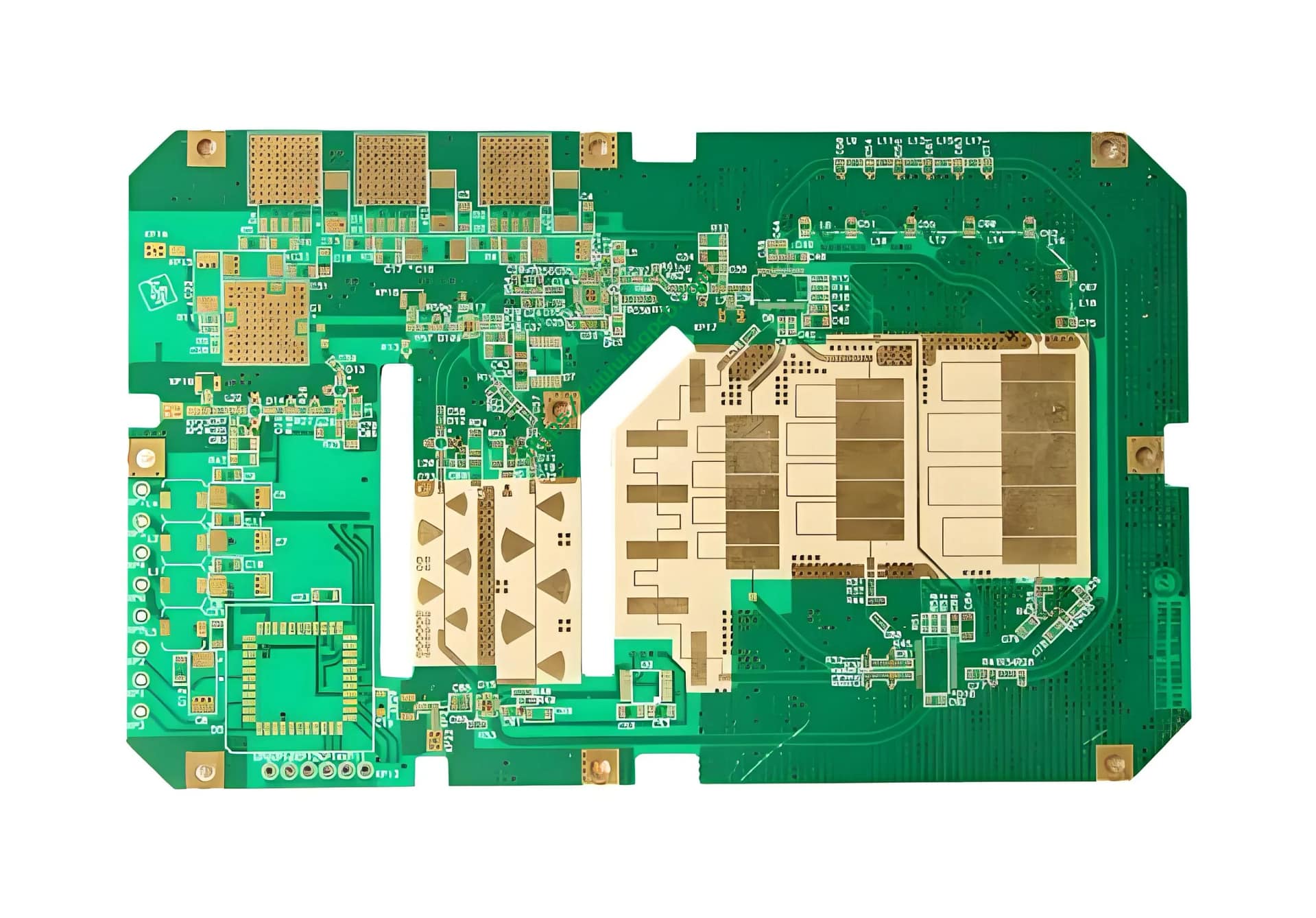

O Rogers RO4350B Hybrid PCB integrates Rogers RO4350B high-frequency laminate with traditional FR-4 epoxy glass fabric through a specialized lamination process.

UGPCB’s specific configuration uses a unique “2+2” stack-up: 2 layers of Rogers RO4350B combined with 2 layers of FR-4. This design leverages RO4350B’s superior RF properties alongside FR-4’s structural integrity and cost advantages. It represents a highly cost-effective solution for RF and microwave circuit applications.

2. Scientific Classification

To help customers select the right product, UGPCB classifies this board as follows:

• După Material: High-Frequency Hybrid Circuit Board

• By Material Combination: Rogers RO4350B + FR-4

• By Layer Count: 4-Strat PCB multistrat

• Prin cerere: Communication High-Frequency PCB

3. Core Parameters and Material Analysis

UGPCB maintains rigorous quality control over raw materials and manufacturing processes. Every PCB meets high standards. Below are the detailed specifications:

Material Highlights: Rogers RO4350B

RO4350B is a hydrocarbon/ceramic-filled woven glass reinforced laminate. It offers these key advantages:

1. Stable Dielectric Constant: Dk value of 3.48 remains stable across wide frequency and temperature ranges. This stability is critical for maintaining signal phase integrity.

2. Low Loss Factor: Extremely low dissipation factor minimizes signal attenuation during high-speed transmission.

3. Excellent Thermal Conductivity: Higher thermal conductivity than traditional PTFE materials aids heat dissipation from high-power components.

4. Excellent Processability: Its mechanical rigidity surpasses soft PTFE materials. It fully supports standard FR-4 PCB manufacturing processes (foraj, gravare, etc.), reducing fabrication complexity and cost.

Material Highlights: FR-4

As the industry’s most common PCB substrate, FR-4 handles power management and digital control circuitry. Its inclusion significantly reduces overall board material costs while maintaining necessary performance.

4. Performance and Structural Characteristics

4.1 Unique Hybrid Laminate Structure

UGPCB’s 4-layer board features a symmetric yet functionally asymmetric stack-up. The top and bottom layers (L1 & L4) use RO4350B for high-frequency RF signal routing. The inner layers (L2 & L3) use FR-4 for power planes and low-speed control signals. This structure balances RF performance with mechanical stability.

4.2 Precise Impedance Control

RO4350B’s accurate Dk value (3.48), combined with UGPCB’s strict etching processes, allows us to maintain characteristic impedance (De ex., 50Oh) tolerances within tight ranges. This precision is vital for RF front-end modules in communication base stations.

4.3 Superior Environmental Reliability

RO4350B features extremely low moisture absorption (approximately 0.06%) and a high glass transition temperature (TG > 280° C.). The PCB maintains stable electrical performance even in humid or high-temperature environments.

4.4 Aur de imersiune (De acord) Surface Finish

De acord provides an exceptionally flat surface. This flatness is crucial for minimizing skin effect losses at high frequencies. The gold layer also protects pads, ensuring excellent solderability and corrosion resistance.

5. Working Principle and Design Considerations

Principiul de lucru

Within this PCB, cel Rogers RO4350B material layers primarily transmit and process RF signals. Its stable, low-loss characteristics ensure high-fidelity signal propagation from input to output. The FR-4 layers supply power to RF chips, transmit low-speed control logic signals, and provide mechanical support for the entire board.

Key Design Considerations

Engineers designing such hybrid PCBs must pay attention to:

• CTE Matching: RO4350B and FR-4 have different coefficients of thermal expansion (Cte). Designs must consider stack-up symmetry to prevent board warpage after lamination.

• Reflow Control: Precise lamination parameters are needed to prevent dielectric layer slippage during pressing.

• Via Reliability: Drilling through two different materials requires optimized spindle speeds and feed rates. UGPCB ensures smooth hole walls and strong plated copper adhesion.

6. Production Process Flow

UGPCB utilizes industry-leading automated lines to ensure high-quality Hybrid PCB delivery:

1. Incoming Material Inspection: Strictly verify raw materials: Rogers RO4350B (0.254mm thickness, Dk=3.48) and FR-4.

2. Inner Layer Imaging: Create inner layer circuits (L2/L3) with 0.5OZ copper.

3. Oxide Treatment & Lay-Up: Apply brown oxide treatment to RO4350B and FR-4 cores. Stack as “2 layers RO4350B + 2 layers FR4” with prepreg.

4. Vacuum Lamination: Use segmented temperature and pressure profiles to manage stress from differing CTEs, ensuring strong interlayer bonds.

5. Foraj: Employ high-precision CNC drills with parameters tuned for hybrid materials.

6. Plating Through Hole (PTH) & Electroplating: Achieve interlayer connection, ultimately reaching outer layer copper thickness of 1OZ.

7. Outer Layer Imaging: Create outer layer circuits (L1/L4).

8. Masca de lipit & Surface Finish: Apply solder mask, then perform Aur de imersiune (De acord) Tratament de suprafață.

9. Routing & Electrical Test: Profile routing, electrical testing, and impedance sampling checks.

10. Inspecție finală & Ambalaj: Aoi inspection followed by manual re-check, then vacuum packaging for shipment.

7. Aplicații primare

With its stable 3.48 Dk and cost-effective hybrid construction, UGPCB’s board suits diverse applications:

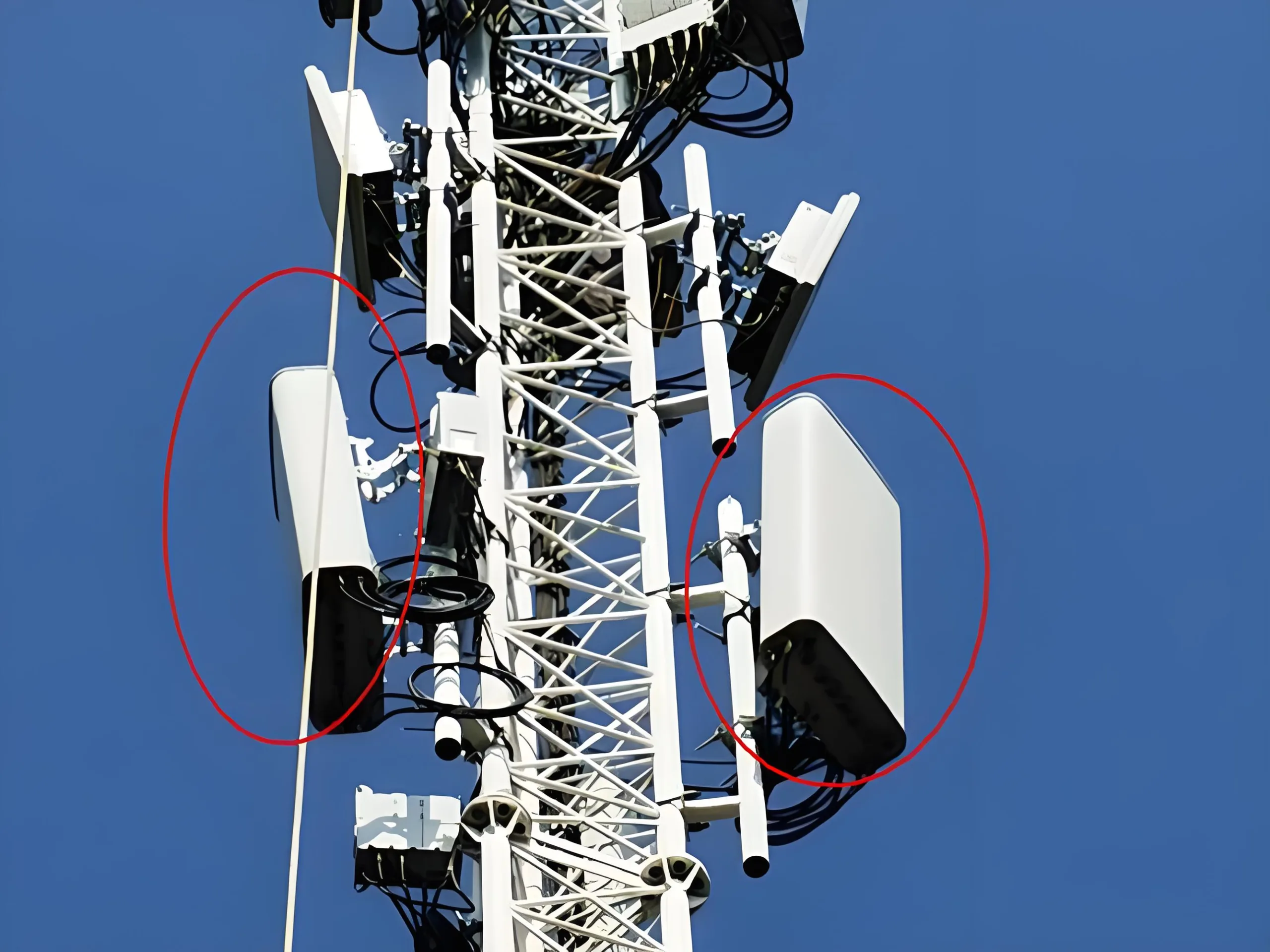

• Wireless Communication Systems: 5G base station antennas, RF front-end modules (Power Amplifiers), repeaters, filtre.

• Electronică auto: 77GHz automotive radar, millimeter-wave detection systems, V2X communication modules.

• Comunicări prin satelit: GPS receivers, satellite signal distributors.

• Control industrial: High-frequency data acquisition modules, microwave sensors.

• Test & Measurement: Core boards in high-frequency test equipment like network analyzers and signal generators.

8. De ce să alegeți UGPCB?

• Expert Hybrid Lamination: We possess extensive experience pressing Rogers materials with FR-4, successfully overcoming challenges like warpage, voids, and misregistration.

• Rigorous Quality System: Every dimension is monitored, from the thin 0.254mm dielectric to the final 1.0mm total thickness.

• Delivery & Cost Advantages: Optimized supply chain and efficient production lines allow UGPCB to offer competitive pricing and fast turnaround.

Get Your Quote and Samples Today

UGPCB provides not only standard-parameter Rogers RO4350B Hybrid PCBs but also custom solutions tailored to your specific needs. Whether for 5G infrastructure or precision automotive radar, we deliver the optimal PCB solution.

Contact UGPCB engineers and sent your Gerber files for a personalized quote. Let’s collaborate to achieve the highest performance design at the most reasonable cost.
