TG150 PCB Circuit Board Введение: Meeting the Thermal Challenge in Modern Electronics

In high-speed communications, автомобильный, аэрокосмический, and advanced industrial controls, electronic devices face increasingly harsh operating environments. Elevated temperatures can cause standard Подложки печатных плат (например, standard FR-4) to reach their glass transition, leading to softening, деформация, and critical performance loss, jeopardizing system reliability. Selecting a высокий ТГ печатная плата is essential for ensuring long-term stability in these demanding applications.

1. Обзор продукта: What is a TG150 PCB?

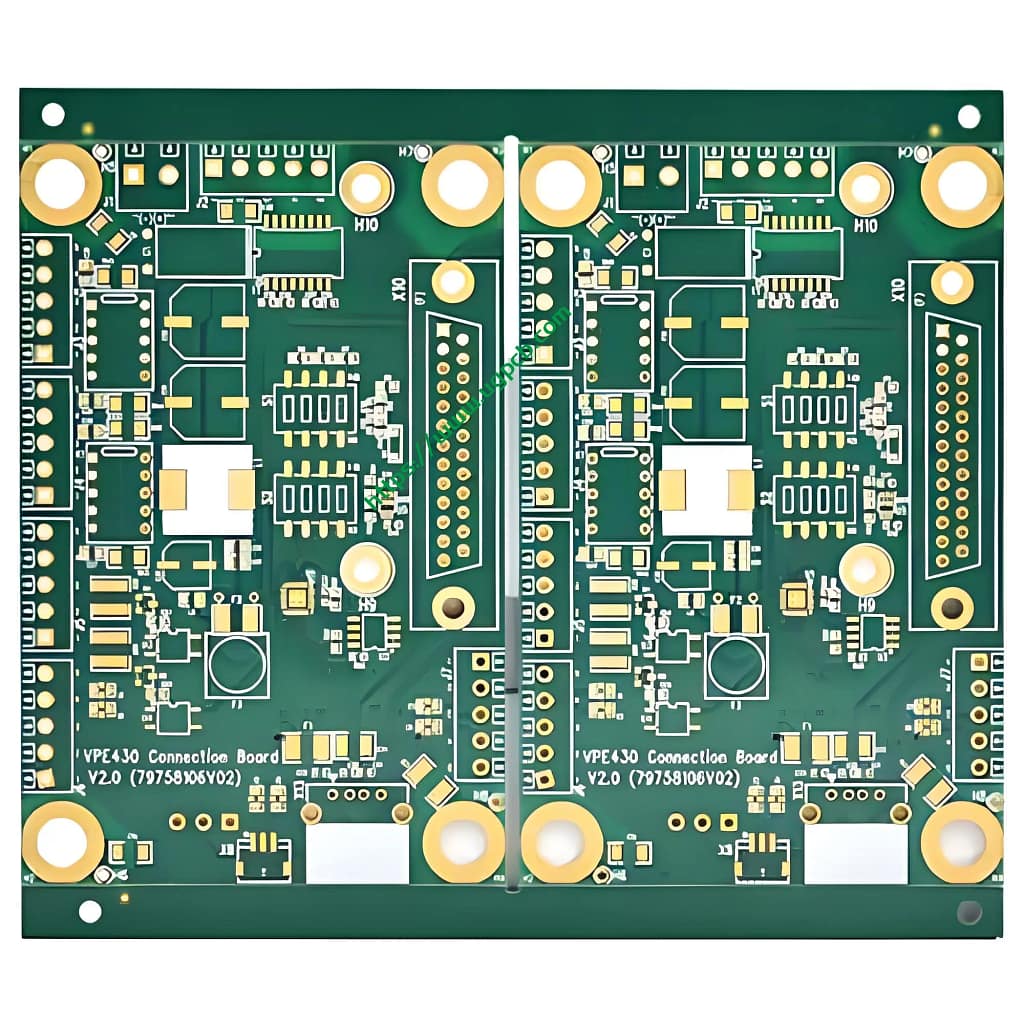

А TG150 PCB is a печатная плата fabricated using a laminate material with a glass transition temperature (Тг) of 150°C. The Tg is a crucial metric for a PCB substrate’s thermal endurance. Compared to common TG130 PCB laminates, TG150 material maintains superior physical rigidity and stable electrical properties under high temperatures. UGPCB 4-layer TG150 circuit board combines this high-performance material with an Погружение Золото (СОГЛАШАТЬСЯ) обработка поверхности and supports 0.08mm fine-line circuitry и 0.2mm micro-drilling, making it a high-reliability многослойная печатная плата solution for advanced applications.

2. Core Material and Enhanced Performance of TG150 PCB

• Базовый материал: A high-performance epoxy or modified FR-4 formulation, specially engineered to consistently achieve a Tg of 150°C or higher.

• Key Performance Advantages (против. TG130 PCBs):

  • Exceptional Thermal Stability: The increase from 130°C to 150°C Tg significantly enhances the board’s resistance to deformation at high temperatures, improving its ability to withstand high-temperature assembly processes like lead-free soldering.

  • Superior Moisture and Chemical Resistance: A denser molecular structure reduces moisture absorption in humid environments, minimizing losses in insulation resistance (IR) и целостность сигнала, while offering better resistance to chemical exposure.

  • Improved Mechanical Strength and Dimensional Stability: High Tg PCBs exhibit lower Z-axis expansion coefficients and stronger bond strength during thermal cycling, reducing risks like via cracking and delamination.

  • Stable Electrical Characteristics: Диэлектрическая проницаемость (Дк) и Коэффициент рассеяния (Дф) remain more stable at elevated operating temperatures, ensuring higher signal integrity for высокочастотные печатные платы.

3. Structure and Design Specifications of Our TG150 PCB

PCB Stack-up

This product is a standard 4-слой печатная плата. A typical stack-up is Сигнальный слой – Грунтовый самолет – Силовая плоскость – Сигнальный слой, providing a complete return path for high-speed signals and effective EMI control.

Key Design Capabilities & Технические характеристики

Minimum Trace Width/Space: 0.08мм / 0.1мм. This represents advanced fine-line Производство печатных плат capability, essential for routing high-density ICs (например, BGA packages).

Диаметр сверла: 0.2мм. Поддержка micro-via drilling, facilitating higher density interconnects and saving board space.

Поверхностная отделка: Погружение Золото (СОГЛАШАТЬСЯ). Provides a flat surface, excellent solderability, and long shelf life, ideal for fine-pitch components (например, ММФ, БГА).

4. Manufacturing Process and Quality Control

UGPCB TG150 PCB manufacturing process strictly adheres to international standards like IPC-6012 (Qualification and Performance Specification for Rigid PCBs). The process includes:
Material Preparation → Inner Layer Imaging → Etching → Lamination → Drilling (0.2мм) → Desmear & Plating → Outer Layer Imaging → Pattern Plating → Etching → Solder Mask Application → ENIG Surface Finish → Routing → Electrical Testing → Final Inspection.
At each stage, we employ advanced equipment (например, LDI imaging, AOI Inspection) and rigorous reliability testing (например, тепловое напряжение, ionic contamination) to ensure the quality of every high-Tg circuit board.

5. Product Classification and Typical Applications

1. Technical Classification:

   • By Tg: Mid-High Tg PCB (Tg ≥ 150°C).

   • По количеству слоев: Многослойная печатная плата (4-Layer Board).

   • По технологиям: Precision PCB (ИЧР-ready capability).

   • By Finish: ENIG PCB, Fine-Line PCB.

2. Ideal Application Scenarios:

   • Автомобильная электроника: Блоки управления двигателем (КРЫШКА), информационно -развлекательные системы, power management modules – requiring tolerance under-hood temperatures.

   • Telecommunications Equipment: 5G base station PAs, optical modules, network switches – where high power generates sustained heat.

   • Промышленный контроль: Сервоприводы, PLCs, industrial PCs – for reliable operation in hot factory environments.

   • Power Electronics: High-power switch-mode power supplies (ИМПС), inverters – where power components generate significant heat.

   • Аэрокосмическая промышленность & Оборона: Electronic systems with extreme demands for reliability and environmental resilience.

6. Why Choose UGPCB for Your TG150 PCBs?

• Сертифицированные материалы: We use verified, traceable TG150 PCB laminates from reputable suppliers.

• Точное производство: Our expertise in multilayer PCB fabrication и ENIG processing ensures high yield for 0.08mm fine-line designs.

• Guaranteed Specifications: All technical parameters (Tg 150°C, 0.2mm drills) are rigorously validated against datasheets.

• Сквозная поддержка: We provide full technical support from дизайн печатной платы обзор и контроль импеданса to rapid prototyping and volume production.

7. Принять меры: Secure Your Design with a Robust Foundation

Don’t let thermal limitations hinder your product innovation. Choosing UGPCB’s high-reliability TG150 PCB means investing in exceptional stability, долговечность, и производительность.

Призыв к действию

*(Image Suggestion: High-quality close-up photo of a populated TG150 PCB used in a telecom orautomotive application.)*
Alt Tag: High-density assembled 4-layer TG150 PCB with ENIG finish for automotive or telecom applications

Is your next project facing thermal reliability challenges?
Do you need a PCB that can withstand rigorous environmental stress?

Contact the UGPCB expert team today!
[Click here to Get a Free Quote for TG150 PCBs]
[Upload Your Gerber Files for a 24-Hour Design Review]

Let our expertise in high-performance Производство печатных плат power your success.
