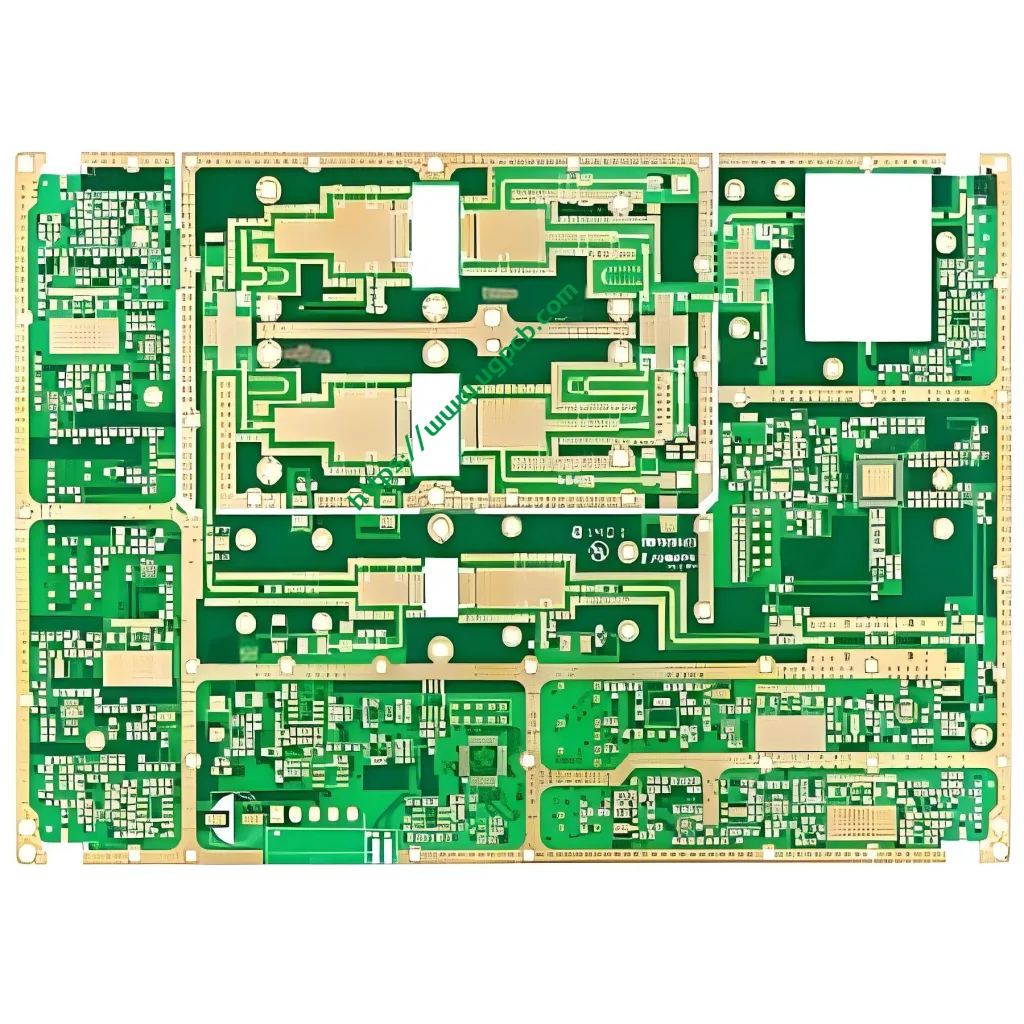

Rogers RO4350B Hybrid PCB

Specialized RF PCB Manufacturer in China

UGPCB has specialized in the manufacture of RF PCBs in China for over 17 Jahre. We understand the significant impact of appropriate RF materials on board performance. Parameters like RF microwave energy levels, Betriebsfrequenz, Betriebstemperaturbereich, aktuell, and voltage are crucial when selecting suitable materials for high-frequency PCB fabrication. Familiarizing ourselves with these RF PCB materials is part of our expertise. Check the following material listing for reference. We maintain sufficient stock to ensure prompt delivery.

RF/Microwave PCB Material

Rogers: RO4350B, RO3003, RO4003, RO3006, RT / Duroid 5880, RT5870, usw.
Arlon, Isola, Taconisch, PTFE F4BM, Teflonmaterial.

Hybrid PCB Material (Gemischtes Dielektrikum / Laminieren)

Rogers: RO4350B + FR4, RO4350B + IT180, RO4003C + FR4, RO3010 + FR4, RO3003 + FR4, RO3010 + FR4, usw.

RF -Mikrowellen -PCB -Anwendungen

RF Microwave PCBs are utilized in various fields such as Consumer Electronics, Militär/Raum, Hohe Leistung, Medizinisch, Automobil, and Industrial, unter anderem.

Oberflächen -Finish -Optionen

OSP
ZUSTIMMEN
Hasl Lf
Goldgepackter
Blitzgold
Eintauchen
Eintauchen Silber
Elektrolytisches Gold

Capacity and Features

Goldener Finger
Schweres Kupfer
Blind/buried via
Impendance control
Filled with resin
Kohlenstofftinte
Backdrill
Countersink
Tiefenbohrung
Half-plated hole
Pressfit hole
Schälbare blaue Maske
Schälbarer Soldstop
Dickes Kupfer
Oversize

Material and Layer Specifications

Material: Rogers RO4350B, RO3003, RO4003, RO3006, RT / Duroid 5880, RT5870, Arlon, Isola, Taconisch, PTFE F4BM, Teflonmaterial, usw.
Schicht: 2L, 4L, 6L, 8L, 10L, 12L, 14L, 16L, 18L, 20L, 22L, 24L, 26L, 28L, 30L
Dielektrizitätskonstante (DK): 2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15, 10.2
