Product Overview and Core Parameters

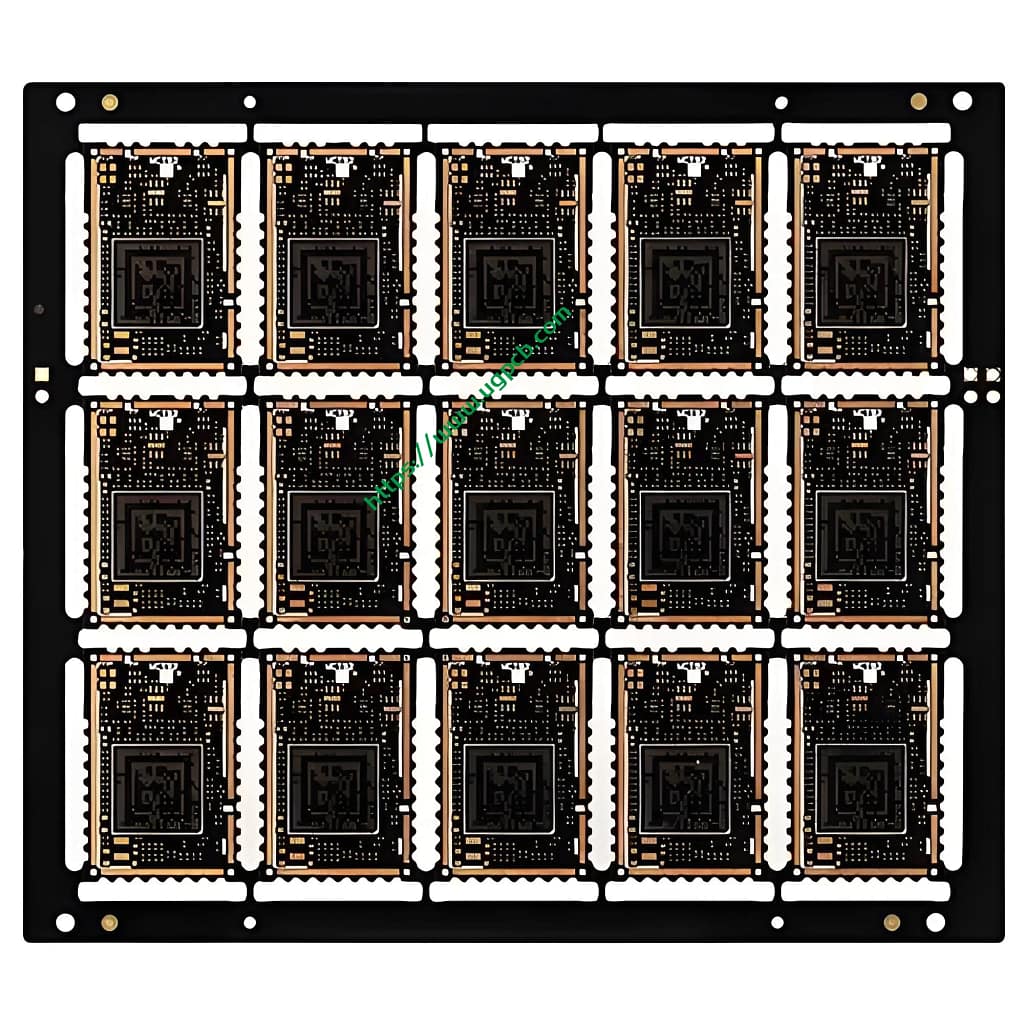

UGPCB builds the 6L 2+N+2 HDI WiFi Module PCB for WiFi 6, WiFi 6E, and WiFi 7 radio modules. It uses a 6-layer, 2+N+2 HDI stivuire. The board uses FR4 Tg170 material. Finished thickness is 0.8mm. Copper thickness is 1OZ. Minimum trace and space are 3mil/3mil. Minimum laser hole is 0.1mm. Surface finish is immersion gold plus OSP. Solder mask color options are black and white. Acest PCB HDI supports fine-pitch BGA fanout for WiFi RF chips.
| Parametru | Caietul de sarcini |
|---|---|
| Straturi | 6 straturi |
| Constructii | 2+N+2 HDI (2+2+2 build-up) |
| Material | FR4 Tg170 |
| Grosime terminată | 0.8mm |
| Grosime de cupru | 1Oz (35µm) |
| Culoare | Negru / Alb |
| Tratament de suprafață | Aur de imersiune + OSP |
| Min min / Spaţiu | 3mil / 3mil (about 0.076mm) |
| Min Laser Hole | 0.1mm |
| Aplicație | PCB modulul WiFi |
What Is an HDI PCB and a 2+N+2 Stackup?
HDI PCB means high-density interconnect printed circuit board. It uses microvias, vias ingropate, and fine traces. These features increase routing density. IPC-2226 defines HDI stackup types. A 2+N+2 structure is a two-level build-up. It adds two build-up layers on each side of the core. For a 6-layer board, the stack is L1-L2, L3-L4, and L5-L6. Laser microvias connect L1-L2, L2-L3, L4-L5, and L5-L6. Buried vias connect L3-L4. This construction supports 0.4mm to 0.5mm pitch BGA fanout.
Design Guidelines for WiFi Module PCB
RF Impedance Control
WiFi modules need stable 50Ω RF traces. Lățimea urmei, decalaj, Constanta dielectrică, and ground reference set the impedance. Texas Instruments recommends 50Ω RF traces and a solid ground reference. It also recommends a pi matching network at the antenna. Avoid 90-degree bends in RF traces. Use smooth curves instead. UGPCB controls 3mil/3mil traces and FR4 Tg170 proprietăți dielectrice. These features help maintain impedance consistency.
Material Selection and High-Frequency Performance
WiFi 6E adds the 6GHz band from 5.925GHz to 7.125GHz. Standard FR4 has a dissipation factor near 0.020. At 6GHz, this loss can reduce link budget. FR4 Tg170 offers better thermal stability than standard FR4. Its Tg is 170°C. It survives lead-free soldering above 260°C. For higher frequency needs, UGPCB can use Rogers RO4350B in a hybrid stackup. This option lowers RF loss while controlling cost.
BGA Fanout and Routing Density
Modern WiFi chips use fine-pitch BGA or QFN packages. Pitch can reach 0.4mm. The 2+N+2 HDI structure routes traces through laser microvias. This approach frees surface area. Ca urmare, it solves routing congestion on traditional through-hole PCBs.
Principiul de funcționare și performanța electrică
HDI PCB performance comes from its build-up structure. Microvias replace mechanical through holes. They shorten layer-to-layer paths. They also reduce parasitic inductance and capacitance. Lower parasitics help GHz RF signals. A 1OZ copper layer supports power and ground planes. IPC-2221 provides design charts for trace width and current capacity. The 3mil/3mil line width supports differential pairs and impedance-matched traces. This capability matters for WiFi 6E and WiFi 7 Proiecte PCB.
Production Process and Manufacturing
UGPCB uses multiple lamination, foraj cu laser, and plating steps.
- Inner-layer imaging and core lamination: We image and etch inner layers. We then vacuum laminate cores. We form buried vias before core lamination.
- First sequential lamination: We add one dielectric layer and copper foil on each side. We then laser-drill L2-L3 and L4-L5 microvias at 0.1mm.
- Second sequential lamination: We add another dielectric layer and copper foil. We then form L1-L2 and L5-L6 microvias.
- Outer-layer imaging and surface finish: We etch outer traces. We print black or white solder mask. We apply immersion gold plus OSP.
- Electrical test and inspection: Performam 100% test electric. We also run cross-section analysis and thermal stress tests.
Quality Control and Reliability Standards
IPC-6012F covers rigid PCB qualification and performance. It defines Class 1, Clasă 2, și Clasa 3. UGPCB recommends Class 2 for WiFi module PCB. For plated through holes, Clasă 2 requires 20µm average copper. Clasă 3 requires 25µm average copper. For industrial or automotive WiFi modules, Clasă 3 offers higher reliability. IPC-6012F also addresses stacked microvia reliability. UGPCB uses AOI after laser drilling. We verify copper thickness with cross sections. We run thermal stress tests at 288°C for 10 secunde. We also use Tdr to check 50Ω impedance within ±10%.
Applications and Market Value
Aplicații tipice
- Wifi 6, WiFi 6E, and WiFi 7 router modules
- IoT gateways for smart home and industrial IoT
- 5G CPE terminals
- Automotive WiFi hotspot modules
Tendințele pieței
Prismark reports strong HDI PCB growth in 2025. HDI output value grew 25.6% year over year. Prismark projects an 11.2% CAGR from 2024 la 2029. AI infrastructure and high-speed networks drive this growth. WiFi 6E and WiFi 7 adoption also increases demand for high-frequency HDI PCB. Manufacturers with 3mil/3mil lines and 0.1mm laser vias will gain an edge.
Why Choose UGPCB for Your HDI WiFi Module PCB?
- Proven HDI manufacturing: UGPCB produces 2+N+2 HDI PCB in volume. We achieve 3mil/3mil trace and space. We also achieve 0.1mm laser holes.
- Strict quality control: We build to IPC-6012 Class 2. We provide cross-section reports and test data.
- Optimized materials: FR4 Tg170 balances thermal stability and cost. We also offer Rogers hybrid stackups for higher frequencies.
- Suport de inginerie: We support stackup design, impedance simulation, și revizuirea DFM. This support shortens your development cycle.
- PCB assembly option: UGPCB also offers PCB services for WiFi modules. We can source components and assemble boards.
Contact UGPCB today for a quote. Our engineering team will reply within 24 ore. We will provide stackup advice and sample support.
