Aluminum Substrate Overview
Among all metal-core PCBs, aluminum-core PCBs are the most common type. The substrate consists of an aluminum core and standard FR4. It has a thermal cladding layer that effectively dissipates heat, cooling components and enhancing the overall performance of the product. În prezent, aluminum backplane PCBs are considered solutions for high-power and tight-tolerance applications.
Advantages of Aluminum Substrates
- Ecologic: Aluminum is non-toxic and recyclable. Using aluminum also benefits energy conservation since it is easy to assemble. For PCB suppliers, using this metal helps maintain the health of our planet.
- Disiparea căldurii: High temperatures can cause serious damage to electronic products, so using materials that help dissipate heat is wise. Aluminum can actually transfer heat away from critical parts, minimizing its adverse effects on the circuit board.
- Greater durability: Aluminum provides strength and durability that ceramic or fiberglass bases cannot offer. Aluminum is a robust substrate that reduces accidental breakage during manufacturing, manipulare, and everyday use.
- Ușoare: Aluminum is a very lightweight metal with incredible durability. Aluminum adds strength and elasticity without adding any extra weight.
UGPCB offers one-sided aluminum prototype PCB assembly services. This is a one-stop assembly factory with senior industry experience. Întrebările sunt binevenite.
Applications of Aluminum Substrates
- Audio equipment: input/output amplifiers, balanced amplifiers, amplificatoare audio, preamplificatoare, Amplificatoare de putere.
- Surse de alimentare: switching regulators, DC/AC converters, SW regulators, etc.
- Communication electronic devices: high-frequency amplifiers, filtering appliances, transmission circuits
- Echipamente de automatizare de birou: acționări cu motor, etc.
- Auto: electronic regulators, aprinderi, controlere de putere, etc.
- Calculatoare: CPU boards, floppy disk drives, surse de alimentare, etc.
- Module de putere: invertoare, relee cu stare solidă, rectifier bridges.

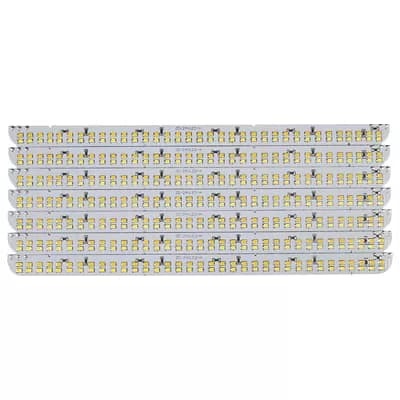

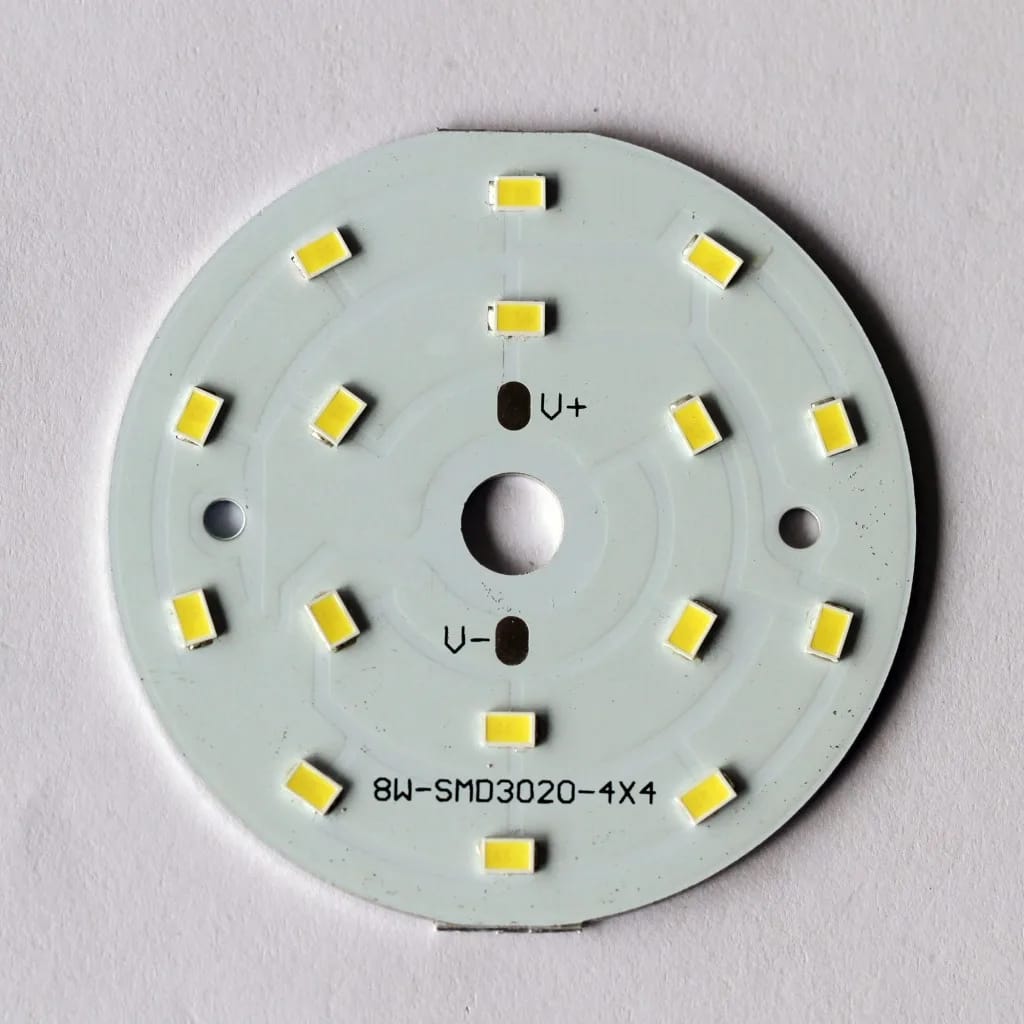

- Lighting and illumination: As advocates of energy-saving lights, various colorful energy-saving LED lights are very popular in the market, and the use of aluminum substrates for LED lights has also begun to be applied on a large scale.
