UGPCB 6‑Layer Communication High Frequency Hybrid PCB – Ro4350B+FR4 Mixed Dielectric RF Board

When digital and RF systems push beyond multiple GHz, conventional материалы для печатных плат hit bottlenecks in signal integrity, термическая стабильность, и контроль импеданса. UGPCB’s communication high frequency hybrid PCB solves these challenges.

1. Обзор продукта

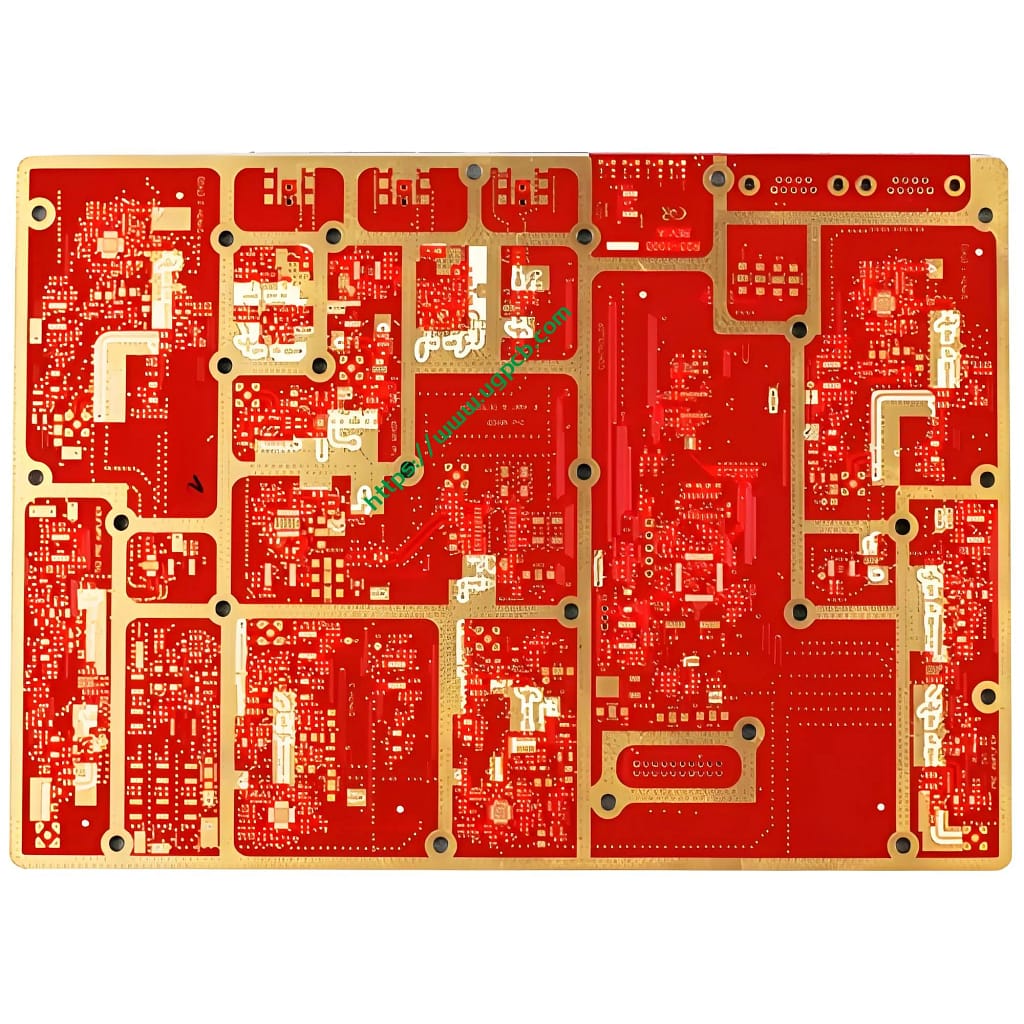

Название продукта: UGPCB 6‑Layer Communication High Frequency Hybrid PCB
Модель: UG‑HYBRID‑6L‑RF01
Ключевые спецификации: 6 слои / Ro4350B+FR4 mixed dielectric / 1.6мм толщина доски / 210mm × 280mm size / ЭНИГ обработка поверхности / minimum mechanical drilled hole 0.25mm
Positioning: A cost‑effective interconnect solution for RF front‑ends and high‑speed digital mixed circuits. By placing Rogers RO4350B high‑frequency laminate on the top RF signal layers and ФР‑4 on the bottom power/ground and low‑speed digital layers, this design balances signal integrity, термическая стабильность, and manufacturing cost.

2. Definition – What is a High Frequency Hybrid PCB?

А high frequency hybrid PCB (also called mixed dielectric multilayer board) uses two or more materials with different dielectric properties in one многослойная печатная плата.

This 6‑layer hybrid PCB has the following stackup:

Слой	Функция	Материал	Ключевой параметр
L1	RF signal	РО4350Б (0.2мм)	Dk=3.48±0.05@10GHz, DF = 0,0037
L2	RF ground	РО4350Б	Low‑loss reference plane
L3	High‑speed digital	RO4450™ bondply + ФР‑4	Transition, Сопоставление импеданса
L4	Power plane	ФР‑4	Высокий ТГ, бюджетный
L5	Digital signal	ФР‑4	Standard epoxy glass
16 -й	Digital ground	ФР‑4	Mechanical support and heat dissipation

“Mixed dielectric construction significantly reduces cost – using high‑frequency material only on the layers that carry RF signals, and FR‑4 for the rest.”

3. Рекомендации по проектированию

3.1 Critical Material Parameters

This product uses Роджерс RO4350B (ceramic‑filled hydrocarbon laminate) and FR‑4. Key RO4350B specifications (источник: Rogers data sheet):

Параметр	Типичное значение	Условие испытания	Reference
Process Dk	3.48±0,05	10ГГц	IPC‑TM‑650 2.5.5.5
Design Dk	3.66	10ГГц	Copper roughness correction
Коэффициент рассеяния (Дф)	0.0037	10ГГц	Low‑loss RF applications
Z‑axis CTE	32 ppm/℃	-55℃ to 288℃	Matches copper (17 ppm/℃)
Теплопроводность	0.69 W/m · k	50℃, ASTM D5470	Better than FR‑4
Воспламеняемость	UL 94 В‑0	UL standard	For active and high‑power RF

Data source: Rogers Corporation RO4350B™ Laminate Data Sheet

3.2 Контроль импеданса

Impedance control on a 6‑layer hybrid PCB is challenging because of the Dk discontinuity. Use a 3D electromagnetic solver and apply a copper roughness correction factor (typically 1.2–1.5). According to IPC‑2141A, characteristic impedance tolerance for RF PCBs should be within ±7%. UGPCB achieves ±5%.

3.3 Laminate Stackup Design (Total thickness 1.6mm)

• Вершина (L1‑L2): RO4350B 0.2mm × 2 = 0.4mm
• Middle (L3): RO4450™ prepreg 0.1mm + FR‑4 core 0.6mm = 0.7mm
• Нижний (L4‑L6): FR‑4 core + prepreg = 0.5mm
• Total: 1.6мм

Use a dynamic pressure curve during lamination to manage stress from CTE mismatch between RO4350B and FR‑4.

4. Принцип работы

Целостность сигнала: Dielectric loss dominates high‑frequency loss. The medium attenuation constant is:

${а}_{\mathrm{дюймовый}}\approx 27.3\times \frac{\text{√}{\mathrm{эн}}_{\mathrm{ведущий}}}{{\mathrm{<span\; class="tr\_"\; id="tr\_84"\; data-source=""\; data-orig="\lambda ">\lambda </span>}}_0}\times Та\mathrm{не}\mathrm{дюймовый}(\mathrm{дюймовый}Б\mathrm{/}\mathrm{ты}\mathrm{не}яТ\mathrm{<span\; class="tr\_"\; id="tr\_85"\; data-source=""\; data-orig="l">l</span>}\mathrm{эн}\mathrm{не}\mathrm{глин}Т\mathrm{час})$

Где:

• ${а}_{\mathrm{дюймовый}}$ = dielectric attenuation constant
• ${\mathrm{эн}}_{\mathrm{ведущий}}$ = относительная диэлектрическая проницаемость (design value)
• ${\mathrm{<span\; class="tr\_"\; id="tr\_88"\; data-source=""\; data-orig="\lambda ">\lambda </span>}}_0$ = free‑space wavelength
• $Та\mathrm{не}\mathrm{дюймовый}$ = dissipation factor (Дф)

RO4350B has Df = 0.0037 против. FR‑4’s 0.020. That reduces dielectric loss by about 80%, ensuring low‑loss transmission up to 30GHz.

Thermal‑mechanical stability: RO4350B’s Z‑axis CTE of 32 ppm/℃ matches copper (17 ppm/℃) far better than FR‑4 (50–70 ppm/℃). This improves plated through‑hole (ПТХ) reliability under thermal cycling. Tested per IPC‑TM‑650 2.6.7, the board survives 1000 cycles from -55℃ to 125℃ without delamination.

5. Основные приложения

UGPCB’s 6‑layer communication high frequency hybrid PCB serves five major areas:

5.1 5Базовые станции связи G (AAU/RRU)

• Frequency bands: 28GHz and 39GHz millimeter wave
• Requirement: Insertion loss < 0.31 dB/cm@40GHz, power handling >200 W/m²@38GHz
• Advantage: Hybrid construction cuts material cost by 30–40% vs. all‑high‑frequency material

5.2 77GHz/79GHz Automotive Radar

• Use cases: Autonomous driving 4D imaging radar, blind spot detection, adaptive cruise control
• Requirement: Range error <0.25m from -40℃ to 125℃, azimuth resolution 0.08°
• Производительность: IMS 2025 report shows phase consistency of ±0.8° over full temperature range for 77GHz hybrid radar modules

5.3 Satellite Communication Payloads (Ka‑band)

• Frequency range: 17.7 – 31 ГГц
• Advantage: 45% weight reduction vs. ceramic substrates while maintaining >85% efficiency

5.4 Fiber‑to‑the‑Home (FTTH) Оборудование

• Market trend: Global IPTV market from $189.25B (2025) to $421.53B (2030), Кагр 17.4%
• Влияние: High‑bandwidth, low‑latency PCBs are essential

5.5 High‑Speed Digital Mixed‑Signal Systems

• Fields: Medical imaging, industrial high‑frequency inspection, military communication terminals
• Requirement: Coexist 10+ Gbps digital signals with GHz‑range RF signals

6. Научная классификация (для IPC‑2221)

Classification Dimension	Категория	Basis
Material system	Mixed dielectric PCB	РО4350Б + ФР‑4
Frequency characteristic	РФ / Микроволновая плата	Up to 30GHz
Количество слоев	6‑layer multilayer board	6 проводящие слои
Technical difficulty	HDI hybrid lamination	Non‑expansion material matching
Приложение	Communication RF PCB	Телекоммуникационная инфраструктура
IPC performance class	IPC‑6012 Class 3	High‑reliability equipment

7. Materials in Detail

7.1 RO4350B High‑Frequency Laminate

• Glass‑reinforced hydrocarbon + керамический наполнитель
• Дк: 3.48±0.05@10GHz, temperature coefficient ~ -50 ppm/℃ (-50℃ to +150℃)
• Дф: 0.0037@10 ГГц
• Z‑axis CTE: 32 ppm/℃ – matches copper for PTH reliability
• Теплопроводность: 0.69 W/m · k (против. FR‑4 0.25–0.35)
• UL 94 В‑0 – suitable for active and high‑power RF designs
• Process compatibility: Same FR‑4 processing; no special pre‑treatment needed (unlike PTFE)

7.2 FR‑4 Epoxy Glass Laminate

• Woven glass fabric + эпоксидная смола
• Дк: 4.2–4.8 (1MHz–1GHz), Дф: 0.020–0.025
• Расходы: 1/5 к 1/10 of RO4350B

7.3 RO4450™ High‑Frequency Bondply

• Bonding layer between RO4350B and FR‑4
• Дк: 3.52±0.05@10GHz (gradient transition)
• Дф: 0.0040@10 ГГц

7.4 ENIG Surface Finish (Химическое никель, иммерсионное золото)

• Толщина никеля: 3–6μm (IPC‑4552 Class 2)
• Толщина золота: 0.05–0.10μm
• Преимущества: Припаяность, flatness, стойкость к окислению, fine‑pitch BGA assembly
• Стандартный: IPC‑4552

8. Спецификации производительности

8.1 Электрические характеристики

Параметр	Ценить	Метод испытания
Characteristic impedance (RF layers)	50Ω ±5% (настраиваемый)	IPC‑2141A
Дк (RF layers @10GHz)	3.48±0,05	IPC‑TM‑650 2.5.5.5
Insertion loss	0.31 dB/cm @40GHz	Microstrip line VNA
Dielectric strength	≥40 kV/mm	IPC‑TM‑650 2.5.6
Устойчивость к изоляции	>10⁹ Ω (normal condition)	IPC‑TM‑650 2.5.17
Withstanding voltage	1000 В постоянного тока, 60s no breakdown	IPC‑TM‑650 2.5.7

8.2 Механические характеристики

Параметр	Ценить	Метод испытания
Thickness tolerance	± 10%	IPC‑6012
Размерная стабильность	<0.3 mm/m	IPC‑TM‑650 2.2.4
Прочность на очистку (1Оз меди)	≥1.0 N/mm	IPC‑TM‑650 2.4.8
Flexural strength	≥350 MPa	IPC‑TM‑650 2.4.4
Pad pull‑off force	≥5.0 kg/cm²	IPC‑TM‑650 2.4.21

8.3 Тепловые характеристики

Параметр	Ценить	Метод испытания
Тг (FR‑4 area)	≥150℃ (TG150)	IPC‑TM‑650 2.4.25
Thermal stress	288℃, 10s × 5 цикл	IPC‑TM‑650 2.4.13
Термический велосипед	-55℃ ↔ 125℃, 1000 цикл, нет расслоения	IPC‑TM‑650 2.6.7
Lead‑free reflow	260℃, 5 цикл	IPC/JEDEC J‑STD‑020
Moisture sensitivity level	MSL 1	IPC/JEDEC J‑STD‑020

8.4 Reliability Certifications

• IPC‑6012 Class 3 – high‑reliability equipment
• IPC‑6018B – qualification for high‑frequency (Микроволновая печь) печатные платы
• UL 94 В‑0
• MIL‑PRF‑31032 – 1000 thermal cycles from -55℃ to 125℃

100% flying probe electrical test + АОИ. End‑product meets IPC‑A‑600 Class 3.

9. Структурные особенности

Asymmetric 6‑layer hybrid build:

• L1‑L2 (РО4350Б): RF front‑end (А, ЛНА, фильтры) – signal integrity critical zone
• L3 (переход): Impedance matching and signal layer change – isolates RF from high‑speed digital
• L4‑L6 (ФР‑4): Power management, цифровое управление, mechanical support – low‑cost conventional circuits

ENIG finish: Flat surface ensures consistent impedance control. Supports BGA, QFN, fine‑pitch packages. Gold layer protects copper and guarantees solderability after long storage.

Прецизионное сверление & ПТХ: Minimum mechanical hole diameter 0.25mm (HDI microvias down to 0.1mm available). Hole copper thickness ≥20μm (Класс МПК 3). Plasma treatment with different gas mixtures for RO4350B and FR‑4 layers.

10. Схема производственного процесса

18 key steps:

① IQC → ② Inner layer imaging (RF and digital separately) → ③ Brown oxide → ④ Pre‑lamination plasma activation → ⑤ Hybrid lay‑up → ⑥ High‑pressure lamination (dynamic pressure curve) → ⑦ X‑ray target drilling → ⑧ Mechanical drilling (0.25мм мин) → ⑨ Plasma desmear (dual cycle) → ⑩ Electroless copper → ⑪ Outer layer imaging → ⑫ Pattern plating (медь + олово) → ⑬ Outer layer etching (tin strip) → ⑭ AOI → ⑮ Solder mask → ⑯ ENIG → ⑰ Electrical test → ⑱ Final inspection/packaging

Critical process details:

• Pre‑lamination plasma (step 4): CF₄‑N₂‑O₂ for FR‑4; helium (He) for RO4350B
• Lamination curve (step 6): Dynamic pressure – FR‑4 cures first (~180℃), then pressure and temperature rise to >200℃ for RO4350B
• Бурение (step 8): Step feed and tool life management handle hardness difference
• Десмеар & ПТХ (steps 9‑10): Dual‑cycle process due to different chemical behaviors; hole copper ≥20μm

11. Competitive Advantages

Cost‑performance balance: All‑RO4350B 6‑layer material costs >$200/м². Hybrid uses RO4350B only on 25% of thickness →30‑40% material cost reduction.

Надежность: RO4350B Z‑axis CTE = 32 ppm/℃ matches copper (17 ppm/℃). Full FR‑4 has 50‑70 ppm/℃. Hybrid reduces PTH stress. Passes 1000 cycles -55℃ to 125℃ (IPC‑TM‑650 2.6.7).

Размерная стабильность: Low CTE reduces warpage, improves SMT yield.

Direction	RO4350B CTE	FR‑4 CTE (типичный)
X‑axis	10 ppm/℃	14 ppm/℃
Y‑axis	12 ppm/℃	16 ppm/℃
Z‑axis	32 ppm/℃	50‑70 ppm/℃

Vs. full PTFE (например, Роджерс RT/дуроид):

Особенность	RO4350B+FR‑4 hybrid	Full PTFE
Process compatibility	Standard FR‑4 line	Special equipment & treatment
PTH metallization	Стандартный	Sodium naphthalene or plasma
Размерная стабильность	Отличный (glass reinforced)	Бедный, flows
Расходы	30‑50% lower	Высокий

12. Краткое содержание & Inquiry Guidance

UGPCB’s 6‑layer communication high frequency hybrid PCB is the ideal interconnect for RF/digital mixed signal systems. It serves 5G base stations, satellite Ka‑band payloads, 77Автомобильный радар ГГц, and high‑speed digital applications. By placing RO4350B only on the critical RF layers, we achieve optimal performance at a significantly lower cost.

Key data recap:

✅ Dk = 3.48 ± 0.05 @10 ГГц (Rogers official)
✅ Df = 0.0037 @10 ГГц
✅ Z‑axis CTE = 32 ppm/℃ (matches copper)
✅ Insertion loss ≤ 0.31 dB/cm @40GHz (IPC‑6018B verified)
✅30‑40% material cost reduction против. all‑high‑frequency material
✅ Passes 1000 thermal cycles -55℃ ↔ 125℃

Limited‑time prototyping offer

📩 Get your custom quote and technical proposal

UGPCB offers a 7‑working‑day quick‑turn service for 4‑ to 10‑layer гибридные печатные платы. We provide free DFM analysis.

👉 Send your Gerber files and stackup design to our technical support email. We will reply with a technical assessment and precise quote within 4 часы.

УГКПБ – Your trusted hybrid high‑frequency PCB manufacturer. From prototype to volume production, we deliver one‑stop 6‑layer mixed dielectric solutions to accelerate your 5G and millimeter‑wave radar products.
