Black Color Single Side Aluminium PCB Material Composition
The Black Color Single Side Aluminium PCB is crafted from an aluminum base, renowned for its exceptional thermal conductivity and mechanical strength. This material choice ensures the PCB can efficiently dissipate heat, making it ideal for applications where heat management is crucial.
Performance Capabilities
This PCB model boasts a single-layer design with a finished thickness of 1.2mm and a copper thickness of 1OZ, providing a balance between durability and flexibility. The surface is treated with Lead-free HASL (Hot Air Solder Leveling), ensuring a smooth and solderable finish that complies with modern environmental standards. În plus, it has a thermal conductivity of 1.0w/m.k, making it highly efficient in transferring heat away from components.
Structural Design

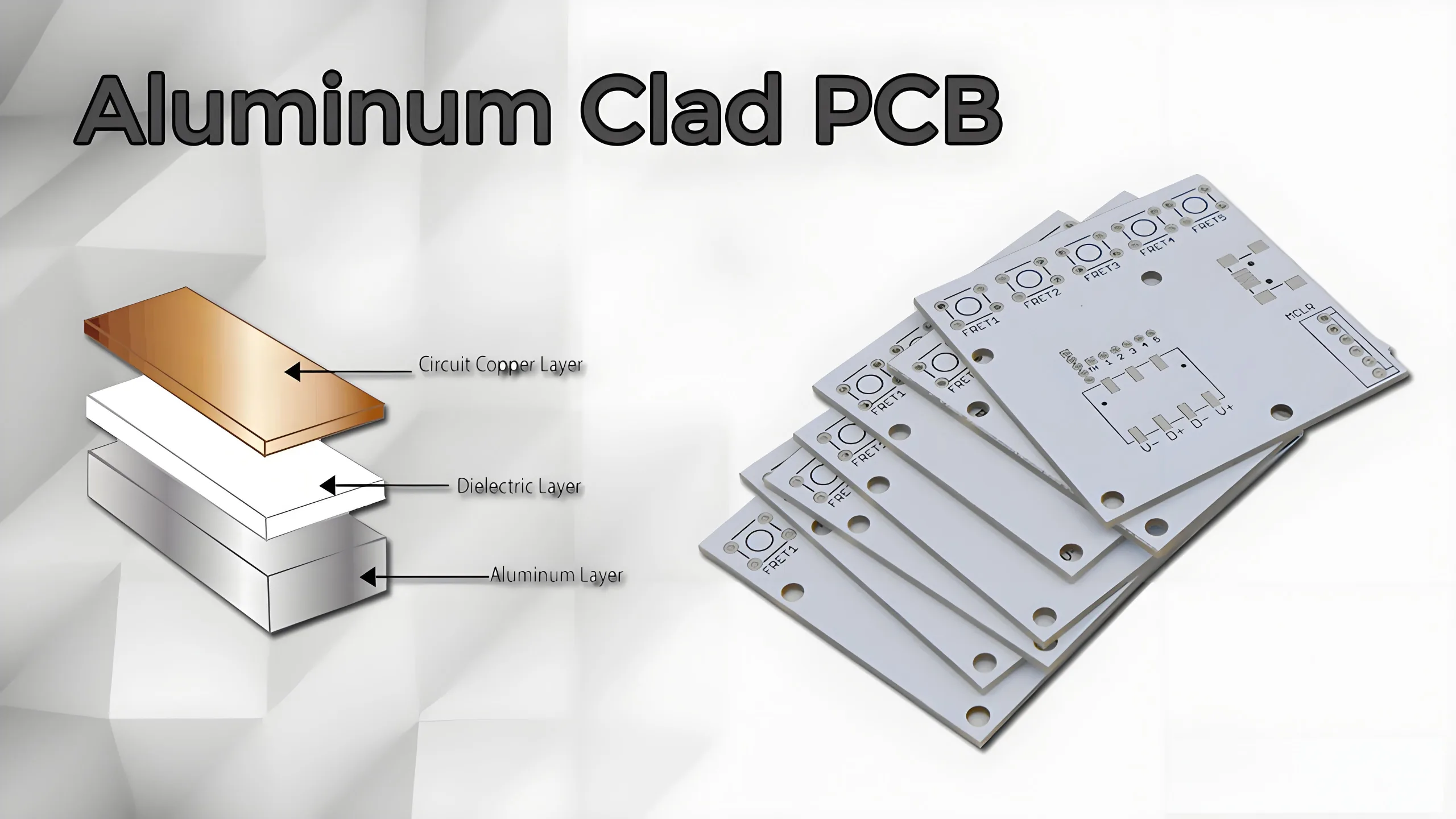

The PCB is available in black or white, offering aesthetic versatility to suit different design preferences. Structurally, it features a single-sided copper clad lamination on the aluminum base, allowing for straightforward circuit design and manufacturing processes.
Distinctive Characteristics
One of the standout features of this PCB is its aluminum base, which not only enhances thermal conductivity but also adds rigidity, reducing the risk of warping or bending during assembly or use. The Lead-free HASL surface treatment ensures compatibility with a wide range of electronic components and soldering techniques.
Flux de lucru pentru producție
Production begins with the preparation of the aluminum base, which undergoes precision milling to achieve the desired thickness. Următorul, a single layer of copper is clad onto the base, followed by the etching of the circuit pattern. The PCB then undergoes the Lead-free HASL surface treatment to ensure a uniform and solderable finish. After quality inspection, the PCB is cut to the specified dimensions and packaged for shipping.
Scenarii de aplicație
Due to its excellent thermal conductivity and durability, the Black Color Single Side Aluminium PCB is perfectly suited for applications like LED desk lamps. In these devices, it helps efficiently dissipate the heat generated by the LEDs, ensuring longer component lifespans and improved overall performance. Its single-layer design also simplifies the manufacturing process, reducing costs and time-to-market.
